Connects I/O Block and Cable Stocking Program
The Connects Stocking Program makes selecting cables and I/O blocks for power, sensors, and network simple and fast – all from a single source. Balluff I/O blocks and cables provide flexible and reliable connections with quick and easy integration and commissioning of your machines and systems.
The program’s cables and I/O blocks are polyurethane (PUR) coated, which offers the best overall performance based on a cost/benefits ratio, excelling in resistance to a wide range of materials, liquids, and other harsh or potentially harmful compounds. They fit the North American standard, seamlessly integrating into 85 to 95% of industrial applications. The universal connections allow for simple integration and eliminate the need to mix and match different cable types from different distributors, saving purchasing time, organization, and labor costs.
- Easy and fast selection
- Competitively priced
- Quick shipping
- In-stock
Selecting the Right Cable
As an engineering partner, systems integrator, and value-added distributor (ESV), we’re here to help you select cables for your machines. Work directly with our technical sales engineers to identify your machine’s needs and the best-fit cables, or follow the steps below to quickly and easily select the right cable on your own.
- Determine what is being connected: power, sensor, network
- Specify the power level and where the power is coming from
- Define the sensor type
- Specify the network type
- Identify how the panel will be connected
- Calculate the length of cable needed

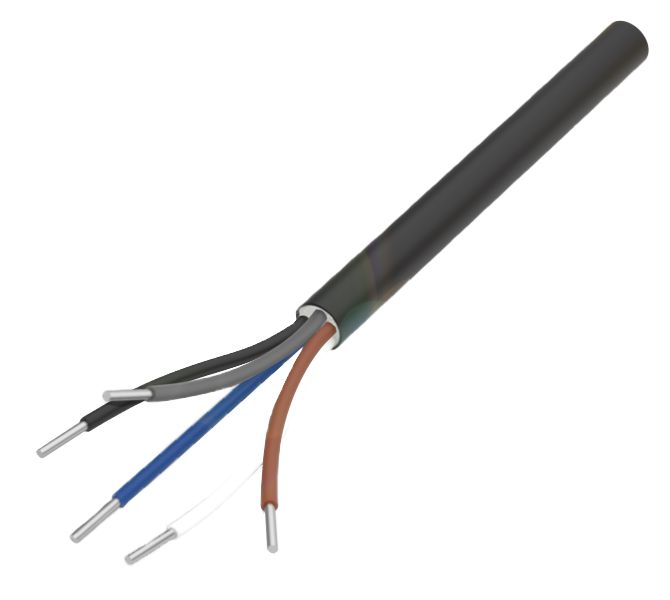

Color Coding

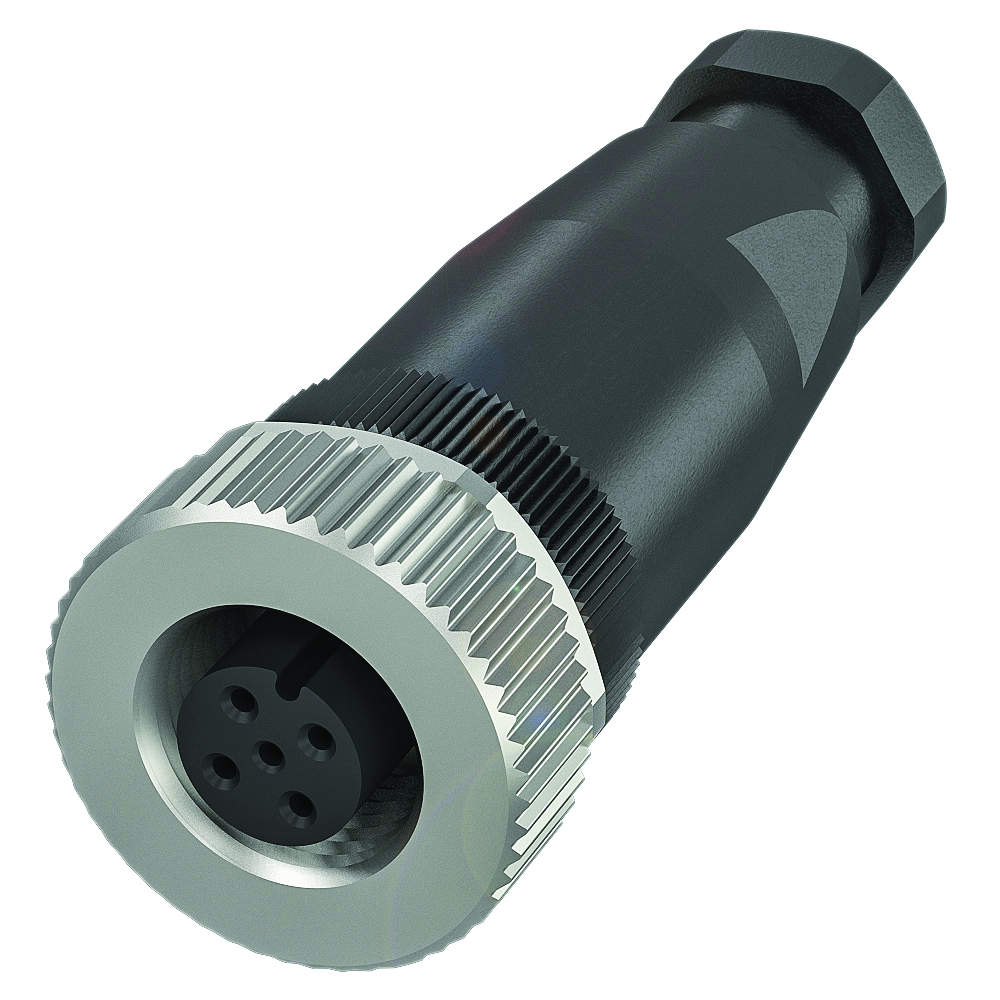

M12 4 & 5 Pin A Coded Connections
- Pin 1 – Brown – power
- Pin 2 – White – signal
- Pin 3 – Blue – power
- Pin 4 – Black – signal
- Pin 5 – Gray – ground or signal
Easy Selection Guide for Machine Builders

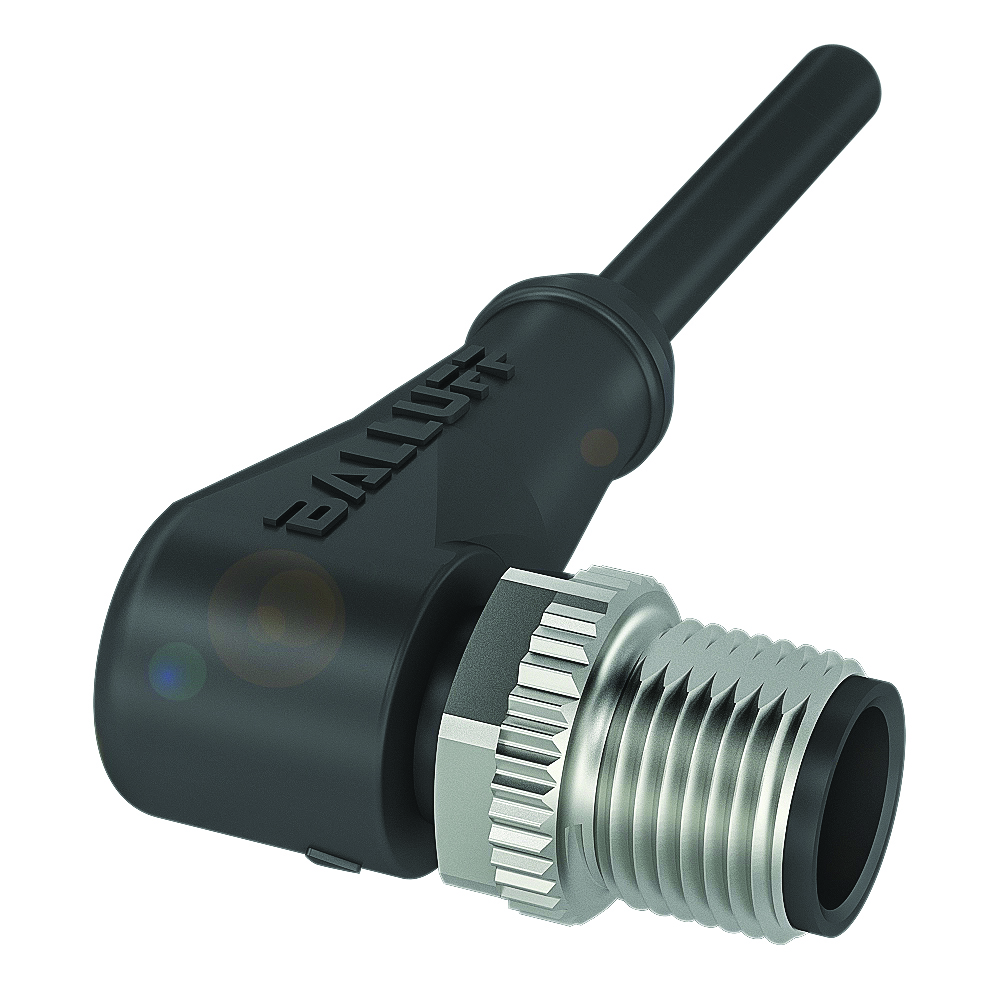

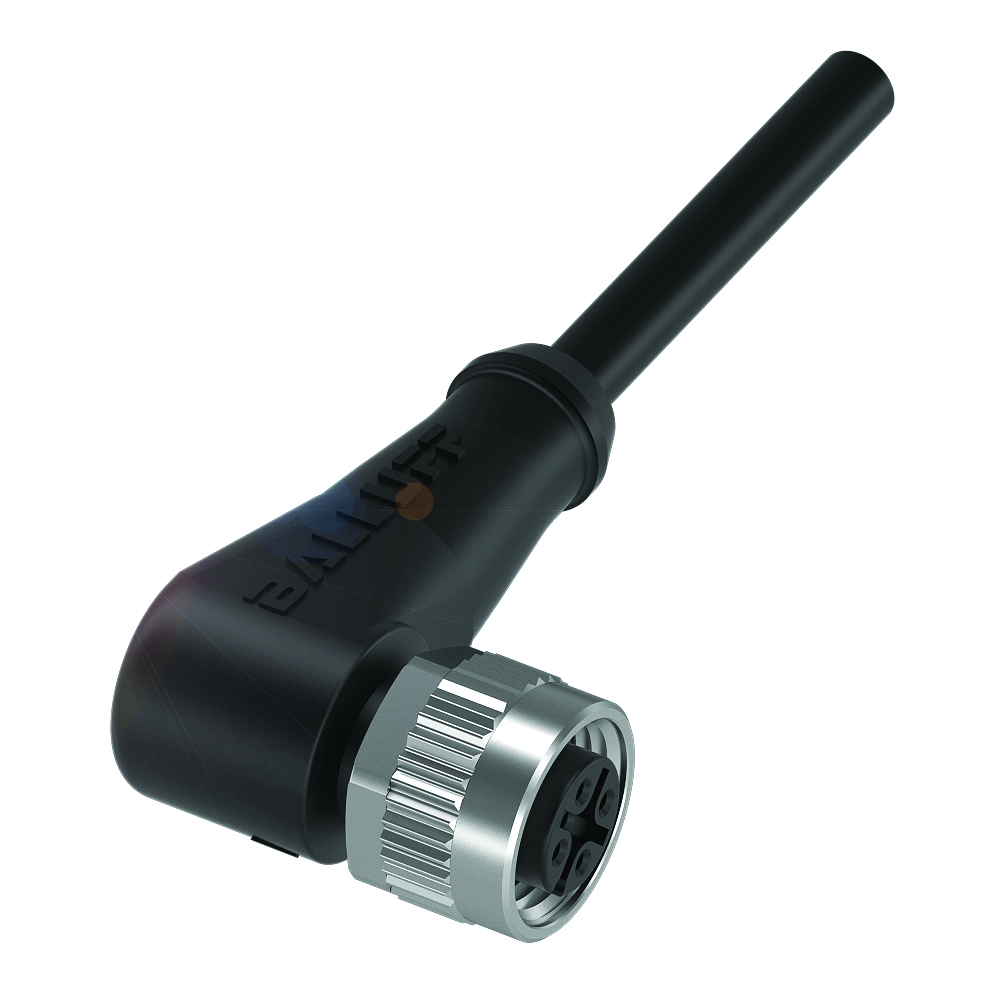

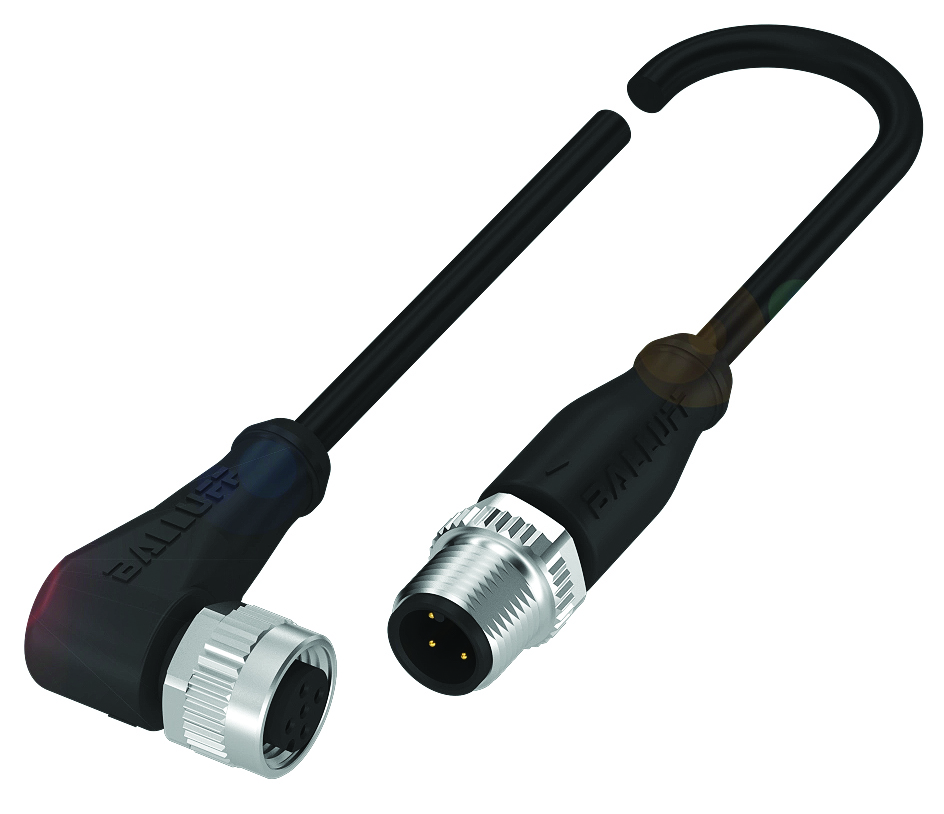

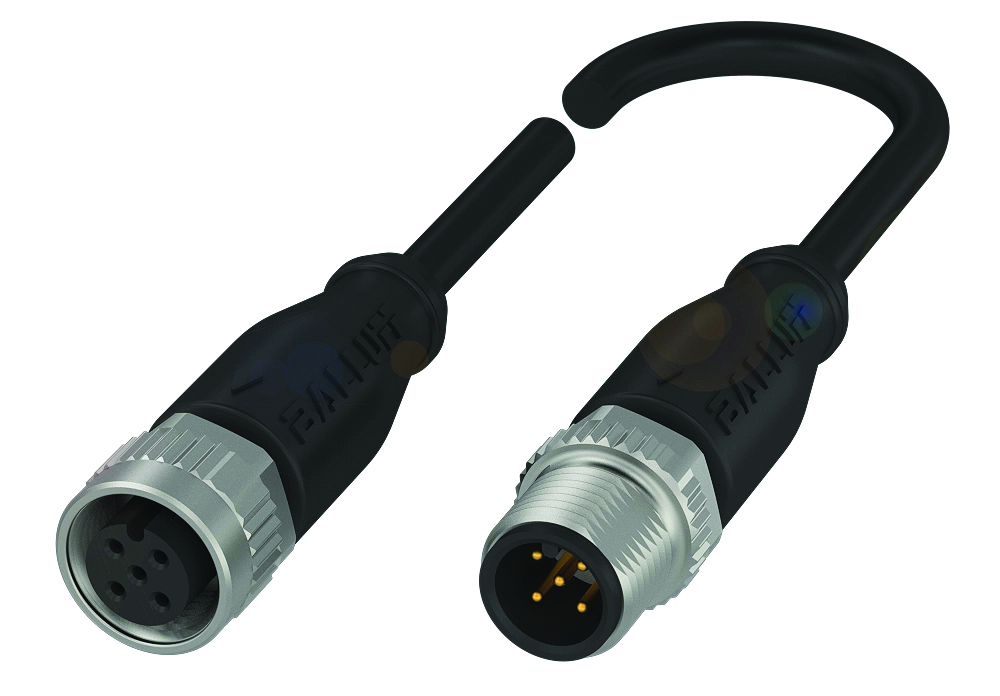

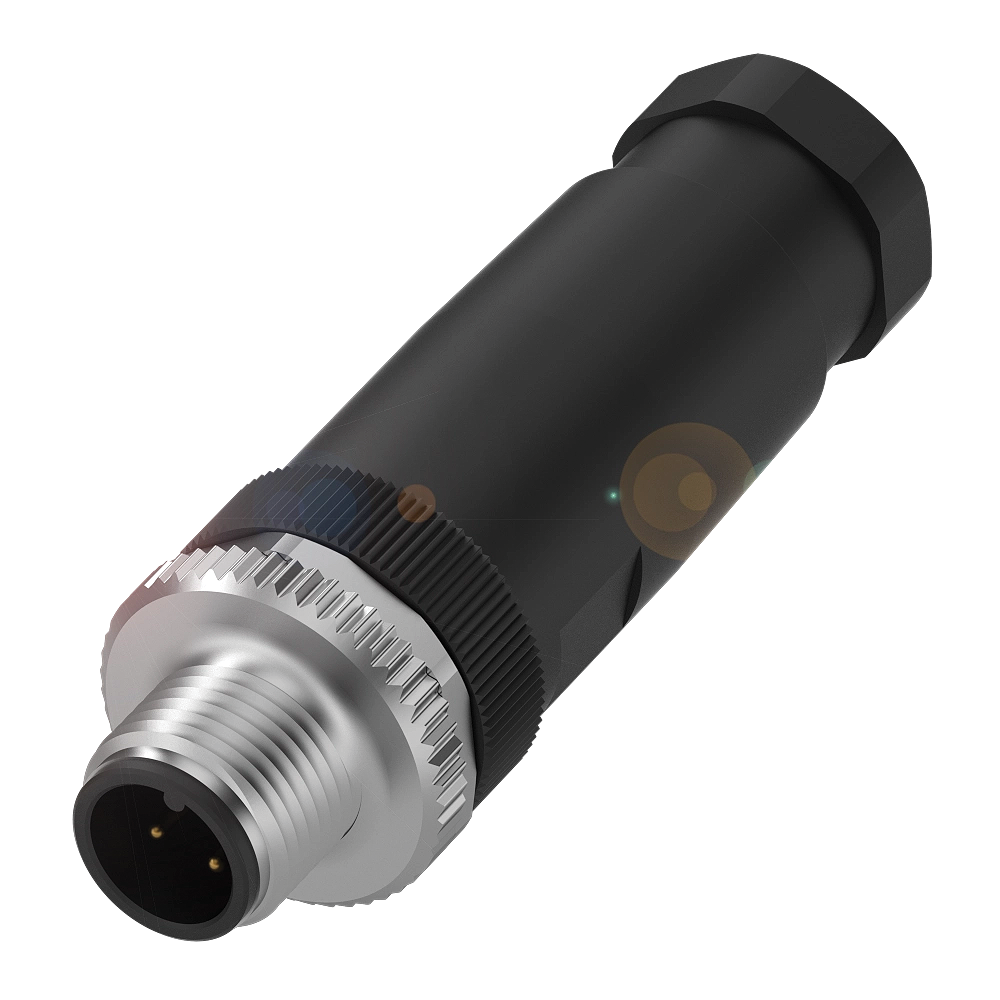

M12, 4 Pin, A Coded, PUR Cable, Black Jacket, 24AWG Wires
Most Common Usage: Sensors, Switches, IO Devices, IO Link
|
|
|
|
|
|
|
|

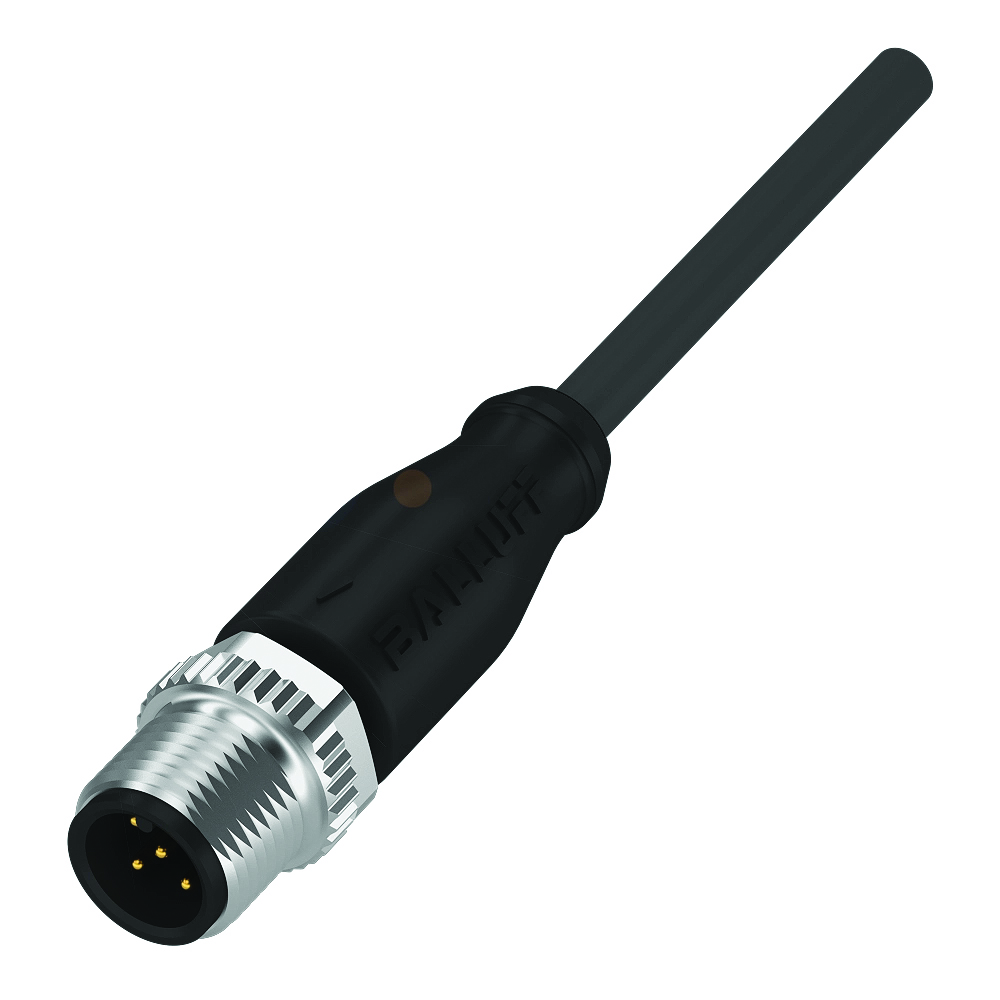

Most Common Usage: Soleniod Valves, Analog Devices, Safety Devices, Grounded Devices
|
|
|
|
|
|

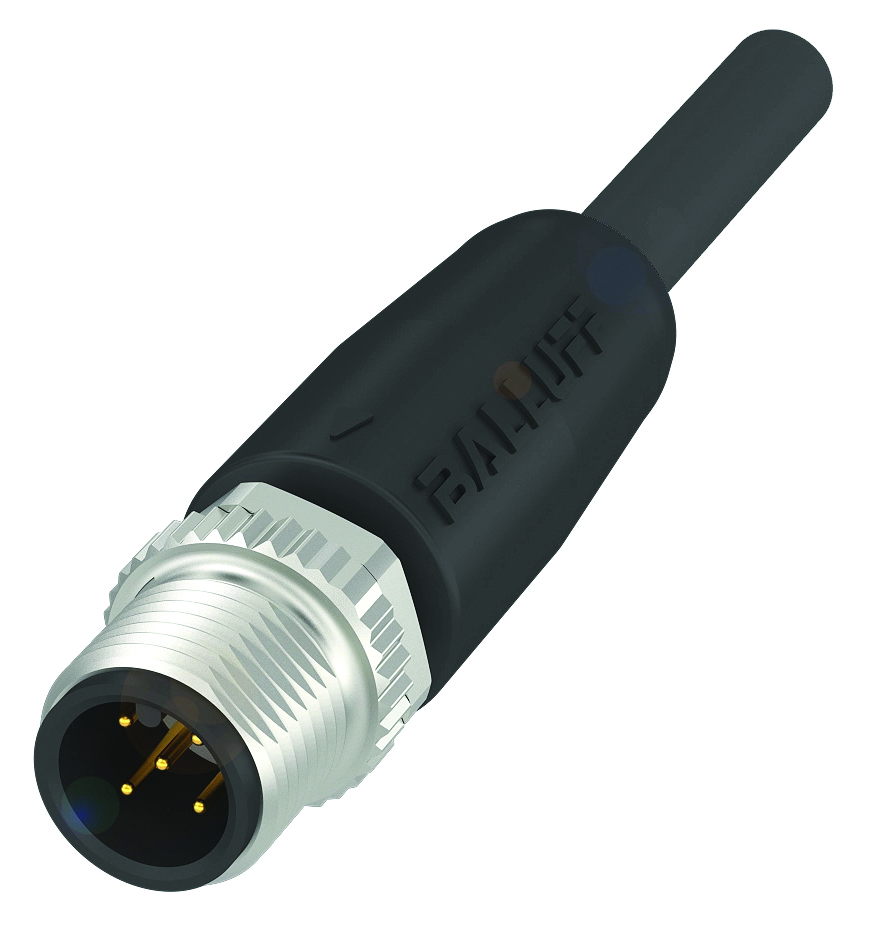

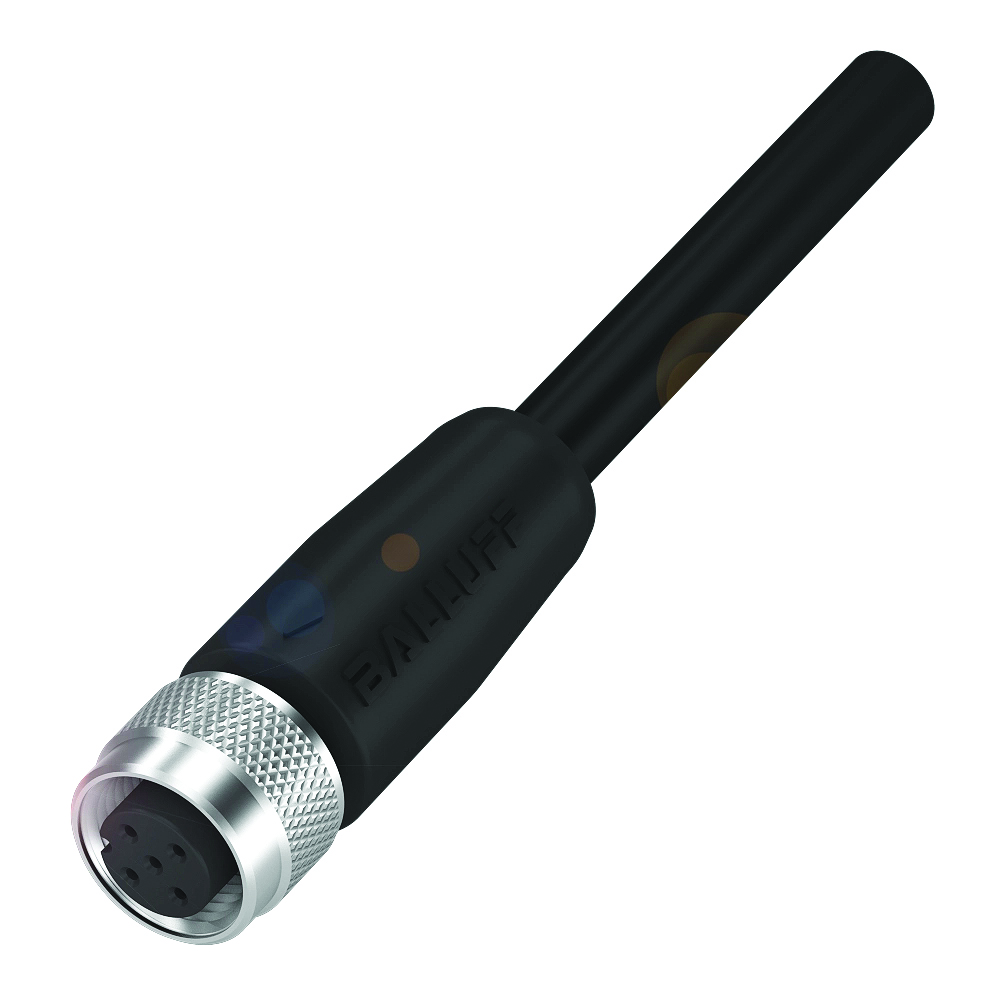

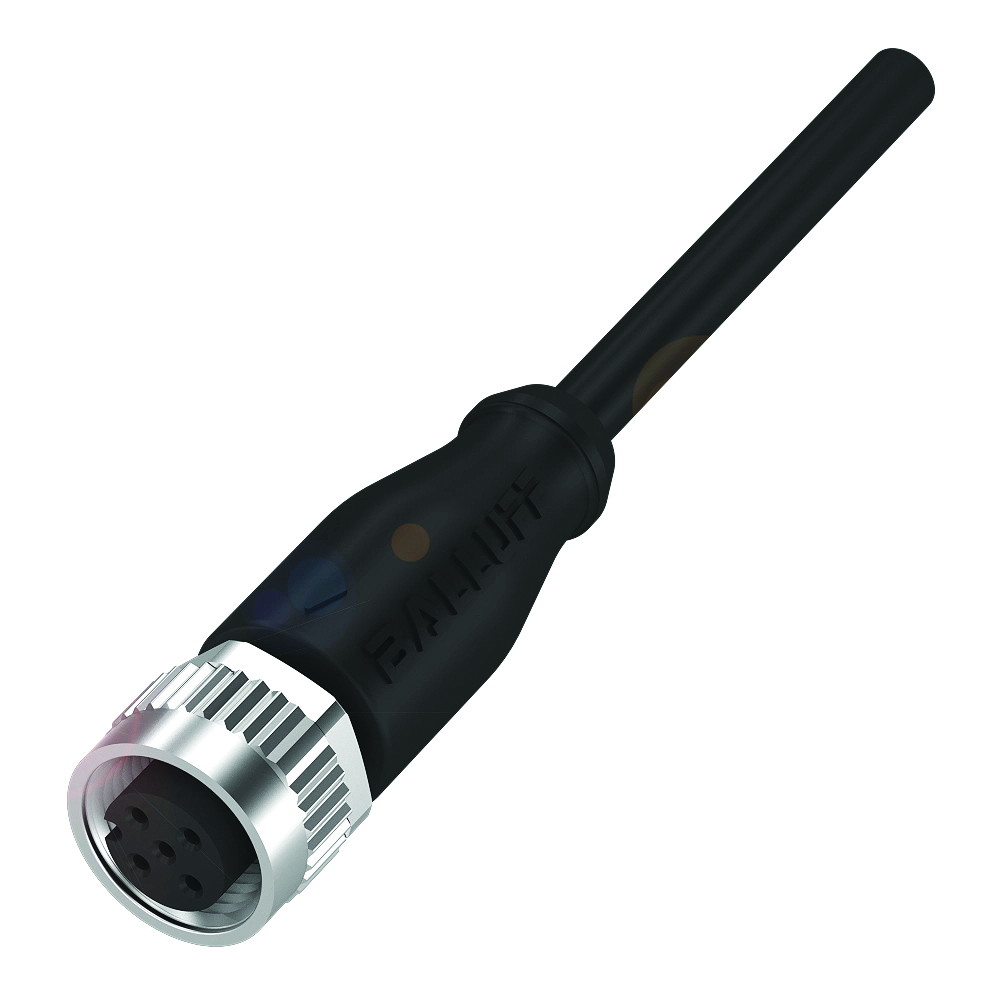

M12, 5 Pin, Shielded, A Coded, PUR Cable, Black Jacket, 24AWG Wires
Most Common Usage: Analog Devices “0-10V”

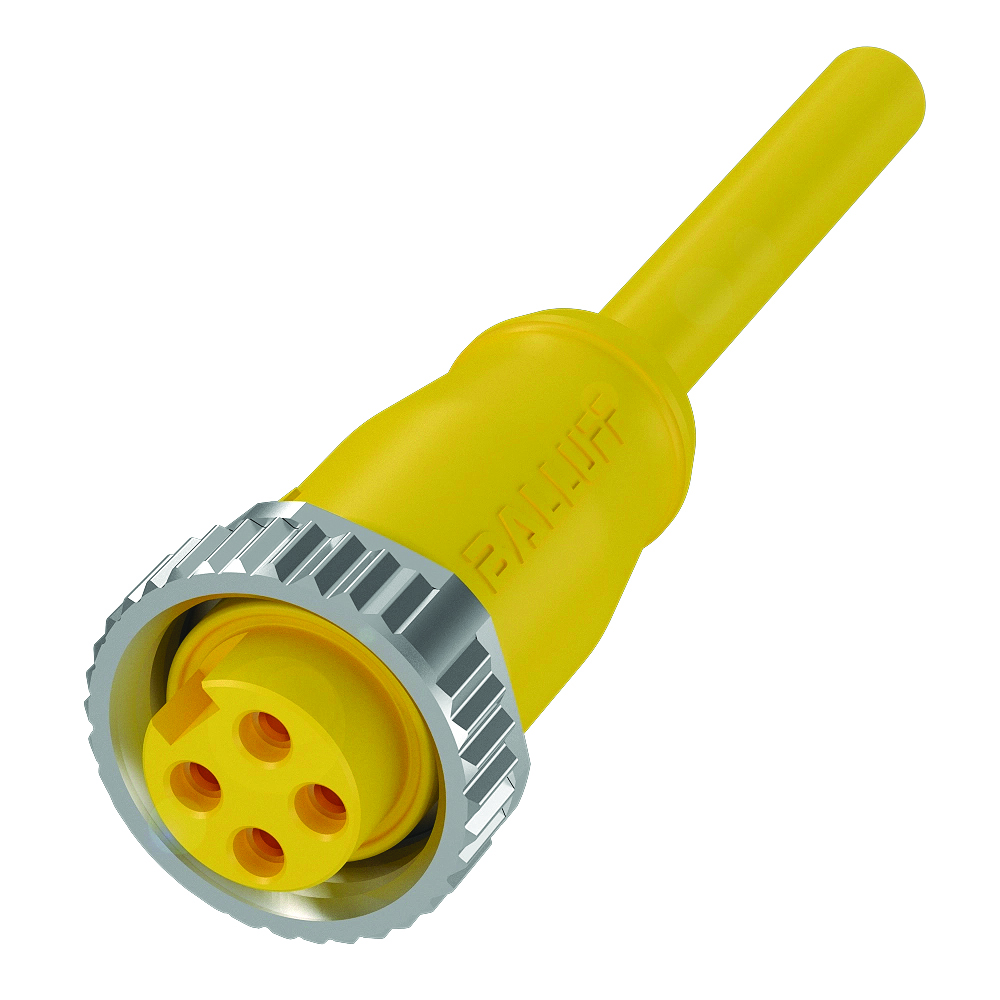

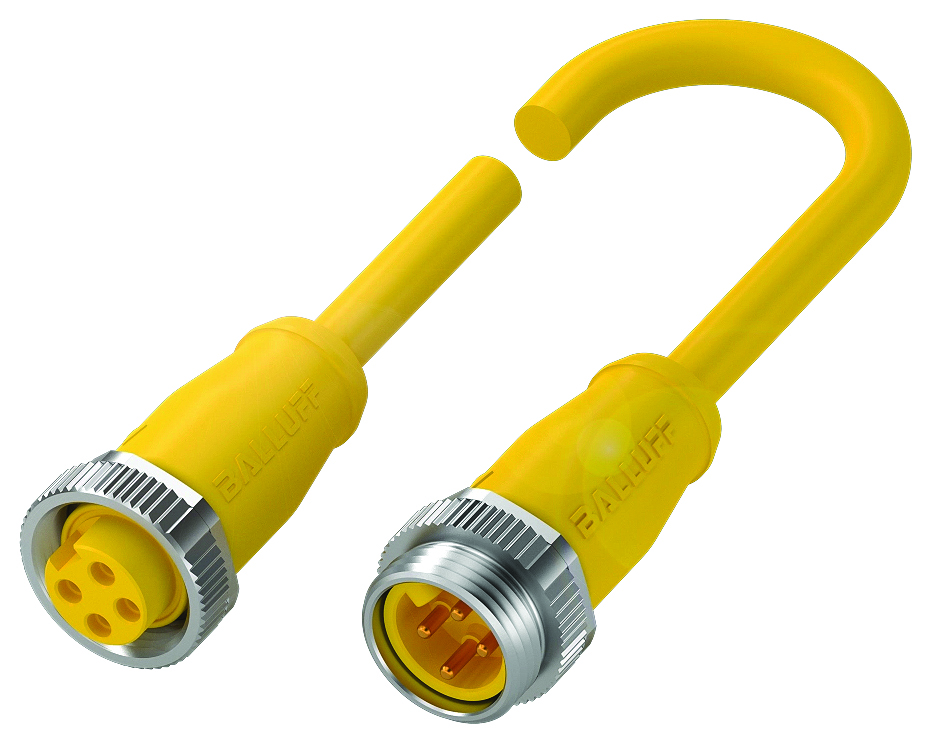

7/8”, 4 Pin, TPE Cable, Yellow Jacket, 16AWG Wires
Most Common Usage: 24VDC Power

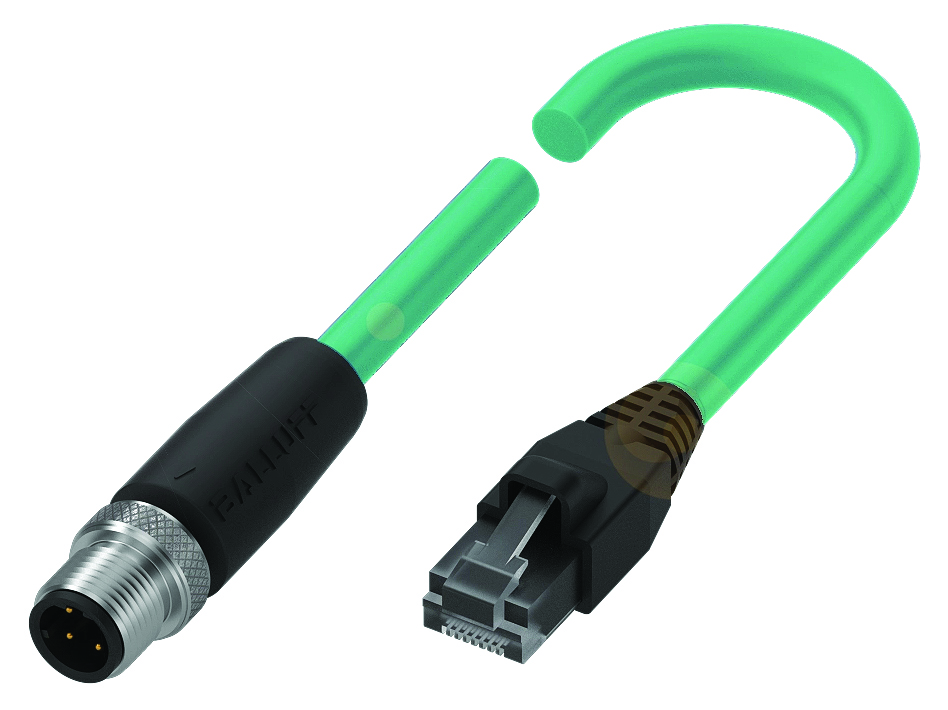

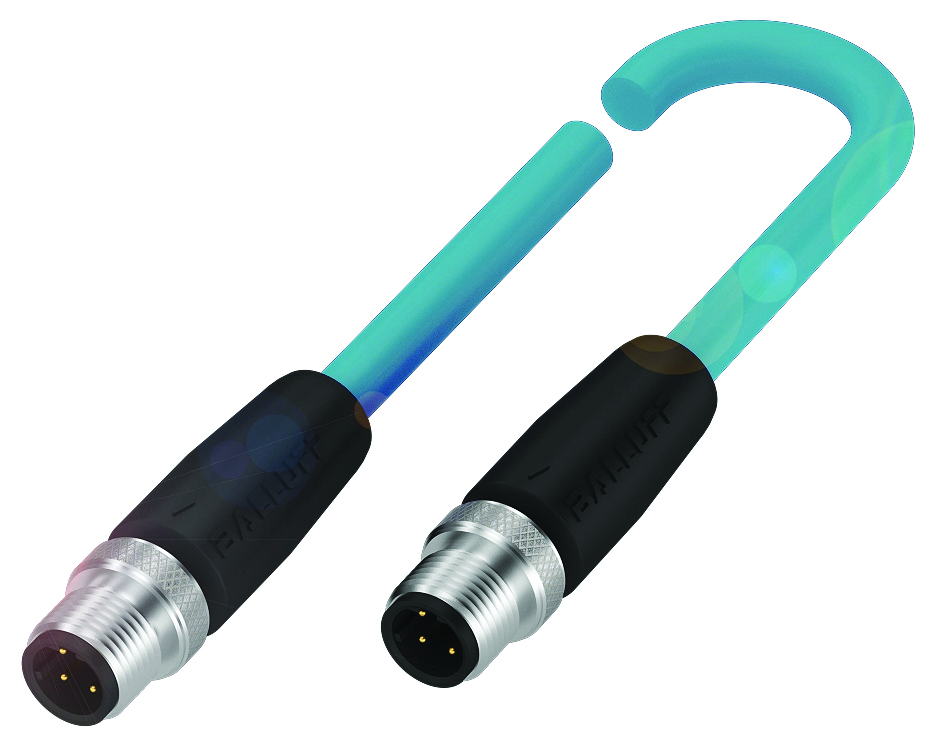

M12, 4 Pin, D Coded, TPE Cable, Teal Jacket
Most Common Usage: Fast Ethernet “Cat 5e” (Ethernet IP, Ethercat, Profinet)

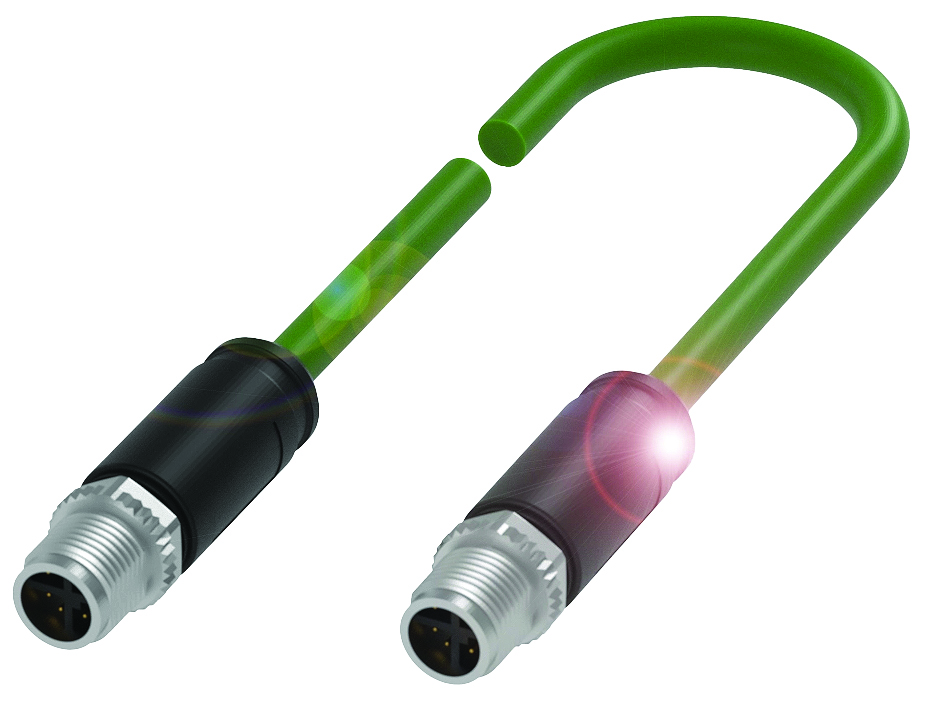

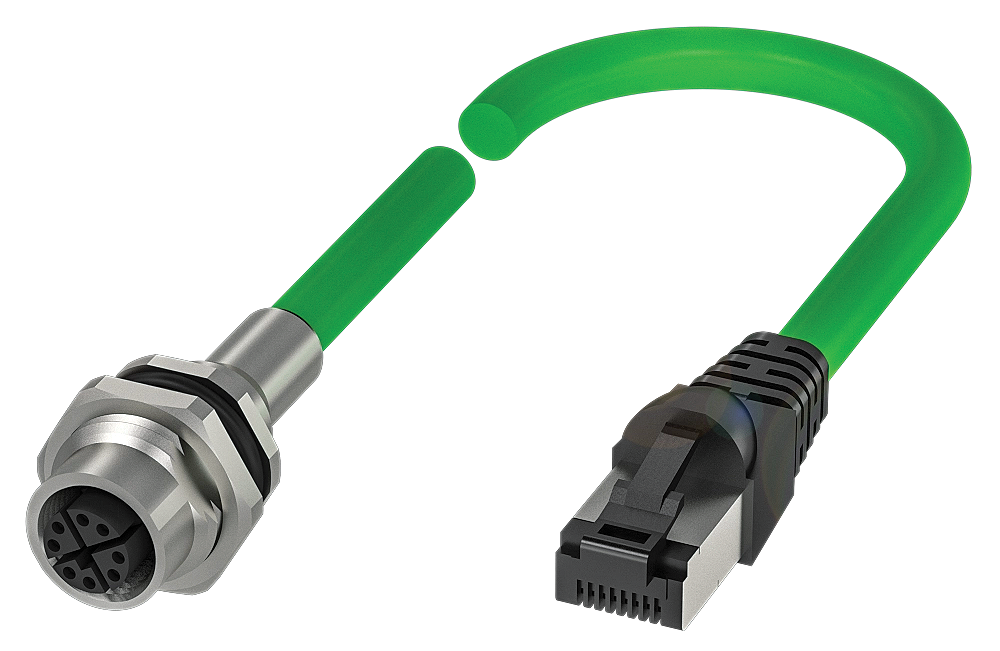

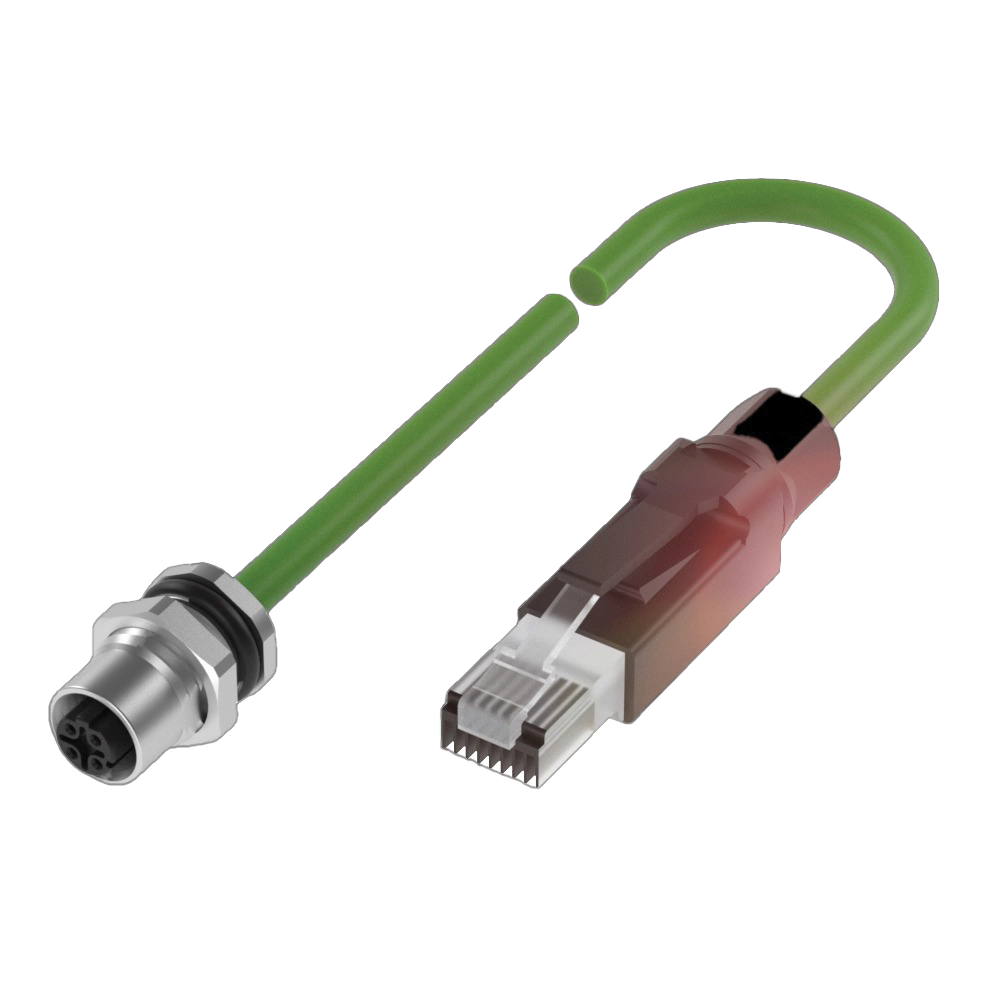

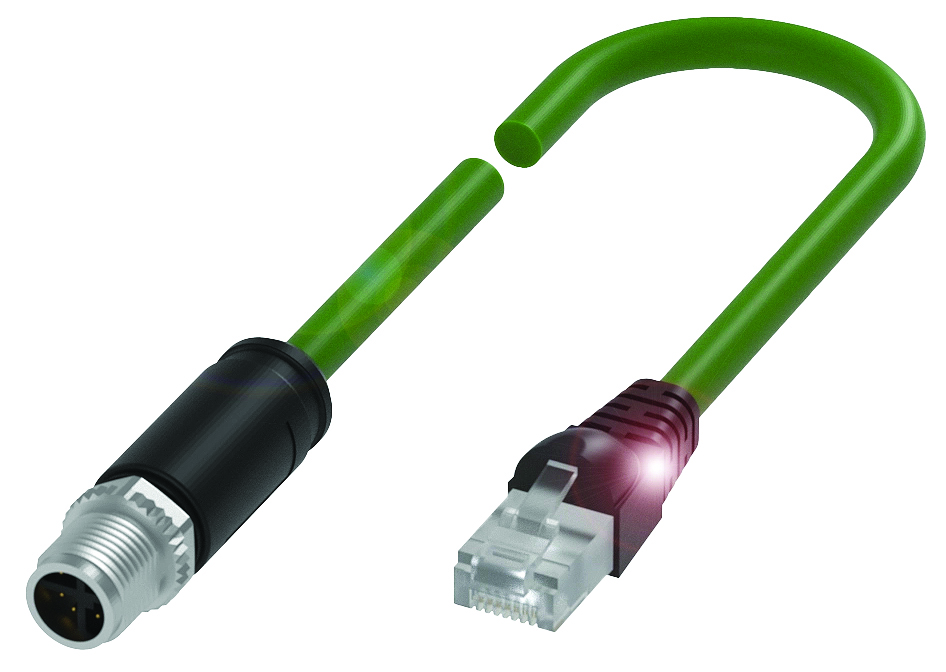

M12, 8 Pin, X Coded, PUR Cable, Green Jacket
Most Common Usage: Gigabit Ethernet “Cat 6” (Ethernet IP, Ethercat, Profinet)

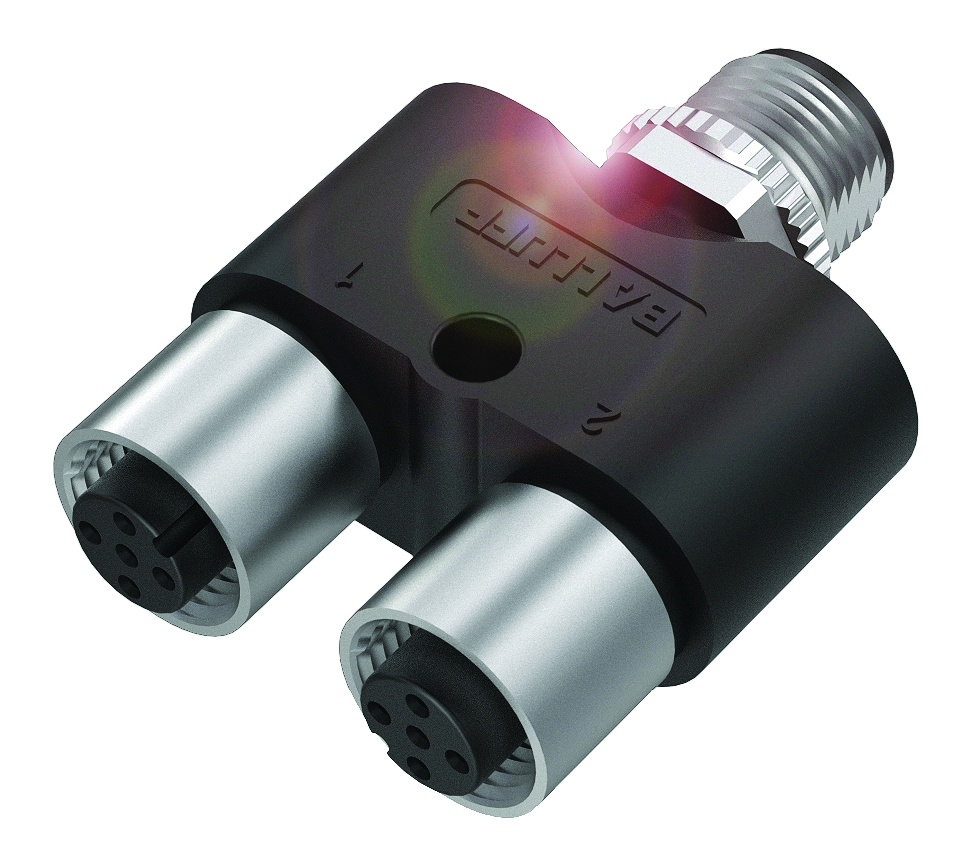

M12, 4 Pin, Tee
Most Common Usage: IO Block Single Port Tee
|

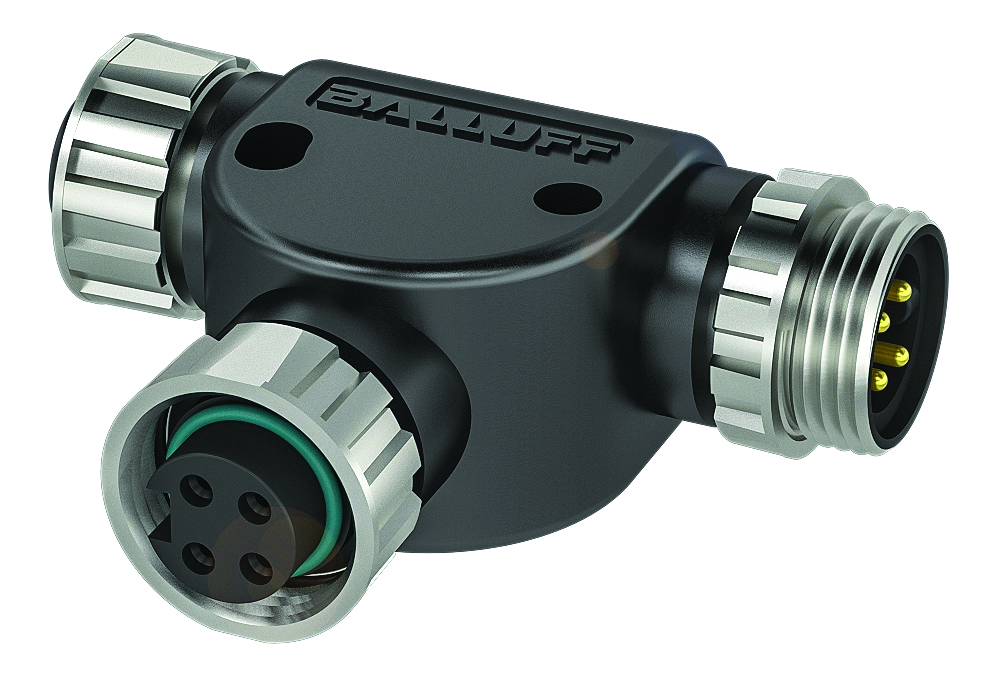

7/8”, 4 Pin, Tee
Most Common Usage: 24VDC Power
|

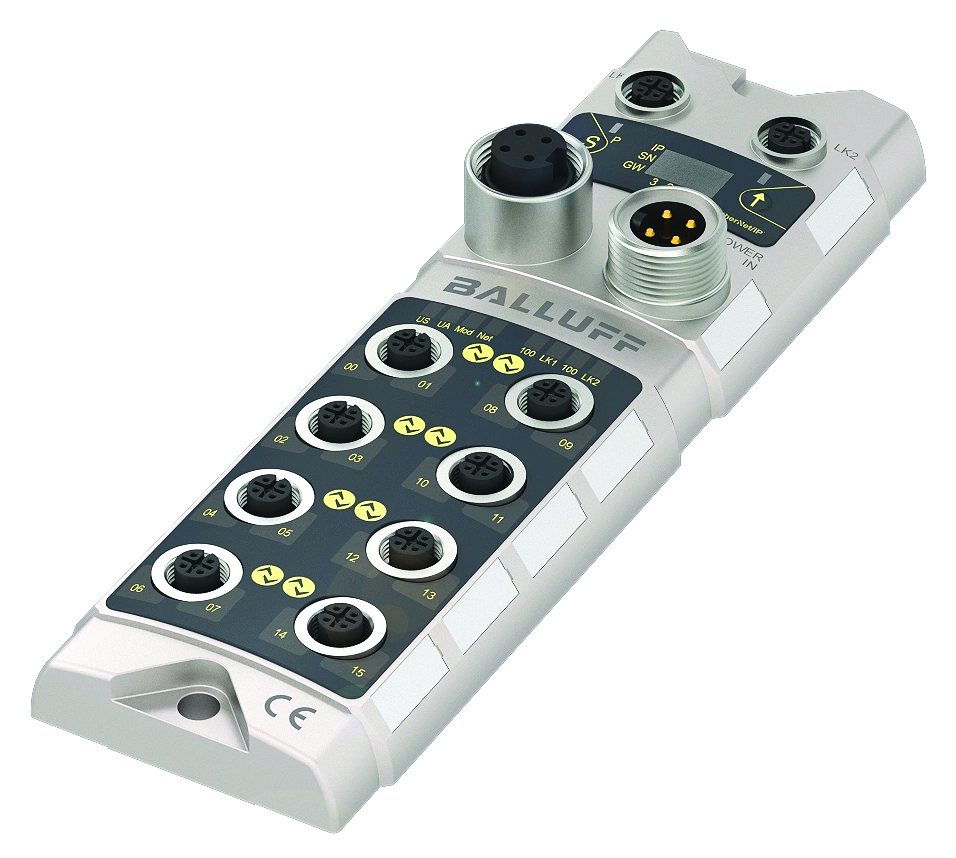

Ethernet IP IO Block, 16 Configurable PNP Inputs/Outputs, 8 IO Link Ports
Most Common Usage: Networking IO
|
Easy Selection Guide for Panel Builders
M12, 4 Pin, Female, A Coded, Flying Leads, M16 x 1.5mm Mounting,
24AWG Wires
Most Common Usage: Panel Sensor Connections
|

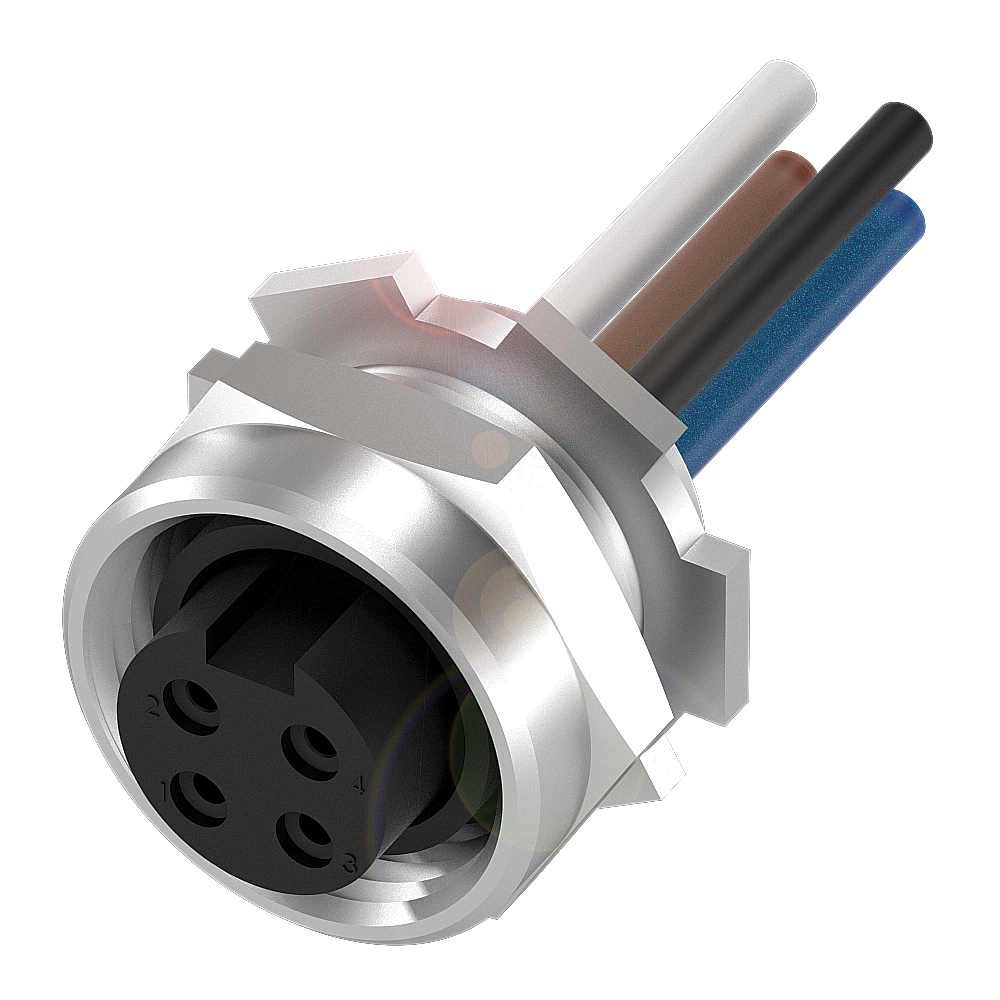

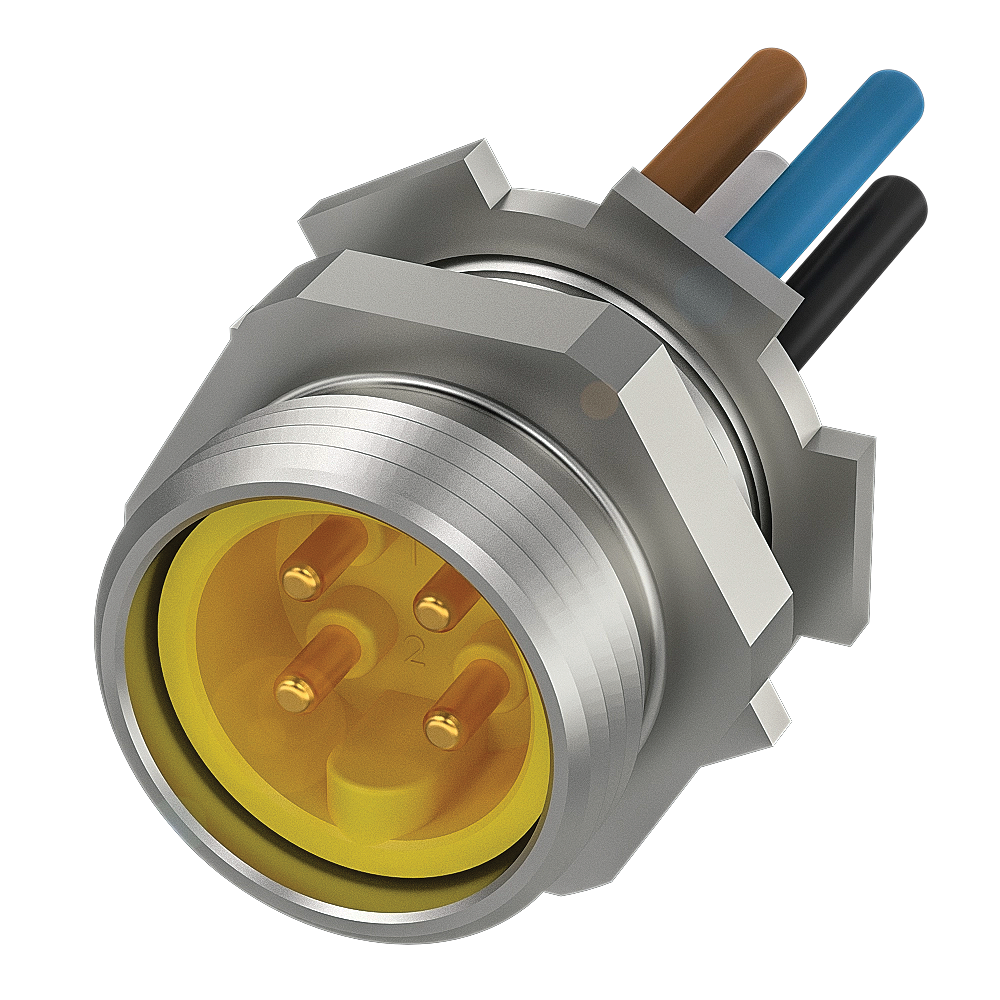

7/8”, 4 Pin, Female, Flying Leads, 1/2” NPT Mounting,
16AWG Wires
Most Common Usage: 24V Remote Power
|

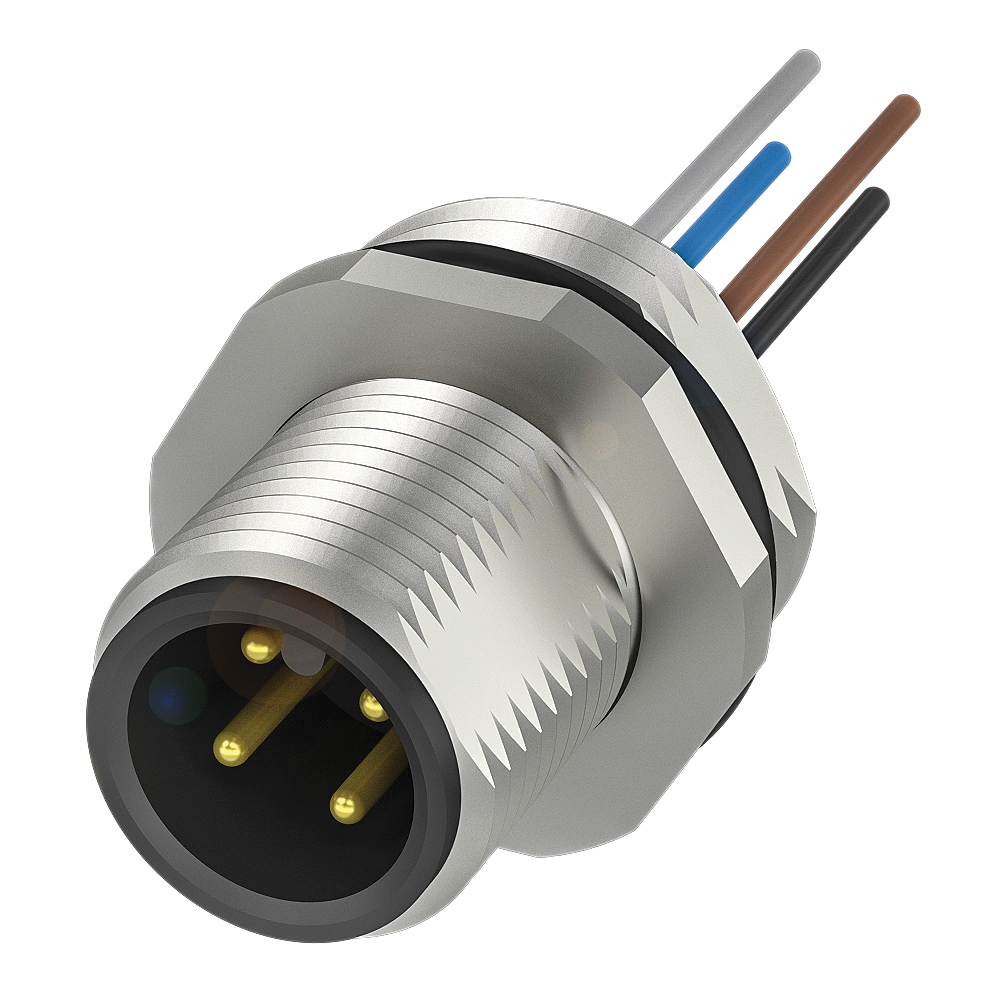

M12, 4 Pin, Male, A Coded, Flying Leads, M16 x 1.5mm Mounting,
24AWG Wires
Most Common Usage: Panel Sensor Connections
|

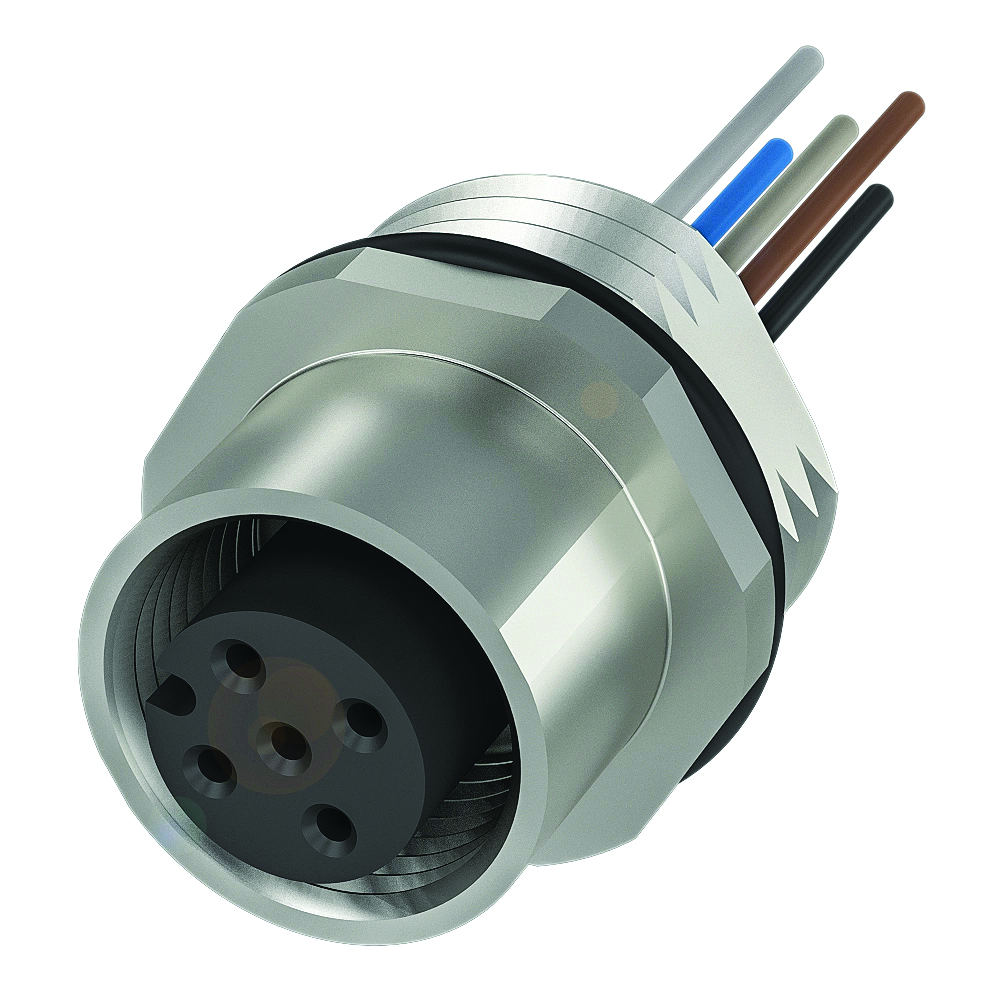

M12, 5 Pin, Female, A Coded, Flying Leads, M16 x 1.5mm Mounting, 24AWG Wires
Most Common Usage: Panel Sensor Connections
|

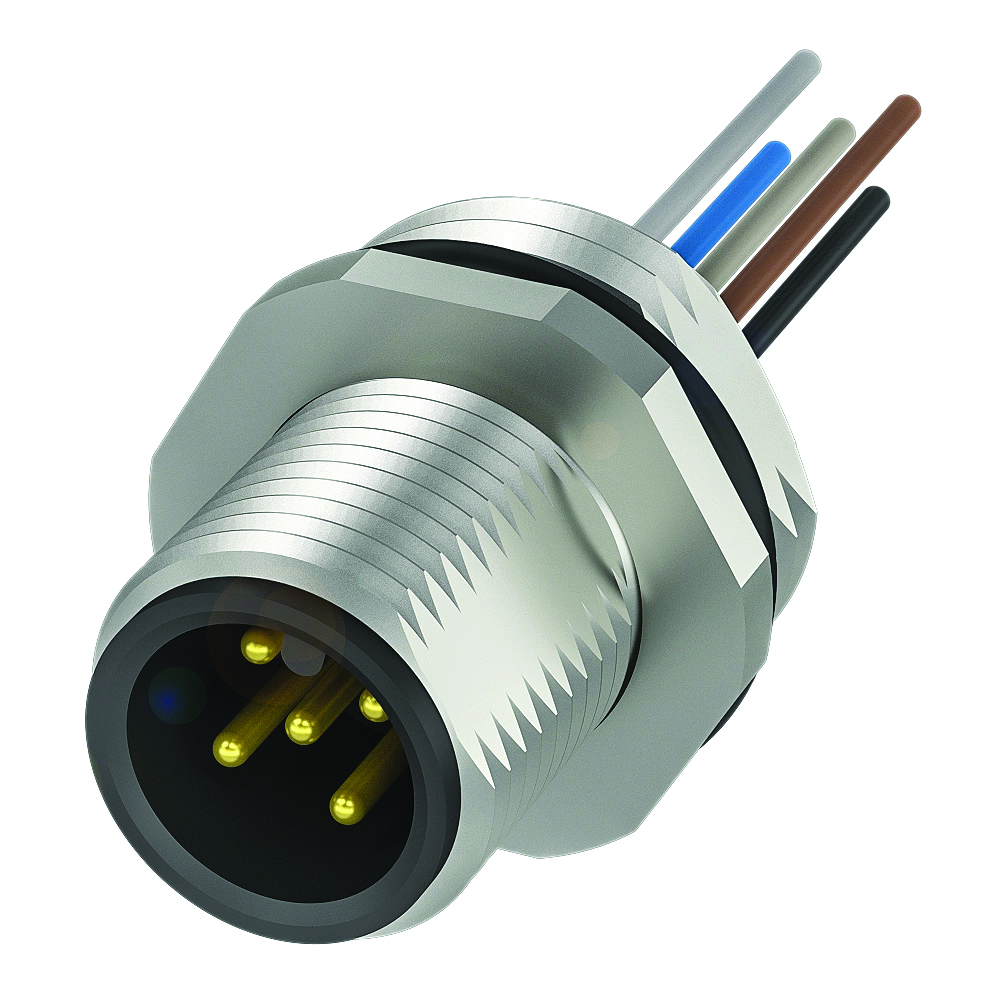

M12, 5 Pin, Male, A Coded, Flying Leads, M16 x 1.5mm Mounting, 24AWG Wires
Most Common Usage: Panel Sensor Connections
|
