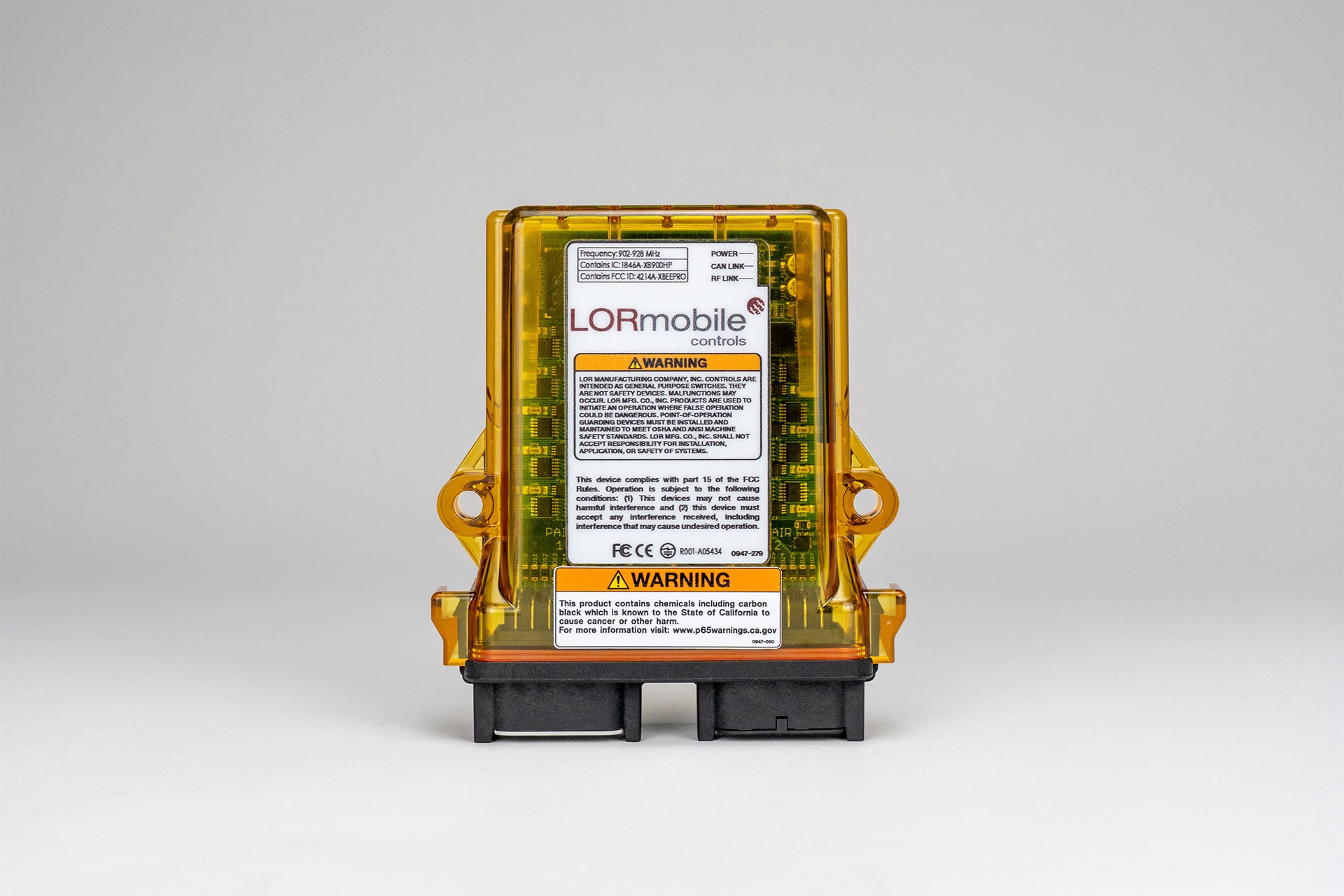

The LXB series receiver features 16 discrete solid-state outputs, 8 of which can be configured as analog PWM outputs. It includes a J1939 CAN (Controller Area Network) connection and LED feedback, offering versatility and advanced control. The LXB can be wired directly to electro-hydraulic coils to control functions or connected to a J1939 CANbus system to read sensors and operate functions via the CANbus. This dual functionality, enabled by its two connection ports, provides users with flexible options.
Details
Specs
Documentation
Related Products
Model #: LXB
Transmitter Options
- 2.4 GHz Stryker, Stryker Pro, Stryker Pro+
- 900MHz Ranger
+
–
2.4 GHz General Specifications
Frequency Range
2400-2483.5 MHz
Frequency Control
42 Frequency Hopping Channels (Software Selectable)
Modulation
MSK
Security
Channelization, System ID, and Vendor ID
Operating Temperature
-20C to 54C (-4F to 129F)
Humidity
Up to 90% RH, non-condensing
+
–
900 MHz General Specifications
Frequency Range
ISM 902-928 MHz
Frequency Control
7 Frequency Hopping Channels (Software Selectable)
Modulation
DSSS (Direct Sequence Spread Spectrum)
Error Correction
Automatic Error Detection and Automatic Retransmission
Operating Temperature
-20C to 54C (-4F to 129F)
Humidity
Up to 90% RH, non-condensing
+
–
Receiver Specifications
Supply Voltage
9-32 VDC
Digital Channel Outputs
16 Solid State; (8 configurable as analog outputs)
Analog Channel Outputs
8 PWM (Pulse Width Modulation)
Output Ratings
3 Amps (Internally Limited)
Output Diagnostics
LED Feedback to Indicate Open Load and Overload conditions
CAN Connections
J1939 (2-wire)
Antenna
Internal
Dimensions
Approx. 5.25”x4.5”x1.5”
Weight
Approx. 8 oz.
Enclosure
IP 67
Industries We Serve
Forestry | Utilities | Agriculture
The LXB Receiver enhances control for forestry machinery, utility vehicles and advanced agricultural equipment.
Concrete | Construction | Municipal
The LXB Receiver provides precise operation for construction equipment, industrial control systems and municipal maintenance vehicles.
Mining | Metals | Oil & Gas
The LXB Receiver ensures robust control for mining machinery, metal processing equipment and oil field operations.
Defense & Aerospace
The LXB Receiver delivers precise operation for machine control, military support vehicles and aerospace handling systems.
