10 Button Transmitter
The LOR Handheld Transmitter (LHT) was designed specifically for industrial applications. The rugged plastic enclosure is dust and waterproof (IP65) with a silicone rubber seal surrounding the edges providing impact protection. The Transmitter features a rubber keypad with eight function buttons, a shift button, and an On/Off button. All of the buttons provide tactile feedback and are spaced so they can easily be pressed while wearing a heavy work glove. The optional “Twist-to-Reset” Stop button is located on the top of the unit for easy access. With the Shift Key, the Transmitter is capable of controlling 16 separate outputs. Two LEDs embedded in the Keypad provide feedback to the operator for Battery Life and Transmission Status, as well as the status of the Shift Key. There are several different receiver options available for the LHT Series to provide the most cost-effective solution for your operation.
Details
Specs
Documentation
Related Products
Model #: LHT
- Frequency Range: 2400 – 2483.5MHz
- Ingress Protection: IP65
- Operating Range: 600′
- Operating Voltage: 3.3 to 12 VDC (3 × AAA Alkaline Batteries; 4.5 VDC Typical)
- Operating Temp: –40°– 176°F
- Weight: ½ LBS.
* Internal is standard, but external antenna is available upon request
** Operating range is based on the use of an internal antenna; an external antenna may increase the range significantly depending on the application
+
–
Receiver Options

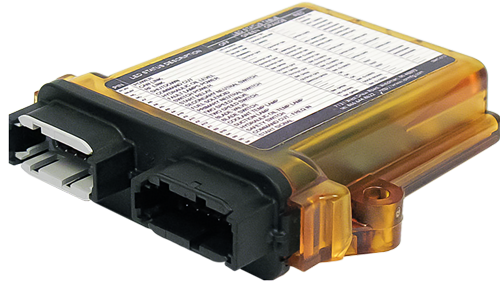

LDA Receiver
16 High Side Outputs, J1939 Communication
LXM Receiver
12 High Side Outputs, 6 Low Side Outputs, J1939 Communication12 High Side Outputs, 6 Low Side Outputs, J1939 Communication

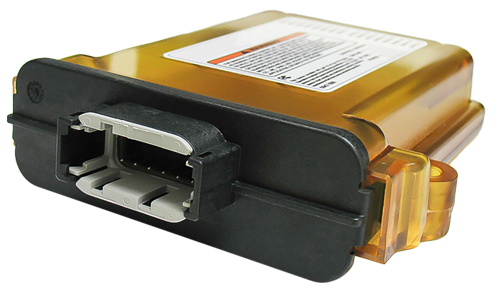

LGR Receiver
4 High Side Outputs. J1939, DeviceNet, CANOpen, RS485, ModBUS, or RS232 Serial Communication
+
–
Environmental
Operating Temperature
-40° – 80°C (-40° – 176°F)
Ingress Protection
IP65
Operating Range
600 Feet
Antenna
Internal
Operating Voltage
3.3 to 12 VDC (3 x AAA Alkaline Batteries; 4.5 VDC Typical)
Weight
½ lbs.
Dimensions
6.5″ x 3″ x 1.5″
+
–
Technical
Frequency Range
2400 – 2483.5 MHz
RF Channels
43
RF Technology
FHSS (Frequency Hopping Spread Spectrum)
Modulation
MSK
Max. Output Power
+17dBm (50 mW)
Security
System ID and Serial Number provide over 16 million unique combinations.
Inputs
8 momentary function push buttons + 1 momentary Shift Key rated at 1 million cycles. Optional “Twist-to-Reset” Stop Switch
Feedback
2 Bi-Color LEDs (Status and Shift indication)
+
–
Approvals
FCC
KQL-RM024
IC (Canada)
2286C-2510100P
CE (Europe)
EN 300 328-2 V1.71, EN 301 489
Telec (Japan)
005WWCA0359
