Up to 52 Functions

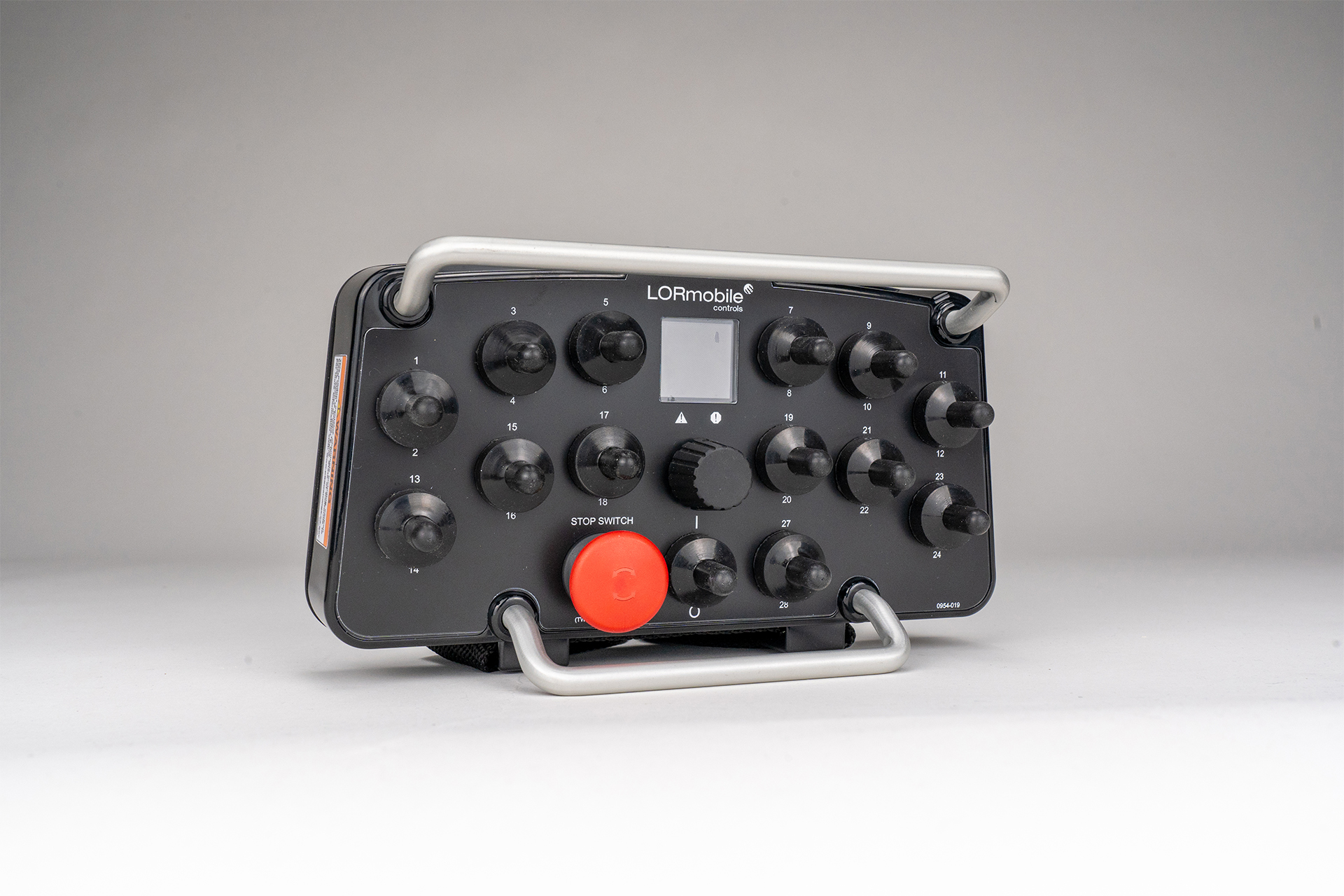

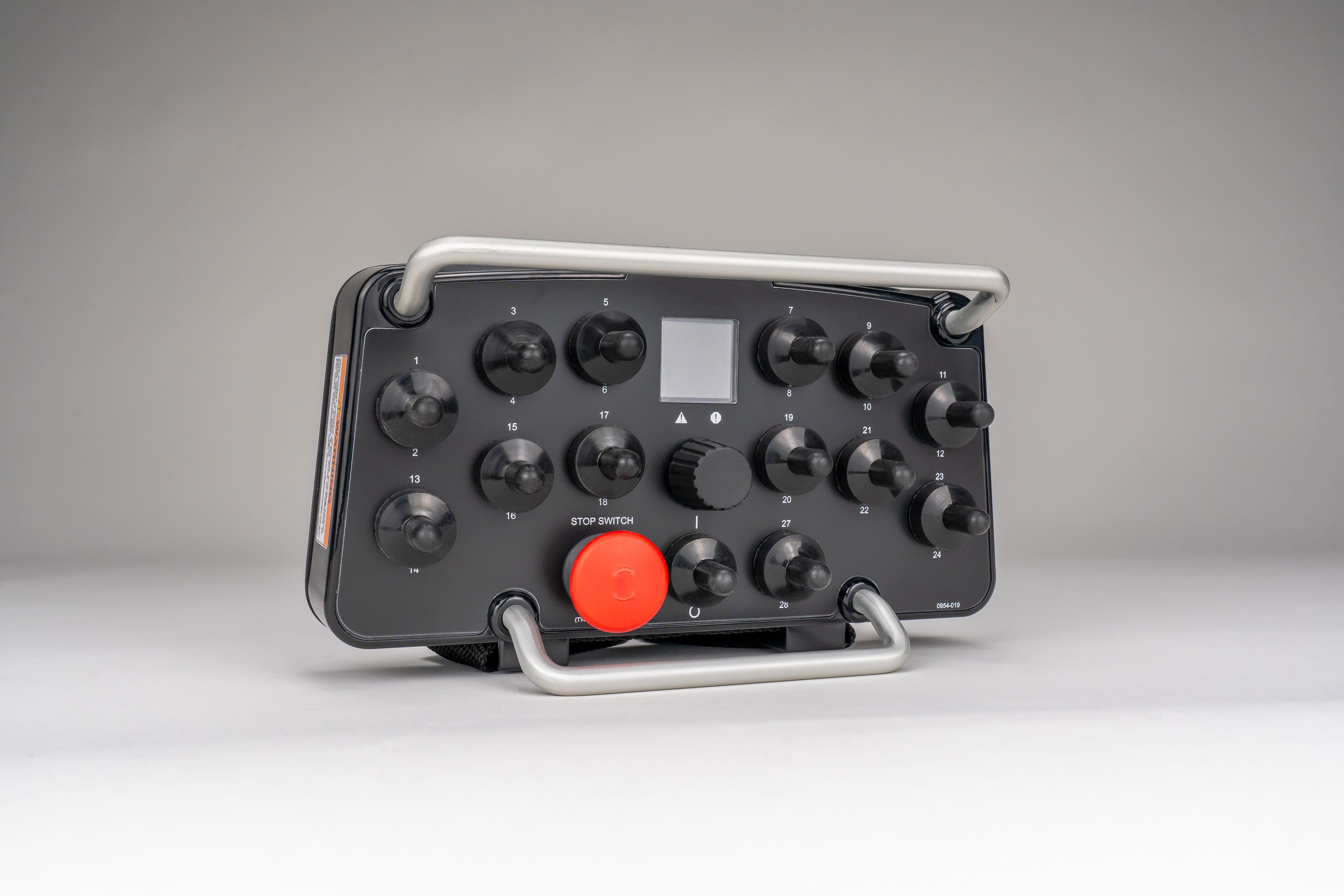

The Stryker Transmitter features 36 digital channels, and 16 analog functions. Configurable in either 900 MHz or 2.4 GHz with internal processing capabilities, this Transmitter offers a wide range of possibilities when it comes to applications.
Details
Specs
Documentation
Related Products
Model #: LXL
- Up to 52 functions
- Frequency Range: ISM 902 – 928 MHz; 2400 – 2483.5MHz
- Ingress Protection: IP67
- Sun Readable Display Provides Operator Feedback for System Status/Faults
- Battery Life: 15 h typical; Usage Dependent
- Operating Temp: –40°– 85 °C (–40°–176°F)
- Weight: 4 LBS.
Operating range is based on the use of an internal antenna; an external antenna may increase the range significantly depending on the application
** Operating range is based on the use of an internal antenna; an external antenna may increase the range significantly depending on the application
+
–
Receiver Options
LXR Receiver
CAN Communication Only
LXM Receiver
12 High Side Outputs, 6 Low Side Outputs, J1939 Communication
LXG Receiver
CAN Communication Only
+
–
General Specifications (900 MHz)
Frequency Range
ISM 902MHz–928MHz
Frequency Control
7 Frequency hopping channels ( Software Selectable )
Modulation
DSSS ( Direct Sequence Spread Spectrum)
Error Correction
Automatic Error Detection and Automatic Retransmission
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
Up to 90% RH, non-condensing
+
–
General Specifications ( 2.4 GHz )
Frequency Range
2400–2483.5 MHz
Frequency Control
42 Frequency hopping channels ( Software Selectable )
Modulation
MSK
Security
Channelization, System ID, and Vendor ID
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
Up to 90% RH, non-condensing
+
–
Transmitter Specifications
Display
320 x 240 Sunlight-Readable E-Ink
Battery Voltage
7 NiMH Rechargeable Batteries (2000 mAH)
Supply Voltage
15 VDC Min.; 32 VDC Max
Max. Current Consumption
less than 200 mA (RF Active)
Digital Inputs
36 Available
Analog Inputs
16 Available – 0-5 VDC (configurable as Digital Inputs)
LED Outputs
4 (RF and Error)
CAN Connection
J1939 (2-wire)
Battery Life
15 h typical: Usage dependent
Dimensions
Approx. 12″ x 6.75″ x 5.1″
Weight
Approx. 2 Lbs.
Enclosure
IP67
Industries We Serve
Forestry | Utilities | Agriculture
The LXL Transmitter enhances control for complex forestry machinery, utility service vehicles and advanced agricultural equipment.
Concrete | Construction | Municipal
The LXL Transmitter provides precise operation for construction cranes, concrete boom pumps and municipal maintenance vehicles.
Mining | Metals | Oil & Gas
The LXL Transmitter ensures reliable control for mining excavators, metal processing systems and oil field equipment.
Defense & Aerospace
The LXL Transmitter delivers precise operation for military support vehicles and aerospace handling systems.
