6-Channel Radio Remote Control

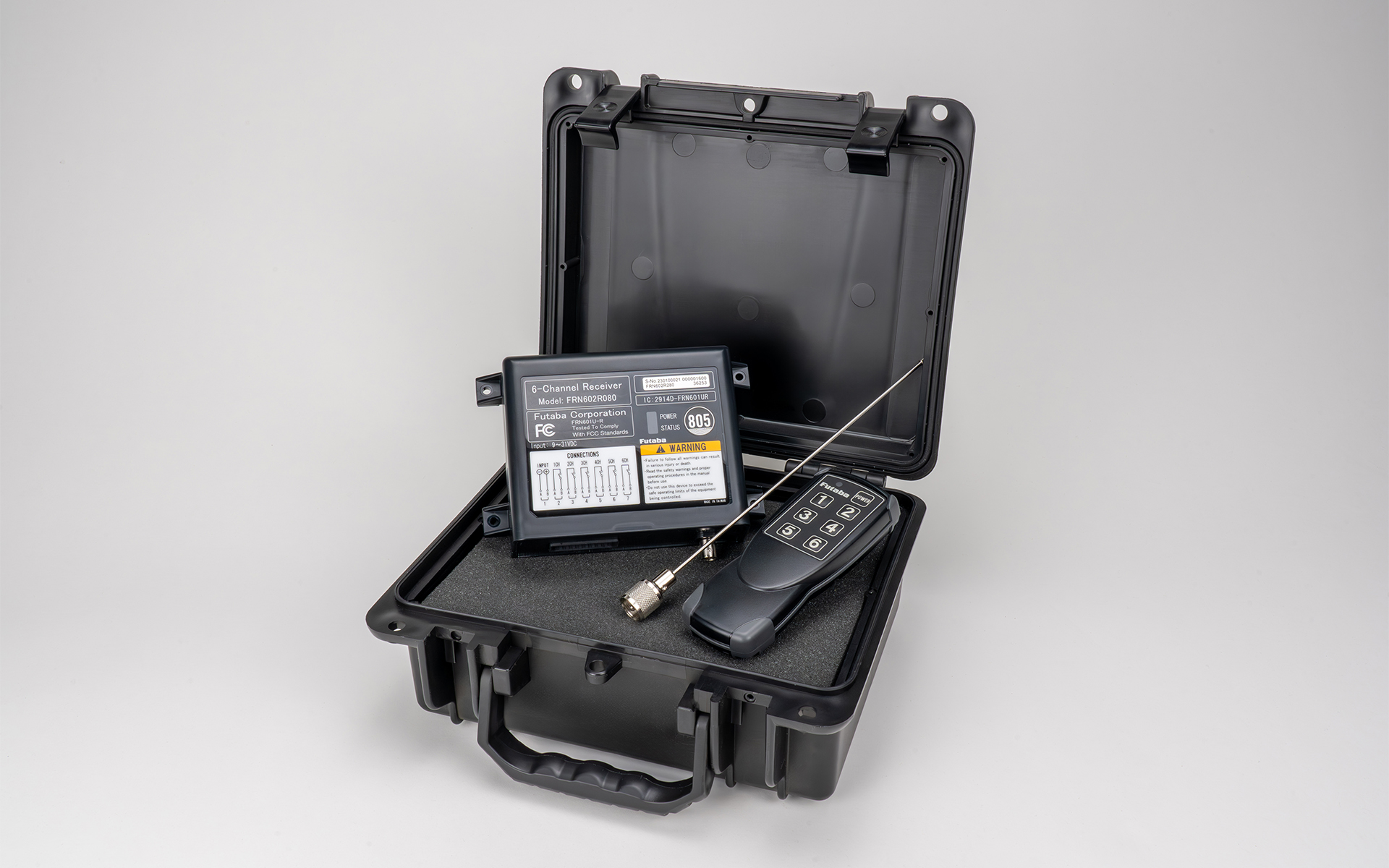

The Futaba FRN Kit is a compact radio kit with six momentary or latching dry contact relay outputs, a 319 MHz transmission frequency, and a 400’ LOS range. The FRN is an excellent off-the-shelf radio kit for simple direct-wire
applications. With microprocessor control in both transmitter and receiver, the unit provides remote control of up to 6 relays. Application possibilities include conveyors, hoppers, stop light systems, construction machinery, boom trucks and much more. Exclusive direct sequence data encoding techniques provide a system with excellent reliability and immunity to false activations from noise and interference. Additionally, 16-bit system identification codes offer excellent security. Housed in an injection-molded, high-impact plastic case with water-resistant gaskets, the transmitter’s sealed membrane switches assure long life in an industrial environment. The receiver, also in an injection-molded, high-impact case, operates on 12 or 24 VDC power. Momentary dry pair outputs are standard, with optional latching outputs and switched source voltage contacts available.
Details
Specs
Documentation
Related Products
Model #: FRN-0602U
- 319 MHz
- 6 Dry Contact relays
- 12/24 VDC
- 30 Hour Battery Life
- Custom Overlay Available
- 200 ms average response time (from standby mode) 150 ms average response time (re-operated within 4 s)
- 400 ft. Operation Range (L.O.S.)
- 13ft antenna cable, metal whip, and metal mount
- 12 position receiver connector with terminations for building a harness
-
Programmed to match the receiver’s 3-digit frequency and 5-digit ID code
-
P/N: 5151 4ft flying lead harness and P/N: 6195 diode suppression kits available
**operating distance is dependant on local conditions**
+
–
General Specifications
Frequency Range
317.350 to 318.350 MHz
Frequency Control
PLL synthesizer, 20 frequency channels
Modulation
FM-FSK
Baseband Data Format
Direct Sequence Encoded
Communication Mode
Simplex
Error Checking
CRC Technique
Data Channels
2, 4, or 6 discrete
Security
16 bit ID code (65,536 unique codes)
Response Time
200 ms average (from standby mode) 150 ms average (re-operated within 4 s)
Operating Temperature
–4 to +140 °F (–20 to +60 °C)
Storage Temperature
–4 to +158 °F (–20 to +70 °C)
Humidity
Up to 90% RH, non-condensing
Shock
Peak acceleration of 500 m/s2 and action time of 11 ms when not communicating
Vibration
Tx: 4.4 G Rx: 6.8 G (JIS D1601-1995 3-B-70)
Operating Range
400 FT.**
+
–
Transmitter Specifications
Supply Voltage
3.6 to 4.5 VDC (3 AAA alkaline batteries)
Maximum Current Consumption
26 mA (RF active), 10 mA (idle mode)
Transmission Power
< 6000 µV/m at 3 m
Battery Life
Continuous operation: ≈ 30 hrs (alkaline batteries)
Power Saving Features
RF emissions off delay: 4 s auto power off delay: 3 min
Antenna
Internal
Case
Water-resistant (JIS D0203-1994 R1) and dustproof, high-impact black resin
Dimensions
5.79 x 2.32 x 0.94 in (147 x 59 x 24 mm)
Weight
3.5 oz (100 g) excluding batteries
+
–
Receiver Specifications
Design Type
Double-conversion super-heterodyne with convolutional decoding
Receiver Sensitivity
< – 110 dBm
Discrete Channel Outputs
2, 4, or 6 electromechanical relays, SPST normally open
Relay Configuration
FRN-02/04/0601U Relays provide switched supply voltage. FRN-02/04/0602U: relays provide dry contacts
Relay Ratings
Resistive load: 5 A, 31 VDC/120 VAC maximum (cos Φ; = 1.0) inductive load: 2 A, 31 VDC/120 VAC maximum (cos Φ; = 0.4)(total combined current for FRN-02/04/0601U relays: 8 A)
Supply Voltage
9 to 31 VDC
Maximum Current Consumption
0.8 A (6 relays activated), 60 mA (idle mode)
RF Connector
BNC female
Antenna
External 1/4 whip, 10.24 in (260 mm), UHF metric male
Antenna cable
RG-58/U coaxial, 13.1 ft (4 m), BNC male to UHF metric female
Case
Splash-resistant and dustproof (JIS D0207-1977 F2), high-impact black resin
Dimensions
6.77 x 4.61 x 1.81 in (172 x 117 x 46 mm), excluding antenna
Weight
Approximately 13.1 oz (370 g) excluding antenna
