Quality valve systems from Emerson AVENTICS reduce the critical path of your project and ownership costs with their modular, high-performance design. The G3 electronic Fieldbus system is the ideal replacement for conventional hardwire solutions. The Emerson G3 is easy to assemble, install, commission, and maintain. It is the only electronic manifold with a graphical display for configuration, commissioning, and diagnostics.

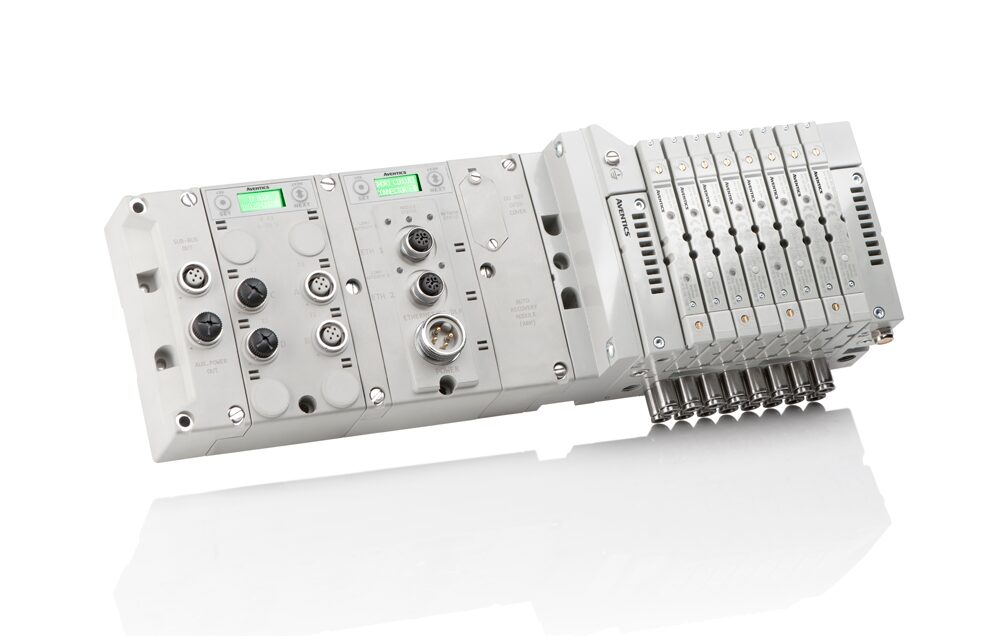

G3 Electronic Fieldbus Valve System
The G3 valve system allows programmable logic controllers to turn valves on and off more efficiently. It also channels I/O data from sensors, lights, relays, individual valves, or other I/O devices via various industrial networks. This connectivity is helpful with the enhanced diagnostic capabilities of the valve systems, which help users identify problems earlier and results in less downtime.
The G3 has a flexible architecture that scales up along with your system’s requirements. The modular system is easy to modify if the machine or process is changed in the future, saving equipment costs and reducing the overall footprint. Users can also avoid extended production downtime with the plug-and-play valves. The valves are compact and offer the highest flow rate for their size, further reducing the machine footprint and costs.

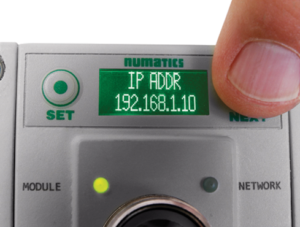

The unique graphical display on the G3 provides plain language diagnostic information, which makes faults easier to diagnose. The display also simplifies integration with its clear commands.
Users have access to valve health information via Ethernet and Fieldbus connectivity. This information helps maintenance identify faults earlier and proactively schedule maintenance to avoid lengthy downtime.
Users have the option to order their valve systems pre-assembled. The ready-to-install systems help ensure your projects get started on time and with ease.
G3 Valve System Features
- Standards / Regulations: ATEX Zone 2-22, CSA, UL
- Operating Environment: Indoor, Outdoor
- Auto recovery module (ARM) protects configuration data during a critical failure
- Wireless ARM allows access to vital valve system diagnostics and health monitoring via WiFi connection
- DeviceNet, Ethernet IP, Profibus, Profinet, and Powerlink Fieldbus connectivity
AVENTICS – now the third largest pneumatics manufacturer in the world
Shortly after acquiring AVENTICS, Emerson made the decision to merge their legacy pneumatics brand, numatics, under their new AVENTICS line. AVENTICS now has the widest range of proportional technology on the market. Their product offering includes actuators, valves, air preparation units, and smart IIoT devices. AVENTICS’ capabilities for integrated solutions, technical support, online tools, and engineering have also expanded. Evolution Motion Solutions utilizes AVENTICS’ pneumatic components in innovative motion control solutions for industrial and mobile partners.
- Valve Systems and Directional Control
- Proportional Valves
- Cylinders and Actuators
- Air Preparation
Products
G3 Communication Node
Ethernet IP/DLR: 240-325
G3 Communication Node
Profinet Node: 240-240
25 Pin Sub-D Electrical Interface (G3)
P599AE428441002
G3 Output w/Graphic Display
8 PNP (M12 x 8): 240-208
G3 Input w/Graphic Display
8 PNP (M12 x 8): 240-206
G3 I/O Module
8 In/8 Out PNP M12: 240-211
Accessories
Valve Driver Module
P599AE508827002
Terminator Module
240-245
Jumper Clip
240-179
Auto Recovery Module (ARM)
240-383
25 Pin Female Cable 22 AWG-Unshielded
SC2505MCX0000000
For more information about the AVENTICS G3 valve system, visit their website here.
