Advanced Machine Guarding Solutions (AMGS) offers safety guarding solutions for custom machine builders and end-users seeking to guard their manufacturing equipment. With over 35 years of experience in automation, robotics, and safety guarding solutions, AMGS is a knowledgeable, reliable, and local safety guarding partner. AMGS provides pre-assembled posts, panels, and doors that make protecting people and systems simple and safe. These products are easy to design, easy to assemble, and easy to customize. The Quick-Connect system ensures all parts come together easily, simply locking into place with a hand tool.
- Quick Connect panel and post fitting system
- Standard heights and widths
- Easy to access 3D models with an online custom panel configurator
- Panel post leveling options
- Preassembled doors with options for various interlock manufacturers
- Integrated light curtain options
- Custom cabling for safety electronics
Product Offerings
Panels
+
- Fully welded frame, 25×25 mm tube steel
- Spot-welded mesh, 3 mm diameter steel wire, grid spacing 20×100 mm
- Optional pre-attached weld screen and polycarbonate
Posts
+
- 2×2″ 14-gauge tube steel robotically welded to the foot pad
- 4 M6 jack screws for leveling
- 2 4-clearance holes for 3/8″ anchors
- Zinc-plated shims

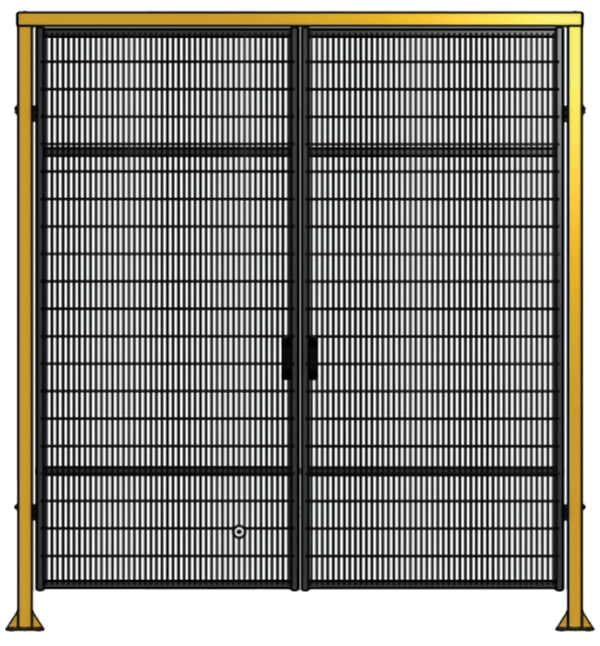

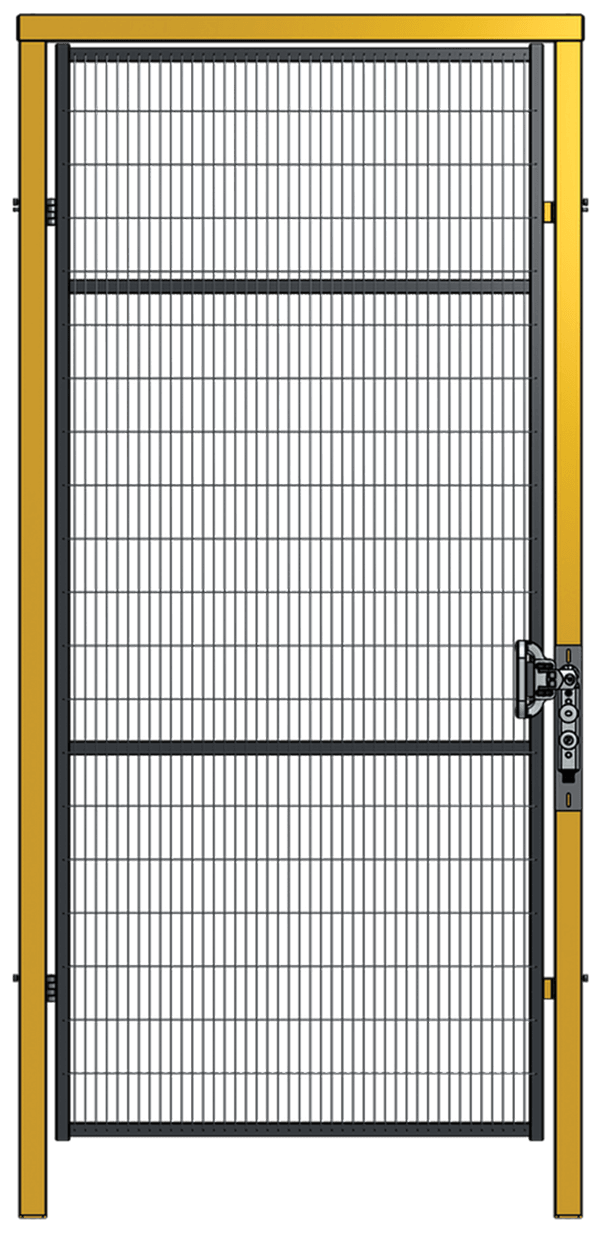

Single- and Double-Hinged Doors
+
- Assembled with your pre-selected options
- Post hardware included
- Variety of interlock and electronic options available

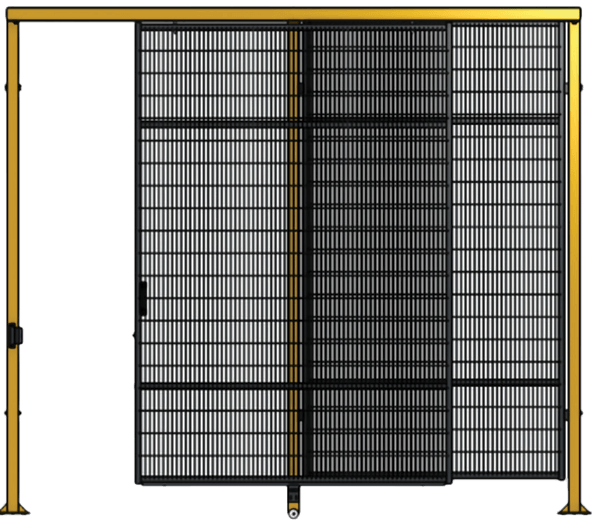

Sliding Doors
+
- Come assembled with pre-selected options
- Post hardware included
Door Interlock Options
+
- Standard options from Fortress
- 2 N.C. safety-rated contacts with solenoid locking
- Standard grip handle or optional twist handle
Push Button Operator Stations
+
- Custom assembled from 3 sizes of aluminum covers
- Push button contacts wired within the steel door post
- Pre-wired to a M12/12 pin cable or M23/19 pin cable
Light Curtain Mounts
+
- Laser cut posts, 3×3″x1/4″ tube steel
- Robotically welded to foot pad
- 4 M6 threaded jack screws to assist with leveling
- 3/8″ anchor clearance holes
Wireway and Mounts
+
- Made in-house and power-coated black
- Three sizes available
- Wireway hold-down brackets
- Top of post mounts
