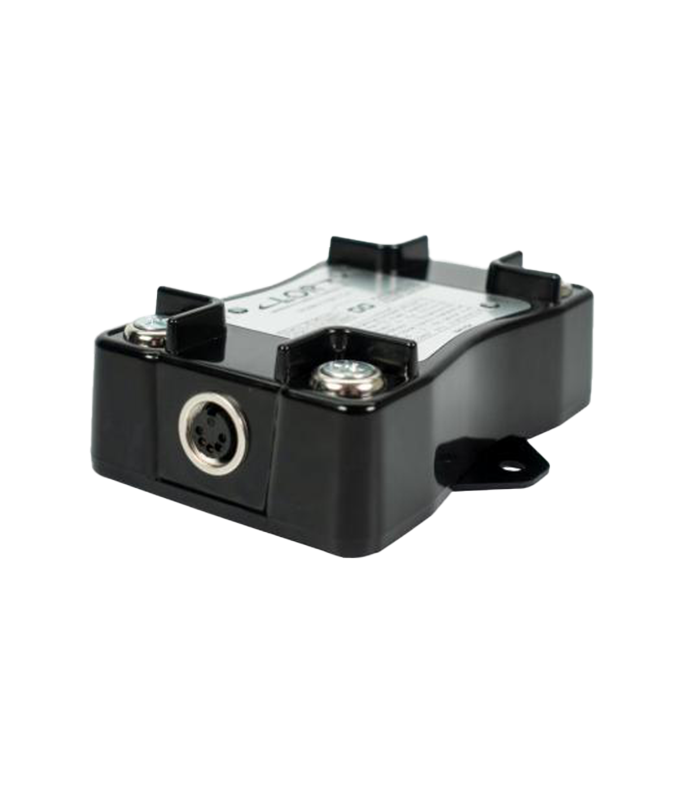

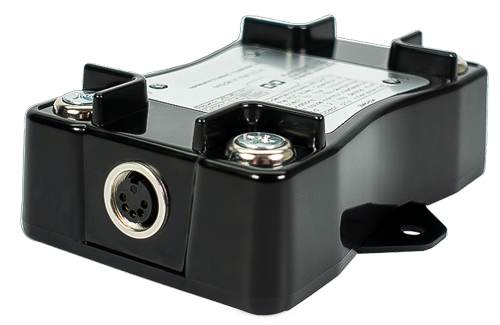

The LXR Series Receiver features LED feedback and a J1939 CAN (Controller Area Network) connection. With powerful internal processing capabilities, these robust industrial remote control receivers can be configured to fit any application.
Details
Specs
Documentation
Related Products
Model #: LXR
- 9–36 VDC
- J1939 (2-wire)
- LED Feedback
- Integrated Magnetic Charging Station for LX Series Transmitters
- IP 67*
* With Mating Connector
** Operating range is based on the use of an internal antenna; an external antenna may increase the range significantly depending on the application
+
–
General Specifications (900 MHz)
Frequency Range
ISM 902MHz–928MHz
Frequency Control
64 Frequency Hopping Channels (Software Selectable)
Modulation
DSSS (Direct Sequence Spread Spectrum)
+
–
General Specifications (2.4GHz)
Frequency Range
2400 MHz – 2483.5 MHz
Frequency Control
14 Frequency hopping channels (Software Selectable)
Modulation
DSSS (Direct Sequence Spread Spectrum
+
–
Transmitter Specifications
Supply Voltage
9–36 VDC
CAN Connection
J1939 (2-wire)
LED Feedback
Power, Wireless Connectivity, CAN, Error
Charging
Magnetic charging station for LXT and LXH Transmitters
Mounting
Can accept RAM style ball mount
Connection
M16 Industrial Connector Interface to Machine
Security
Channelization, System ID, and Vendor ID
Ingress Protection
IP 67*
Antenna
External
Dimensions
Approx. 4.75″ x 4″ x 1″
Weight
Approx. 11 oz.
Operating Temperature
-40° C–85° C (-40° F–185° F)
Humidity
Up to 90% RH, non-condensing
