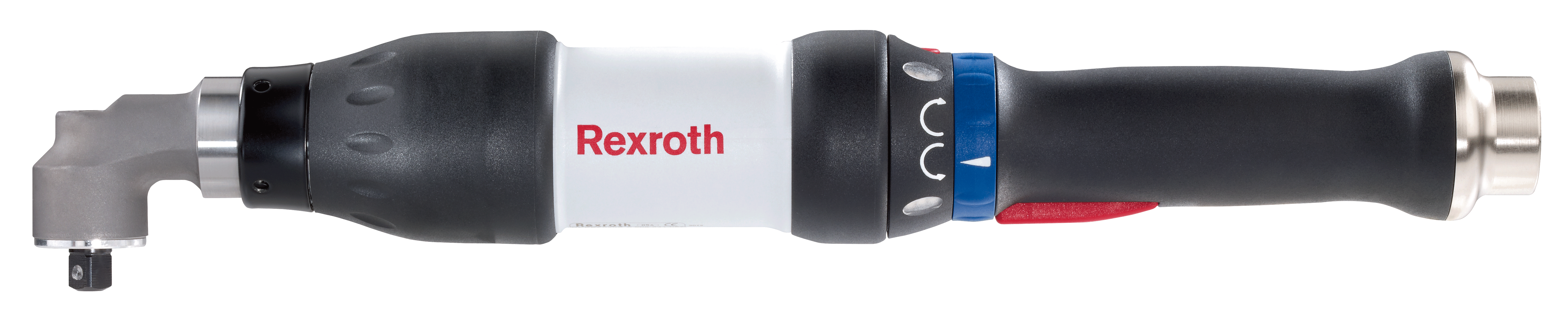

Bosch Rexroth offers handheld DC electric nutrunner tightening systems with the ErgoSpin product line. The standard offering of the ErgoSpin handheld tools operate between 1 and 220 Nm. Numerous output options are available for the handheld tools including straight outputs, angled heads, and custom outputs. These tools are robust and were ergonomically designed to be easy to use for the operator. In addition, these intelligent fastening tools have status indicator lights built into the handle of the tool to display to the operator successful or unsuccessful tightening operations. Furthermore, sensors in the tool ensure the desired final angle of the joint regardless of the tightening habits of the operator.
Handheld Nutrunner
The Bosch Rexroth DC handheld nutrunner tightening tools are available in a variety of options including Pistol Grip, GripLine, SlimLine, and VarioLine.
- Pistol Grip design for operator convenience in vertical, horizontal, and other tool directions
- GripLine design with an integrated protective cover for two-handed operations
- SlimLine design for limited access to tightening locations
- VarioLine design for flexible output connections including inline, offset, and special output drives

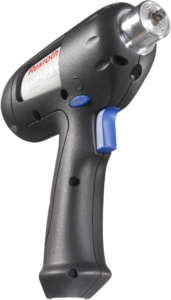

Pistol Grip
2.4 – 35 Nm

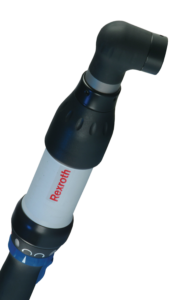

GripLine
1 – 75 Nm

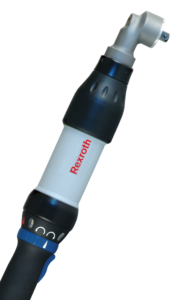

SlimLine
1 – 220 Nm

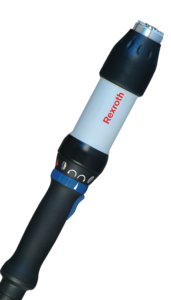

VarioLine
1 – 146 Nm
Torque reaction devices are available for handling all of the handheld tools. Worker guidance programs are available to show the operators which bolt to tighten and the sequence to tighten the bolts. There are software packages available for data collection and statistical process control for live monitoring of bolt torquing to monitor tightening operations. Bosch Rexroth offers multi-tool controllers for operating both hand tools and fixture tools with one control box. These controllers have the capability to synchronize up to 40 tools with only 7 controllers resulting in significant space and cost savings.
Controls System
Bosch Rexroth controls units have user-friendly, modern displays and connections. The concise structure allows for easy operation without complex configuration.
- Sturdy: IP54, EMC severity level IV
- Flexible adaption to new tasks
- Compact, high performance
- Flexible connection to control and archiving systems
- High process reliability thanks to self-diagnostics
Software
Bosch Rexroth offers Windows Based BS350 software for the DC electric handheld nutrunners. The BS350 software is icon-based and has a maximum of 99 programs with 40 steps per program. Each step in the program can be monitored to ensure the joint is tightened to the required specification. The BS350 software package provides the ability to analyze torque graphs, view tightened results, and observe histograms as well as see the good range window on the final step in the rundown process.
Intuitive, Reliable Tightening Processes
System installation and programming of individual tightening tasks is done via convenient, icon-supported tools. Tightening processes are configures on the graph interface.
Graph
The tightening graph helps you quickly analyze tightening cases.
Good Range Window
The good range window clearly shows you the location of the tightening results in the target window.
Histogram
The histogram gives you a quick overview of the statistical distribution of the tightening results.
Results Window
Internal results memory of up to 40,000 tightening results and filter search functionallty.
For more technical information on Rexroth’s Ergo Tools, visit Rexroth’s online resources here.
