IN STOCK. SHIPPED FAST. COMPETITIVELY PRICED.

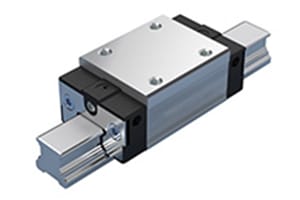

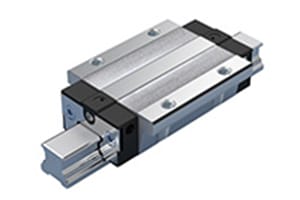

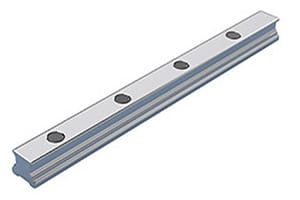

Through the BSCL Ball Rail System Stocking Program, Evolution Motion Solutions stocks the Bosch Rexroth BSCL rail and blocks in sizes 15, 25, 35, and 45—available cut-to-size and shipped fast with 2-week standard delivery and 5-day and 2-day delivery options available.
The BSCL offers an economical, compact solution for automation and handling tasks that don’t require the ultra-precision of traditional linear guides. Designed for standard applications, this system delivers reliable performance with simplified installation and reduced machining needs, making it a versatile option for industries like food and beverage, packaging, logistics, woodworking, and aerospace.
Features and Benefits
- Cost-effective alternative to high-precision guides, ideal for medium performance
- Easy replacement and servicing of rails and blocks
- Lubrication intervals up to 5,000 km, with six lubrication points
- Lightweight design with smaller rolling elements and reduced material usage
- Sealing concept protects against chips and debris for long-lasting performance

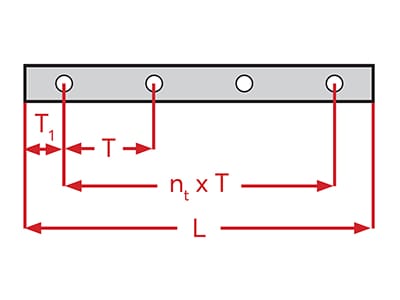

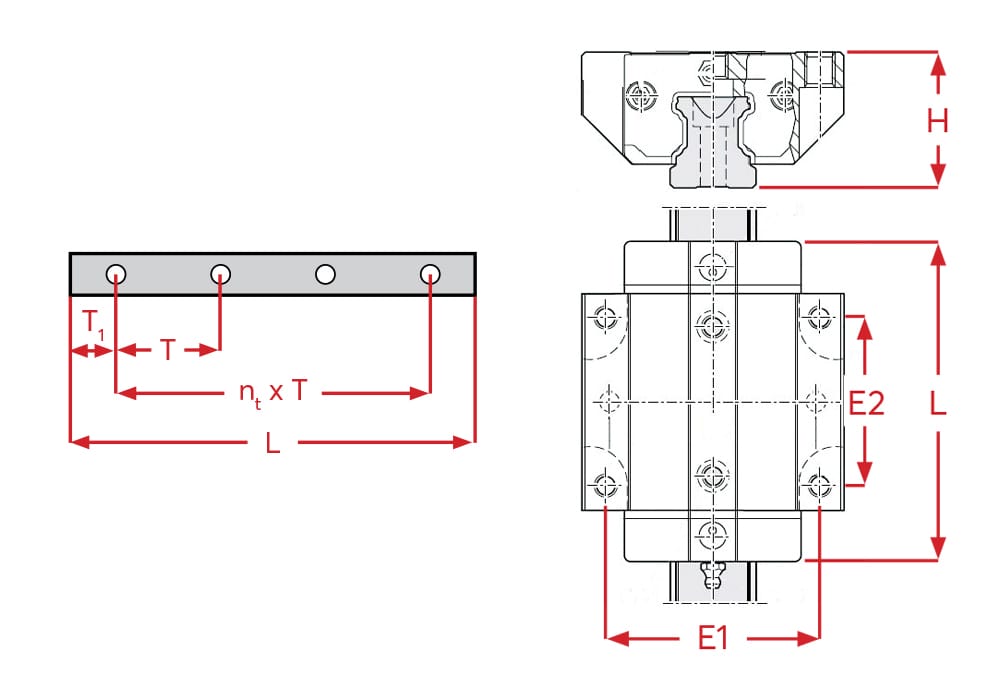

Critical Ball Rail Dimensions
- Specify Length (L) and (T1) Dimensions When Ordering
- i.e. 205A-204-31-1000 (T1=20)
- Dimensions Listed In mm Normal Accuracy
- 0.040 mm tolerance height
- 0.100 mm tolerance ref edge
- Rail Lengths Up To 3,800 mm
|
|
