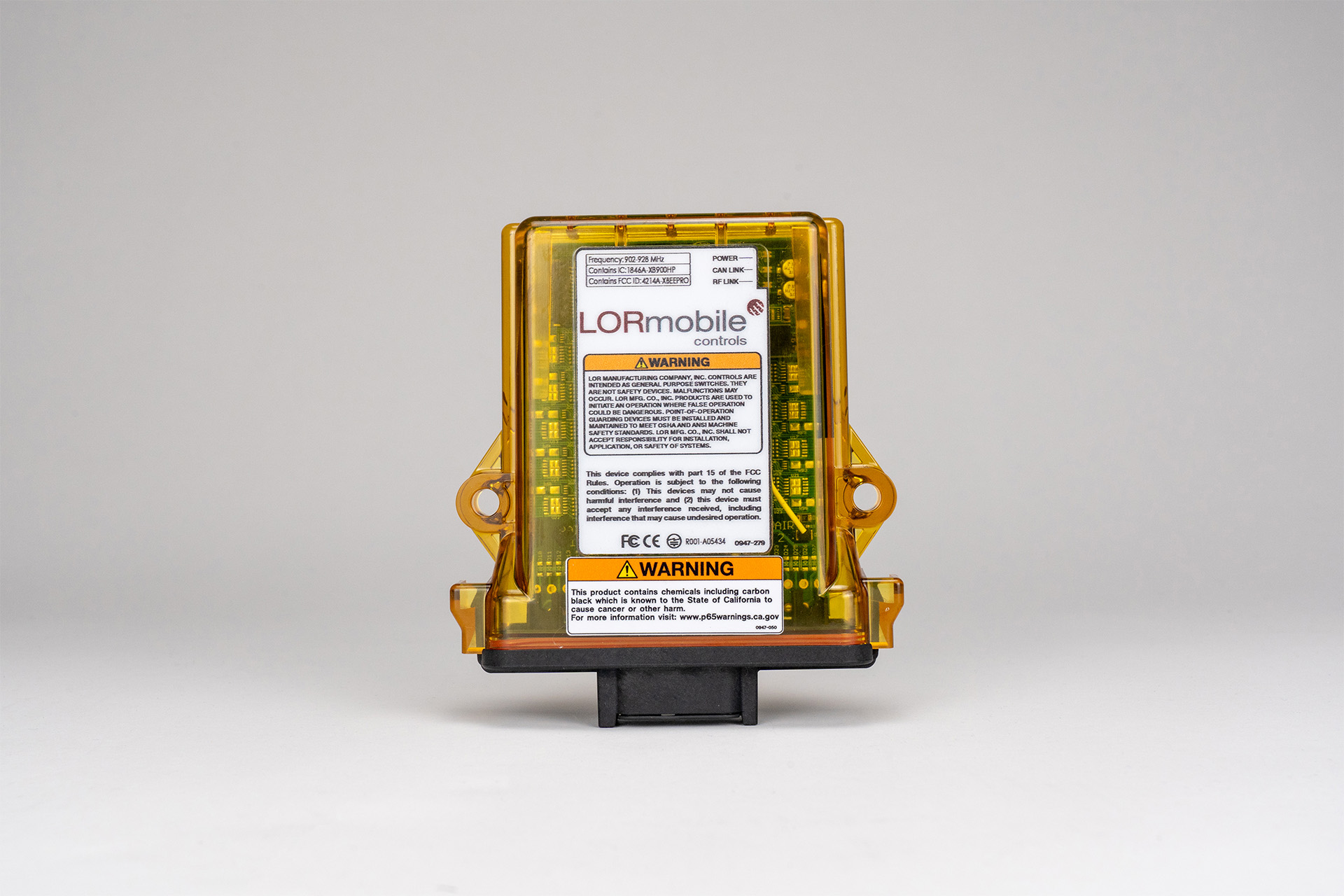

Featuring a J1939 CAN (Controller Area Network) connection and an IP 67 enclosure, the LXC series receiver is best used for machine control, with construction equipment and as part of an industrial control system.
Details
Specs
Documentation
Related Products
Model #: LXC
Transmitter Options
- 2.4 GHz Stryker, Stryker Pro, Stryker Pro+
- 900MHz Ranger
+
–
2.4 GHz General Specifications
Frequency Range
2400-2483.5 MHz
Frequency Control
42 Frequency Hopping Channels (Software Selectable)
Modulation
MSK
Security
Channelization, System ID, and Vendor ID
Operating Temperature
-20C to 54C (-4F to 129F)
Humidity
Up to 90% RH, non-condensing
+
–
900 MHz General Specifications
Frequency Range
ISM 902-928 MHz
Frequency Control
7 Frequency Hopping Channels (Software Selectable)
Modulation
DSSS (Direct Sequence Spread Spectrum)
Error Correction
Automatic Error Detection and Automatic Retransmission
Operating Temperature
-20C to 54C (-4F to 129F)
Humidity
Up to 90% RH, non-condensing
+
–
Receiver Specifications
Supply Voltage
9-32 VDC
CAN Connections
J1939 (2-wire)
Antenna
Internal
Dimensions
Approx. 5.25”x4.5”x1.5”
Weight
Approx. 8 oz.
Enclosure
IP 67
Industries We Serve
Forestry | Utilities | Agriculture
The LXC Receiver enhances control for machine operations in forestry, utility vehicles and advanced agricultural equipment.
Concrete | Construction | Municipal
The LXC Receiver provides precise operation for construction equipment, industrial control systems and municipal maintenance vehicles.
Mining | Metals | Oil & Gas
The LXC Receiver ensures robust control for mining machinery, industrial control systems and oil field equipment.
Defense & Aerospace
The LXC Receiver delivers precise operation for machine control, military support vehicles and construction equipment.
