Level Gauges
SNA Series
Specifications
- Black Epoxy Coated Metal Shroud with Polyamid Sight Tube
- Suitable for Use with Mineral and Petroleum Based Hydraulic Fluids and Lubricants
- Maximum Operating Temperature 194 ̊F (90 ̊C)
- Thermometer Calibration from -14°F (-10°C) to 176°F (80°C)
- SNA 076 has M10 Bolts as Standard
- SNA 127, SNA 254, SNA305 have M12 Bolts as Standard
- Tightening Torque 70 in/lb (7.9 Nm)
Options
- Viton Seals
- Dial Thermometer Available with 7.9 in (200 mm) or 11.8 in (300mm) Probe
- Other Special Seals Available upon Request
- Special Customized Scale Plates Available
- 1/2″ UNC Bolts Available on SNA 127, 254 or 305
- M12 Bolts Available on SNA 076
- Special Lengths Available on Request
- Special plastic sight tubes available for improved UV resistance or special fluids

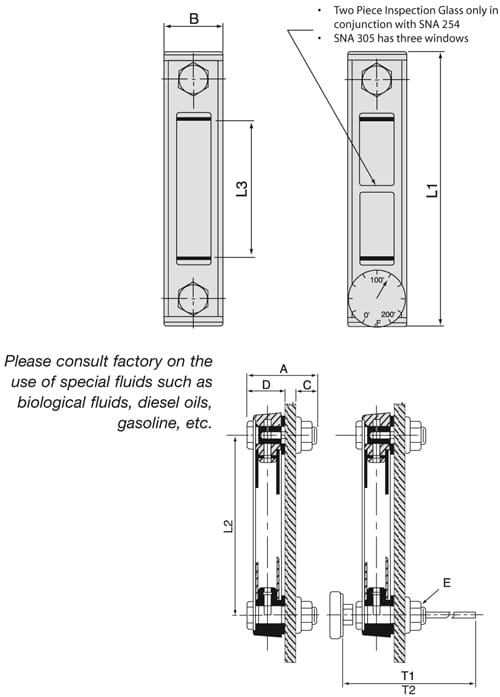

Dimensions
Letter | SNA 076 | SNA 127 | SNA 254 | SNA 305 | |
in (mm) | in (mm) | in (mm) | in (mm) | ||
A | 1.77 (45) | 1.77 (45) | 1.77 (45) | 1.77 (45) | |
B | 1.34 (34.5) | 1.34 (34.5) | 1.34 (34.5) | 1.34 (34.5) | |
C | 0.32 Max (8 Max) | 0.32 Max (8 Max) | 0.32 Max (8 Max) | 0.32 Max (8 Max) | |
D | 1.06 (27) | 1.06 (27) | 1.06 (27) | 1.06 (27) | |
E | M10 | M12 | M12 | M12 | |
L1 | 4.25 (108) | 6.25 (159) | 11.25 (286) | 13.2 (336) | |
L2 | 3.00 (76) | 5.00 (127) | 10.00 (254) | 12.0 (305) | |
L3 | 1.45 (39) | 3.00 (76) | 8.00 (203) | 10.0 (255) | |
T1 | 7.88 (200) | 7.88 (200) | 7.88 (200) | 7.88 (200) | |
T2 | 11.88 (302) | 11.88 (302) | 11.88 (302) | 11.88 (302) |
Level Gauges
SNK/SNKK Series
Specifications
- Black Epoxy Coated Metal Shroud with Polyamid Sight Tube
- Suitable for Use with Mineral and Petroleum Based Hydraulic Fluids, Lubricants and Gasoline
- Maximum Operating Temperature 194°F (90°C)
- Thermometer Calibration from 14°F (-10°C) to 176°F (80°C)
- Electrical Contact Made at Minimum Oil Level
- Viton Seals, M12 Bolts
- Tightening Torque 70 in-lbs
- Standard Plug Type “C” or “O” per DIN ISO 6952
Options
- Dial Thermometer Available with 200mm (7.9″) or 300mm (11.8″) Probe
- 1/2″ UNC Bolts Available
- Special Improved UV Resistant Plastic Sight Tube
- Special Lengths Available upon Request
- PT100 Sensor for Constant Temperature Feedback
- PT100-D Display Unit for Display and Analysis of PT100 Signals

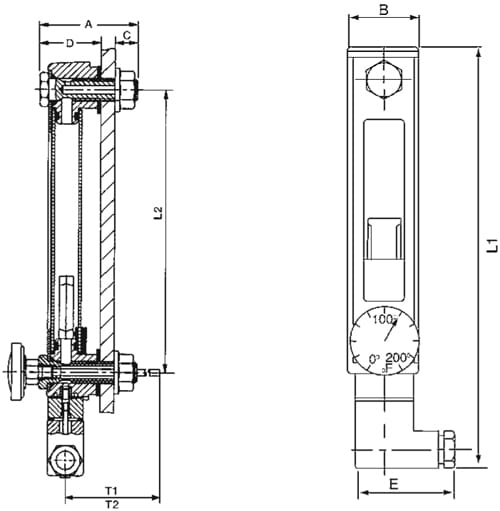

Dimensions
Letter | SNK 127 | SNK 254 | SNK 305 | |
in (mm) | in (mm) | in (mm) | ||
A | 2.20 (56) | 2.20 (56) | 2.20 (56) | |
B | 1.36 (34.5) | 1.36 (34.5) | 1.36 (34.5) | |
C | 0.32 Max (8.2 Max) | 0.32 Max (8.2 Max) | 0.32 Max (8.2 Max) | |
D | 1.38 (35.1) | 1.38 (35.1) | 1.38 (35.1) | |
E | 1.96 (49.8) | 1.96 (49.8) | 1.96 (50) | |
L1 | 8.00 (203.2) | 13.00 (330) | 14.3 (363) | |
L2 | 5.00 (127) | 10.00 (254) | 12.0 (305) | |
T1 | 7.88 (200) | 7.88 (200) | 7.88 (200) | |
T2 | 11.88 (302) | 11.88 (302) | 11.88 (302) |

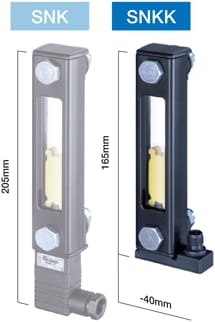

Compact Level Gauges
SNKK Series
Characteristics / Materials
Visual / electrical fluid level indication in hydraulic reservoirs
- Ideal for all areas of application in which space is limited: compact design and space-saving installation
- 40mm shorter in comparison with level gauge SNK with plug according to industry standard DIN EN 175301-803-B/ISO6952
- Protection class IP67 (IP69K on request) enables the use of the SNKK even under rough conditions (e.g. for construction, forestry and agricultural machinery) and also cleaning with a high-pressure washer
- Equipped with plug M12 according to IEC-61076-2-101 and with a changeover switch as delivery standard
- Also available with dial thermometer with probe, with thermo switch or with temperature sensor and a display unit
Thermo Switches
TS SNA/SNK Series
Area of Application
- Oil temperature indicator is to be used in conjunction with Stauff level gauges SNA, SNK and SNKK
Characteristics / Materials
- Available with 60°C (140°F), 70°C (158°F) or 80°C (176°F) switching temperature
- Activation takes place when the respective switching temperature is exceeded.
- Electrical function: Type O break contact, normally closed
- Steel parts made out of Steel (1.0718)
- Plastic parts made out of glass fiber reinforced polyamide
Thermo switches are available for the standard mounting size M12 only
