Model RD5100 Mono-Block Valve
30 GPM
SPECIFICATIONS
- Pressure Rating
- Maximum Operating Pressure: 3,000 psi
- Maximum Tank Pressure: 500 psi
- Nominal Flow Rating: 30 GPM
- Filtration: For general purpose valves, fluid cleanliness should meet the ISO 4406 19/17/14 level.
- For extended life or for pilot operated valves, the 18/16/13 fluid cleanliness level is recommended.
- Maximum Operating Temp: 180°F
- Weight: Approx 14 Ibs
STANDARD FEATURES
- Economical monoblock construction of high tensile strength gray cast iron
- Load check on each spool
- Hard Chrome Plated Spools
- Optional 4 Position Float on 1st spool
- Differential poppet style relief, adjustable from 1,500 to 3,000 psi (also available in low pressure version adjustable from 500 to 1,500 psi)
- Power beyond and closed center capability
- Reversible Handle
- Solenoid Actuated Option Available
- Cable Control available
| Item Number | RD513CA5A4B1 STOCKED ITEM |
| Port Size | 3/4 NPTF In/Out 3/4 NPTF Work |
| Spool Type | 4 Way, 3 Position Tandem Center |
| Spool Attachments | 3 Position Spring Center to Neutral |
| Relief Valve | Differential Poppet Adjustable 1500-3000 PSI Set at 2000 PSI |
| Inlet Location | End |
| Outlet Location | End |
| Power Beyond | Conversion Plug Installed |
| Handle | With Complete Handle Assembly |
Model RD5200 Mono-Block Valve
25 GPM
SPECIFICATIONS
- Pressure Rating
- Maximum Operating Pressure: 3,000 psi
- Maximum Tank Pressure: 500 psi
- Nominal Flow Rating: 30 GPM
- Filtration: For general purpose valves, fluid cleanliness should meet the ISO 4406 19/17/14 level.
- For extended life or for pilot operated valves, the 18/16/13 fluid cleanliness level is recommended.
- Maximum Operating Temp: 180°F
- Weight: Approx 14 Ibs
STANDARD FEATURES
- Economical monoblock construction of high tensile strength gray cast iron
- Load check on each spool
- Hard Chrome Plated Spools
- Optional 4 Position Float on 1st spool
- Differential poppet style relief, adjustable from 1,500 to 3,000 psi (also available in low pressure version adjustable from 500 to 1,500 psi)
- Power beyond and closed center capability
- Reversible Handle
- Solenoid Actuated Option Available
- Cable Control available
| Item Number | Port Size | Spool Type | Spool Attachments |
| RD525CCAA5A4B1 | #12 SAE In/Out #12 SAE Work | 4 Way, 3 Position Tandem Center | Friction Detent (Detent in neutral only) |
| RD525GCGA5A4B1* | #12 SAE In/Out #12 SAE Work | 4 Way, 3 Position Tandem Center Float Spool | Friction Detent (Detent in neutral only) |
*Spool option “G”, and spool attachment “F”, and “G” are available on the first spool only. Spool option “G” must be ordered with spool attachment option “G”.
Model RD5300 Mono-Block Valve
25 GPM
SPECIFICATIONS
- Pressure Rating
- Maximum Operating Pressure: 3,000 psi
- Maximum Tank Pressure: 500 psi
- Nominal Flow Rating: 25 GPM
- Filtration: For general purpose valves, fluid cleanliness should meet the ISO 4406 19/17/14 level.
- For extended life or for pilot operated valves, the 18/16/13 fluid cleanliness level is recommended.
- Maximum Operating Temp: 180°F
- Weight: Approx 34 Ibs
STANDARD FEATURES
- Economical monoblock construction of high tensile strength gray cast iron
- Load check on each spool
- Hard Chrome Plated Spools
- Optional 4 Position Float and Joystick Handle
- Differential poppet style relief, adjustable from 1,500 to 3,000 psi (also available in low pressure version adjustable from 500 to 1,500 psi)
- Power beyond and closed center capability
- Reversible Handle
- Solenoid Actuated Option Available
- Optional 4 Position Float and Joystick Handle
- Ideal for loader application
- Cable Control available
| Item Number | Port Size | Spool Type | Spool Attachments |
| RD535GCCGAA5A4B1* | #12 SAE In/Out #12 SAE Work | 4 Way, 3 Position Tandem Center | Friction Detent (Detent in neutral only) |
*Spool option “G”, and spool attachment “F”, and “G” are available on the first spool only. Spool option “G” must be ordered with spool attachment option “G”.
| Item Number | Description | |
| 660150039 STOCKED ITEM | Full Handle Kit for Prince RD5000 Series Valve Includes mounting bracket, one handle and the pins necessary to secure the handle to the valve. | |
| RD512CA5A4B1 STOCKED ITEM | Single Spool Valve 4 Way 3 Position, 3/4” In & Out, 1/2” Work Ports, Spring Center |
Model RD2500 Mono-Block Valve
20 GPM
SPECIFICATIONS
- Pressure Rating
- Maximum Operating Pressure: 3,000 psi
- Maximum Tank Pressure: 500 psi
- Nominal Flow Rating: 20 GPM
- Filtration: For general purpose valves, fluid cleanliness should meet the ISO 4406 19/17/14 level.
- Relief valve setting: 1,500 PSI
- Maximum Operating Temp: 180°F
- Weight: Approx 10 Ibs
STANDARD FEATURES
- Economical monoblock construction of high tensile strength gray cast iron
- Load check
- Hard Chrome Plated Spool
- Optional 4 Position Float on 1st spool
- Adjustable ball spring relief (1,000 PSI to 3,000 PSI)
- Open center to closed center conversion available on some models
| Model No. | Spool Type | Spool Action | In/Out Port Size | Work Port Size | Relief Setting |
| RD-2555-T4-ESA1 | 4-Way, 3 Position | Spring center to neutral | 1/2″ NPTF | 1/2″ NPTF | 1500 PSI @ 12 GPM |
| RD-2575-T4-ESA1 STOCKED ITEM | 4-Way, 3 Position | Spring center to neutral | 3/4″ NPTF | 1/2″ NPTF | 1500 PSI @ 12 GPM |
| RD-2575-T4-EDA1 | 4-Way, 3 Position | 3 position detent | 3/4″ NPTF | 1/2″ NPTF | 1500 PSI @ 12 GPM |
| RD-2575-M4-ESA1 STOCKED ITEM | 4-Way, Motor Spool | Spring center to neutral | 3/4″ NPTF | 1/2″ NPTF | 1500 PSI @ 12 GPM |
Model LS3000 Logsplitter Valve
20 GPM
SPECIFICATIONS
- Pressure Rating
- Maximum Operating Pressure: 2,750 psi
- Maximum Tank Pressure: 150 psi
- Nominal Flow Rating: 25 GPM
- Relief valve setting: 2,250 PSI
- Filtration: For general purpose valves, fluid cleanliness should meet the ISO 4406 19/17/14 level
- Maximum Operating Templerature: 180°F
- Weight: Approx 10 Ibs
| Prince Model Number | Spool Action | Spool Type | In/Out Port Size | Work Port Size | Relief Setting |
| LS-3000-1 Log Splitter Valve STOCKED ITEM | Pressure Release Detent Spool Out Spring Center to Neutral | 4-Way 3-Position | 3/4″ NPTF | 1/2″ NPTF | 2250 PSI @ 3 GPM |
Available in: All States
Model LSR3060 Logsplitter Valve
20 GPM
SPECIFICATIONS
- Pressure Rating
- Maximum Operating Pressure: 3,500 psi
- Maximum Tank Pressure: 150 psi
- Nominal Inlet Flow Rating: 4 GPM
- Relief valve setting: 2,250 PSI
- Pressure release detent from spool in w/ spring center to neutral
- 4 position spool with normal extend and retract positions and a 4th rapid extend position
- Filtration: For general purpose valves, fluid cleanliness should meet the ISO 4406 19/17/14 level
- Maximum Operating Temperature: 180°F
- Weight: Approx 10 lbs
STANDARD FEATURES
- Hydraulically balanced, hard chrome plated spool
- Handle can be installed in “up” or “down” position
- Extend flows of up to 25 GPM with inlet flows of 4 GPM
- Relief valve adjustable up to 3,500 PSI
- Tandem center spool
- Manual shift from high speed mode to high force mode
- Spring center 4 position spool with soft stop between
- Pressure release detent on retract
Available in: All States
Model RD4100 Mono-Block Valve
15 GPM
SPECIFICATIONS
- Pressure Rating
- Maximum Operating Pressure: 3,500 psi
- Maximum Tank Pressure: 150 psi
- Nominal Inlet Flow Rating: 4 GPM
- Relief valve setting: 2,250 PSI
- Pressure release detent from spool in w/ spring center to neutral
- 4 position spool with normal extend and retract positions and a 4th rapid extend position
- Filtration: For general purpose valves, fluid cleanliness should meet the ISO 4406 19/17/14 level
- Maximum Operating Temp: 180°F
- Weight: Approx 10 lbs
STANDARD FEATURES
- Hydraulically balanced, hard chrome plated spool
- Handle can be installed in “up” or “down” position
- Extend flows of up to 25 GPM with inlet flows of 4 GPM
- Relief valve adjustable up to 3,500 PSI
- Tandem center spool
- Manual shift from high speed mode to high force mode
- Spring center 4 position spool with soft stop between
- Pressure release detent on retract

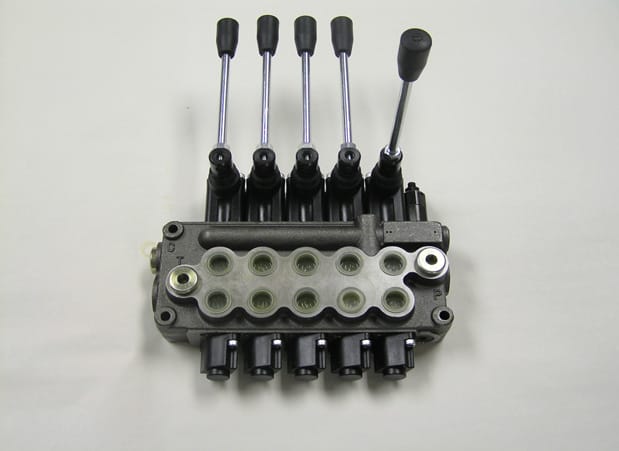

Wolverine MB Mono-block Directional Control Valves
Features
- 1-6 Spool monoblock
- 3500 psi
- #8 O-ring In/Out ports
- #8 Work ports
- Interchangable motor spool
- Double acting
- Load check
- Open center
- Adjustable relief
- Enclosed handle
- Convertible to power beyond and closed center capability
| VALVE MODEL NO. | NO. OF SPOOLS | SPOOL TYPE, ACTION | WEIGHT (POUNDS) |
| MB11B5C1 STOCKED ITEM | 1 | 4 WAY 3 POSITION, SPRING CENTER TO NEUTRAL, ALL SPOOLS | 6.9 |
| MB11C5C1 | 1 | 4 WAY 3 POSITION MOTOR, 3 POSITION DETENT, ALL SPOOLS | 7.2 |
| MB11G5C1 | 1 | 4 WAY 4 POSITION FLOAT, SPRING CENTER W/FLOAT DETENT | 7.2 |
| MB21BB5C1 STOCKED ITEM | 2 | 4 WAY 3 POSITION, SPRING CENTER TO NEUTRAL, ALL SPOOLS | 9.7 |
| MB21GB5C1 | 2 | 4 WAY 4 POSITION FLOAT, SPRING CENTER W/FLOAT DETENT, 1st SPOOL 4 WAY 3 POSITION, SPRING CENTER TO NEUTRAL, 2nd SPOOL | 10.2 |
| MB31BBB5C1 | 3 | 4 WAY 3 POSITION, SPRING CENTER TO NEUTRAL, ALL SPOOLS | 12.8 |
| MB41BBBB5C1 | 4 | 4 WAY 3 POSITION, SPRING CENTER TO NEUTRAL, ALL SPOOLS | 16.1 |
| MB51BBBBB5C1 | 5 | 4 WAY 3 POSITION, SPRING CENTER TO NEUTRAL, ALL SPOOLS | 19.2 |
| MB61BBBBBB5C1 | 6 | 4 WAY 3 POSITION, SPRING CENTER TO NEUTRAL, ALL SPOOLS | 22.2 |
