Multifunctional Gate Box

EUCHNER’s MGB (Multifunctional Gate Box) is a unique interlocking or guard locking system for the protection of safety doors on machines and systems. It is more than a safety switch, more than a bolt, and offers a lot more functionality. The MGB will work on both hinged and sliding doors. The basic system comprising of the handle module and interlocking/locking module includes numerous functions. Guard locking, escape release or other functions such as buttons for start/stop and Emergency stop are available. The recently updated version is equipped with changeable color lenses for pushbuttons, allowing the customer to use their desired colors. And with its modular design, an MGB control module can be added to function as a small operator panel.

EUCHNER’s MGBS combines a RFID locking switch, handle, and operator functions into an all-in-one sleek slim design.

Features

• Locking force of 3,900 N

• LED detailed diagnostics

• Wire up to 20 MGBS switches in series

• Mechanical locking or electrical locking

• Meets all requirements of ISO 14119

• Cat. 4 / PL e

Benefits

• Space saving slim design

• Easy installation

• Optional e-stop and control buttons

• Optional escape release

The MGB safety system can be connected to almost any safety relay or to any safety control system. With a safety control system, the short circuit monitoring on the safety control system must be disabled as this function is performed by the MGB. Performance Level e is retained.

Features RFID transponder technology Integrated lockout mechanism Auxiliary Release on front Up to 4 monitoring outputs available Optional escape release with door handle Optional buttons and indicators can be integrated directly into the housing Actuating direction is easily changed without disassembly Non-locking, Mechanical locking and Electrical locking versions available New changeable pushbutton color versions available Connection through threaded openings, RC18 or M12 12-pin plugs Benefits LED indicator continuously provides all important system information Space for up to four Controls and Indicators Solid door stop can withstand loads up to 300 Joules Lockout mechanism Can be used on both sliding doors and hinged doors Up to 10 MGB-AR units can be chained in series Flexible DIP switch configuration Handle rotation can be changed for Right or Left hinged doors

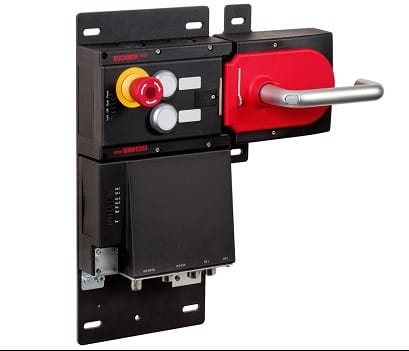

MGB WITH ETHERNET/IP EUCHNER’s MGB with Ethernet/IP: The MGB basic system already contains everything what is needed to protect a safety guard in PLe/category 4 according to EN ISO 13849-1. In the EtherNet/IP version, we now also make the wiring easier for you. You define which element is to be integrated and the related function. The MGB supplies the protocol frame with the necessary CIP Safety input and output bytes required. Whether interlocking, guard locking, escape release or other fuctions such as push buttons for start/stop, emergency stop, etc. – The MGB meets all your requirements for safety-related applications. And if your needs grow, the MGB system grows with them. Due to the sophisticated modular design, the evaluation modules can quickly become a small operator panel. Comprehensive diagnostic information in the form of EtherNet/IP messages provides a fast and detailed overview of the device status. Due to the ease with which parameters can be set, even the replacement of the system for service is a simple matter and can be performed in a few minutes.  Features Integrated Ethernet/IP switch CIP Safety Protocol Handle, bolt and guard locking in one device Optional escape release with door handle Space for additional functions Reinforced plastic, die-cast zinc nickel-plated, stainless steel housing Benefits Flexible and extendable Handle rotation can be changed for Right or Left hinged doors Can be used on both sliding doors and hinged doors Simple parameterization Detailed diagnostics Connection via standard M12 connectors Maximum safety, Category 4/PL e

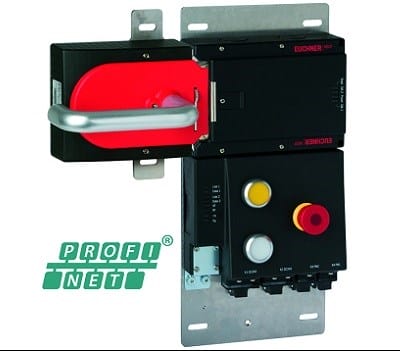

MGB WITH PROFINET EUCHNER’s MGB with PROFINET (Multifunctional Gate Box with PROFINET): The MGB basic system already contains everything what is needed to protect a safety guard in PLe/category 4 according to EN ISO 13849-1. In the PROFINET version we are additionally relieving you of time consuming wiring now. You define, which functionality is required and simply integrate the required elements to achieve your wishes. The MGB delivers the protocol frame with the PROFINET input and output data bytes required for it. Whether interlocking, guard locking, escape release or other fuctions such as push buttons for start/stop, emergency stop, etc. – The MGB meets all your requirements for safety-related applications. And if your needs grow, the MGB system grows with them. Due to the sophisticated modular design, the evaluation modules can quickly become a small operator panel. Extensive diagnostic information in the form of PROFINET messages made a fast and targeted trouble shooting possible. Because of the simple parameter setting in PROFINET, even the exchange of the system is a simple matter in case of service and can be carried out within a few minutes. Features RFID transponder technology Integrated lockout mechanism Auxiliary Release on front Integrated PROFINET-RT-Switch PL e/category 4 for all safety functions Handle, bolt and guard locking in one device Optional escape release with door handle Benefits Solid door stop can withstand loads up to 300 Joules Can be used on both sliding doors and hinged doors Flexible and extendable Simple parameterization AIDA-conform connection Detailed diagnostic
