Hydraforce Electro-Proportional Valves

Evolution Motion Solutions proudly partners with HydraForce to deliver the finest Cartridge Electro Proportional Valves available. Our collaboration ensures that customers in multiple locations across the United States in Alabama, Arizona, Arkansas, Louisiana, Mississippi, Montana, N.W. Florida, Nevada, New Mexico, Oklahoma, S. Idaho, Texas, Utah, W. North Dakota, W. South Dakota and Wyoming Our commitment to excellence, combined with the reliability and performance of HydraForce, guarantees that you receive top-quality Cartridge Electro Proportional Valves components for your specific needs.

PROPORTIONAL FLOW CONTROL VALVES, 2-WAY

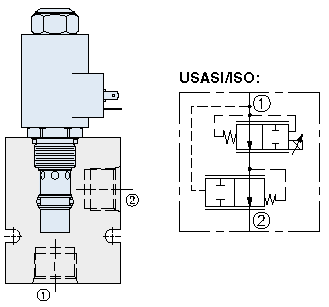

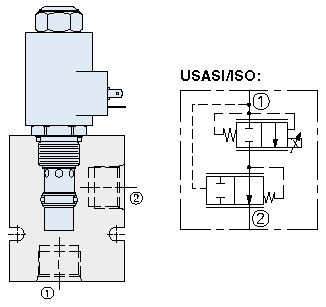

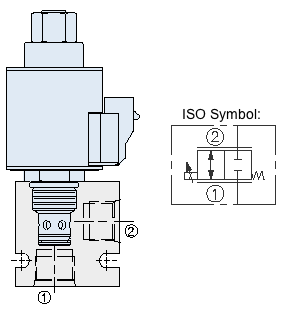

Proportional Flow Control, 2-Way, Normally Closed

*HyPerformance™ High Operating Pressure
Rated up to 350 bar (5075 psi)

FlowModel
5.8 gpmSP08-20
8 gpmSP08-20A
18 gpmSP10-20
14 gpm*HSP10-20
27 gpmSP12-20
70 gpmSP16-20
70 gpm*HSP16-20

low Control, 2-Way, Normally Open

*HyPerformance™ High Operating Pressure
Rated up to 350 bar (5075 psi)

FlowModel
5.8 gpmSP08-21
16 gpmSP10-21
14 gpm*HSP10-21
53 gpmSP12-21
70 gpm*SP16-21

l Flow Control, 2-Way, Normally Closed, Bi-Directional

FlowModel
8 gpmSP08-22

Proportional Flow Control, 2-Way, Normally Closed, Metering

FlowModel
6 gpmSP08-24
7 gpmSP10-24

Proportional Flow Control, 2-Way, Normally Open, Bi-Directional

FlowModel
4 gpmSP08-25
5 gpmSP10-25

PROPORTIONAL DIRECTIONAL VALVES with
Load Sense, 3-PORT and 4-PORT

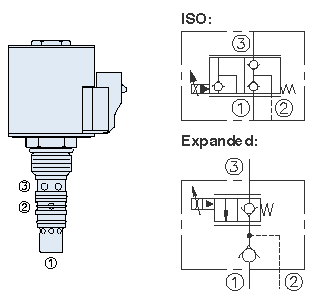

3-Port, N.C., with Check-Isolated Load Sense

FlowModel
15 gpmSPCL10-30
40 gpmSPCL16-30

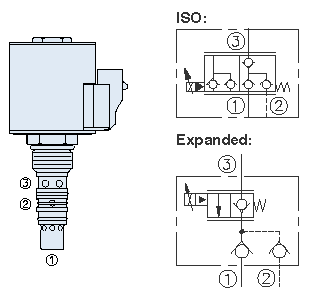

Proportional Directional Control, 3-Port, N.C.,
with Non-Isolated Load Sense

FlowModel
15 gpmSPCL10-32
40 gpmSPCL16-32

Proportional Directional Control, 4-Port, N.C., with Non-Isolated Load Sense

FlowModel
40 gpmSPCL16-40

PROPORTIONAL DIRECTIONAL VALVES, 4-WAY

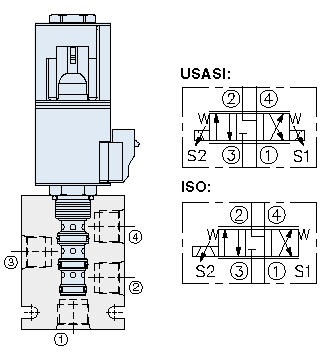

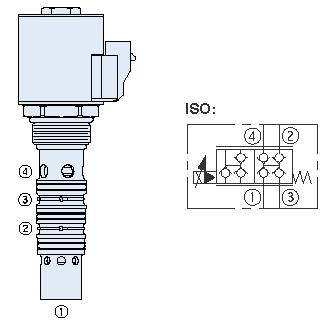

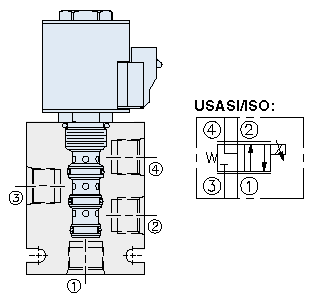

Proportional Directional Control, 4-Way, 2-Position, Normally Closed

FlowModel
3 gpmSP08-46R
6 gpmSP10-46R

Proportional Directional Control, 4-Way, 3-Position, Closed Center

FlowModel
3 gpmSP08-47C
2 gpmSP08-47CL
6 gpmSP10-47C

Proportional Directional Control, 4-Way, 3-Position, “Motor Spool”

FlowModel
3 gpmSP08-47D
2 gpmSP08-47DL
6 gpmSP10-47D

PROPORTIONAL DIRECTIONAL VALVES, 5-WAY

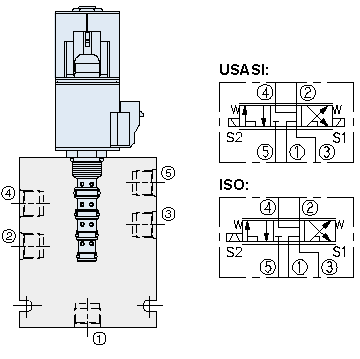

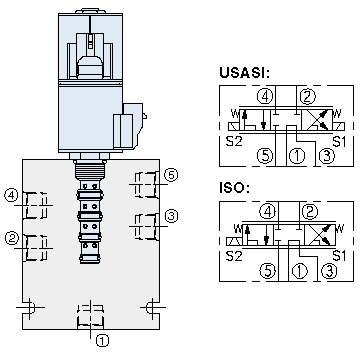

Proportional Directional Control, 5-Way, 3-Position, for Load Sense Applications

FlowModel
6 gpmSP10-57C

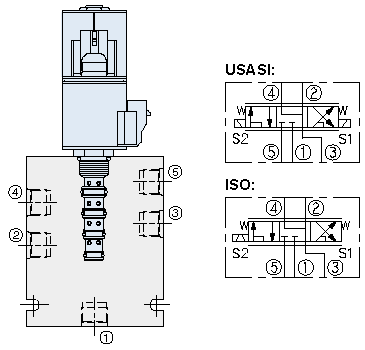

Proportional Directional Control, 5-Way, 3-Position, with Load Sense

FlowModel
2.5 gpmSP08-57D
6 gpmSP10-57D

Proportional Directional Control, 5-Way, 3-Position, for Brake Release Applications

FlowModel
6 gpmSP10-58C

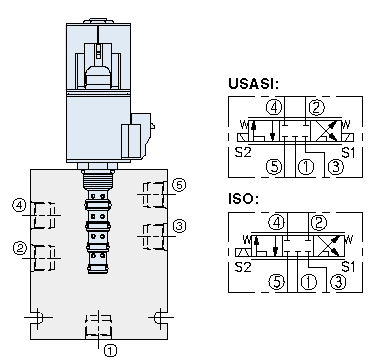

Proportional Directional Control, 5-Way, 3-Position, with Brake Release Port

FlowModel
4 gpmSP08-58D
6 gpmSP10-58D

PROPORTIONAL FLOW CONTROL VALVES

Proportional Flow Control, Restrictive, Normally Closed

*HyPerformance™ High Operating Pressure, rated up to 350 bar (5075 psi)

Note: Special Variation Cavity Required.

FlowModel
17 gpmPV72-20
18 gpm*HPV12-20

Proportional Flow Control, Restrictive, Normally Open

*HyPerformance™ High Operating Pressure, rated up to 350 bar (5075 psi)

New Models Italicized

FlowModel
15 gpmPV72-21
16 gpm*HPV12-21

Proportional Flow Control, Normally Closed

New Models Italicized

FlowModel
45 gpmPV16-23

PROPORTIONAL FLOW CONTROL VALVES, 3-Way

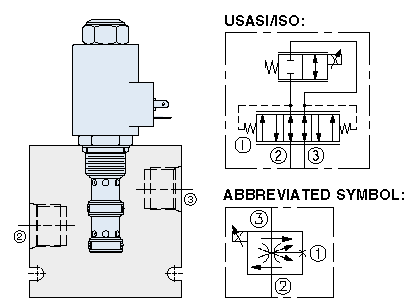

Proportional Flow Control, Bypass, Normally Closed

FlowModel
6 gpmPV08-30
8 gpmPV70-30
17 gpmPV72-30
40 gpmPV76-30A

Proportional Flow Control, Bypass, Normally Closed

FlowModel
50 gpmPV42-M30

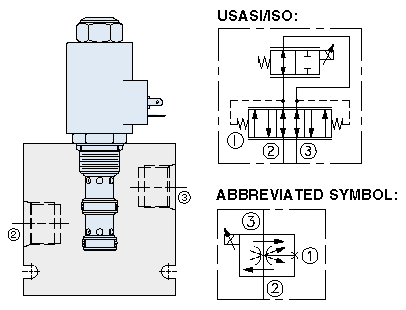

Proportional Flow Control, Bypass, Normally Open

FlowModel
6 gpmPV08-31
8 gpmPV70-31
14 gpmPV72-31
21 gpmPV76-31A

Proportional Flow Control, Normally Closed

Note: Proportional valve flow rates are determined by range orifice sizing and pressure compensator used; consult factory.

FlowModel
10 gpmPV70-33
20 gpmPV72-33

Proportional Flow Control, Normally Open

Note: Proportional valve flow rates are determined by range orifice sizing and pressure compensator used; consult factory.

FlowModel
10 gpmPV70-35
23 gpmPV72-35

PROPORTIONAL FLOW REGULATORS

Proportional Flow Regulator, Pressure Compensated, 2-Port, Normally Closed

FlowModel
8 gpmPFR70-33E
16 gpmPFR72-33L

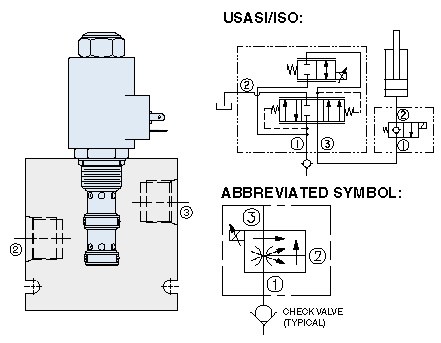

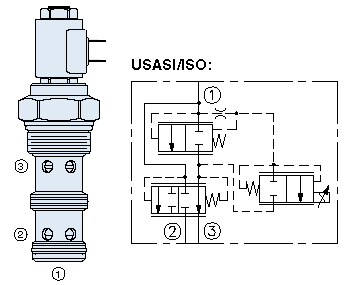

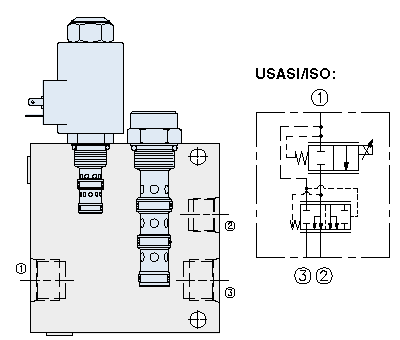

Proportional Flow Regulator, Pressure Compensated, 3-Port, Normally Closed, Priority Bypass

FlowModel
8 gpmPFR70-33F
8 gpmPFR70-33J
16 gpmPFR72-33J

PROPORTIONAL BI-DIRECTIONAL FLOW CONTROL VALVES

Proportional Flow Control, Bi-Directional, Normally Closed

FlowModel
5 gpmZL70-30
13 gpmZL72-30

Proportional Flow Control, Bi-Directional, Normally Open

FlowModel
5 gpmZL70-31
13 gpmZL72-31

Proportional Flow Control, Bi-Directional, Normally Closed

FlowModel
5 gpmZL70-36
12 gpmZL72-36

PROPORTIONAL PRESSURE CONTROL, RELIEF

Proportional Pressure Control, Relief, Increasing Pressure with Increasing Current

*Rated for 345 bar/5000 psi

New Models Italicized

FlowModel
1 gpmTS08-20
3.2 gpmTS38-20
2 gpm*TS58-20

Proportional Pressure Control, Relief, Decreasing Pressure with Increasing Current

New Models Italicized

FlowModel
0.3 gpmTS38-21
0.5 gpm*TS58-21F

Proportional Pressure Control, Pilot-Operated Relief, Increasing Pressure with Increasing Current

FlowModel
25 gpmTS10-26
50 gpmTS12-26

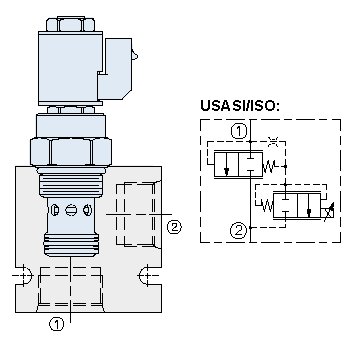

Proportional Pressure Control, Pilot-Operated Relief, Decreasing Pressure with Increasing Current

FlowModel
5 gpmTS08-27
20 gpmTS10-27
50 gpmTS12-27

PROPORTIONAL PRESSURE CONTROL VALVES, REDUCING/RELIEVING

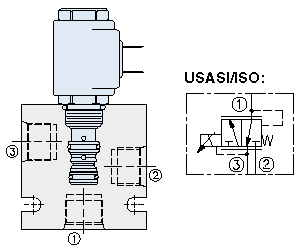

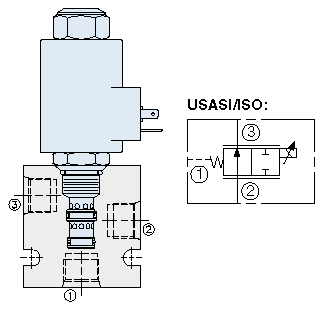

Proportional Pressure Control, Reducing/Relieving, Internal Pilot Operated

FlowModel
8 gpmTS98-30

Proportional Pressure Control, Reducing/Relieving, Internal Pilot Operated

FlowModel
10 gpmTS90-31

Proportional Pressure Control, Reducing/Relieving, Internal Pilot Operated, Drop-In Style

FlowModel
30 gpmTS98-T34

Proportional Pressure Control, Reducing/Relieving, Pilot Operated

FlowModel
16 gpmTS10-36
50 gpmTS12-36

Proportional Pressure Control, Reducing/Relieving, Direct-Operated

FlowModel
1.05 gpmEHPR08-33

Proportional Pressure Control, Reducing/Relieving, Direct-Operated, Drop-In Style

FlowModel
1 gpmEHPR98-T33

Proportional Pressure Control, Reducing/Relieving, Direct-Operated, Drop-In Style

New Models Italicized

FlowModel
1.5 gpmEHPR98-T35
5 gpmEHPR98-T38

STANDARD COILS AND PROPORTIONAL VALVE COILS

Coil

G

DIN 43650 Connector

Pins 1 and 2 are not polarity-sensitive. Ground pin is not used.

24 VDC

Part Number 6356024 STOCKED ITEM



Part Number 6356024STOCKED ITEM
Part Number 6356024STOCKED ITEM
