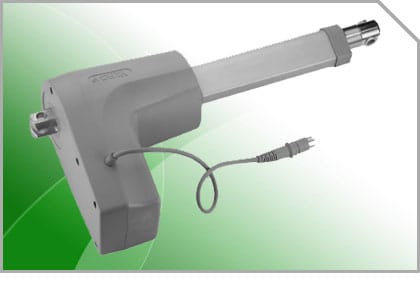

LAN3
| Screw Type | ACME |
| Weight* | 5.31 kg |
| Protection | IP 54 |
| Compatible Controller | LAK2J/LAK6B |
| Working Temperature | +5°C ~ 40°C |
*Stroke length 200mm*Option: [1] IP66, [2] Potentiometer 10Kohm (RL=S+221, S<200mm / RL=S+272, S:200~500mm), [3] Mechanical spline (RL=S+252, S<200mm / RL=S+302, S:200~500mm), [4] Safety nut (RL=S+222, S<200mm / RL=S+272, S:200~500mm), [5] Mechanical quick release, [6] Back fixture turned 90°, [7] Fast motor 24Q, [8] 36VDC Motor

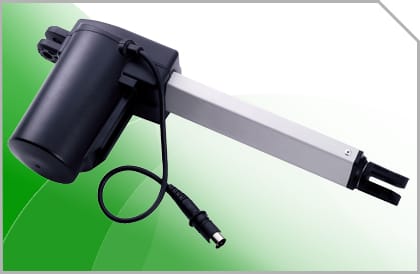

LAN5
| Screw Type | ACME |
| Weight* | 1.96kg |
| Protection | IP 54 |
| Compatible Controller** | All controllers |
| Working Temperature | +5°C ~ 40°C |
*Stroke length 200mm
**Notice the type of connector: Audio/DIN 4PIN
Option: [1] Hall Sensor, [2] Safety nut, [3] Mechanical Spline (push only), [4] Back fixture turned 0°, 45°, 90°, 135°, [5] IP65, [6] Back fixture and rodeye hole ø12.1mm

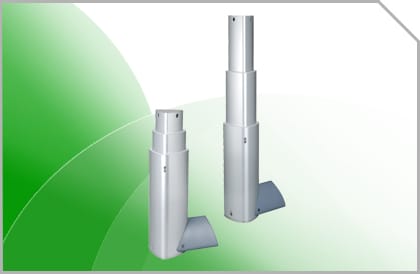

LAC3
| Screw Type | ACME |
| Weight* | 8.1kg |
| Protection | IP54 |
| Compatible Controller** | All controllers |
| Working Temperature | +5° C~40° C |
*Stroke length 400mm
**Notice the type of connector: Audio/DIN 4PIN
Option: [1] Position Feedback: Potentiometer
