(1.0 to 11.6 cc) GC Pumps

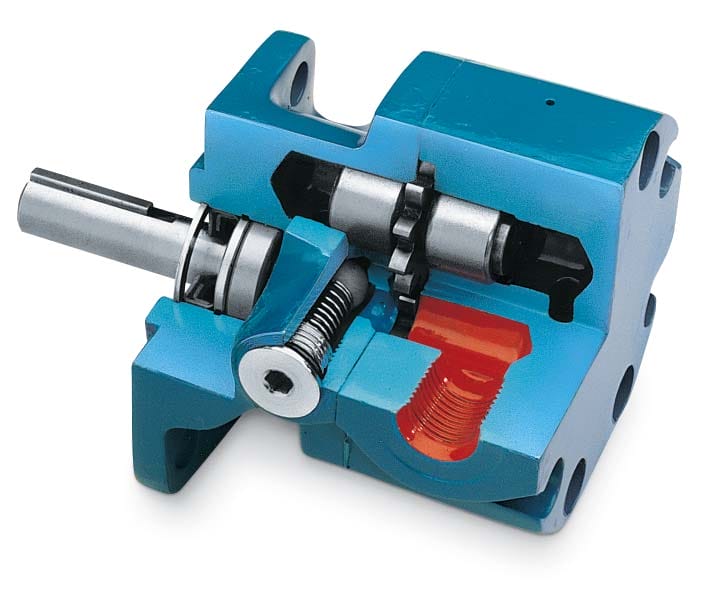

High-efficiency cast iron gear pumps designed for reliability and long life. The range of standard options allows the specifier to custom design a complete system and reduce component cost and assembly time. Standard options include three basic mounting flanges; five shaft designs; eight relief, check and solenoid valve combinations; five port location options; and five seal and bearing options. Available in single and multiple configurations.
Displacements:
1.0 to 11.6 cc (0.065 to 0.711 in3)
Maximum Pressure:
275 Bar (4,000 psi)
Maximum Speed:
4,000 rpm
| Concentric Assembly | Displacement (Cu.-In./Rev.*) | GPM @ 1800 RPM & 1000 PSI | GPM @ 3600 RPM & 1000 PSI | Max. Continuous PSI | SAE Port (In.) B | Case Drain | ||
| Inlet | Outlet | |||||||
| 4-Bolt Mount, 1/2” Straight Keyed Shaft, SAE Side Ports | ||||||||
| 1300093 STOCKED ITEM | 0.065 | 0.4 | 0.8 | 3000 | 9/16-18 | 9/16-18 | 7/16-20 | |
| 1303897 | 0.097 | 0.6 | 1.2 | 3000 | 9/16-18 | 9/16-18 | 7/16-20 | |
| 1300094 STOCKED ITEM | 0.129 | 0.8 | 1.6 | 3000 | 3/4-16 | 3/4-16 | 7/16-20 | |
| 1300095 STOCKED ITEM | 0.194 | 1.2 | 2.5 | 3000 | 3/4-16 | 3/4-16 | 7/16-20 | |
| 1303898 | 0.258 | 1.6 | 3.3 | 3000 | 3/4-16 | 3/4-16 | 7/16-20 | |
| 1303899 | 0.323 | 2.0 | 4.1 | 3000 | 7/8-14 | 7/8-14 | 7/16-20 | |
| 1303900 | 0.388 | 2.4 | 5.0 | 3000 | 7/8-14 | 7/8-14 | 7/16-20 | |
| 1303901 | 0.453 | 2.8 | 5.8 | 2750 | 7/8-14 | 7/8-14 | 7/16-20 | |
| 1303902 | 0.517 | 3.1 | 6.6 | 2500 | 7/8-14 | 7/8-14 | 7/16-20 | |
| 1303903 | 0.647 | 3.9 | 8.3 | 2000 | 7/8-14 | 7/8-14 | 7/16-20 | |
| 1303904 | 0.711 | 4.3 | 9.1 | 1800 | 7/8-14 | 7/8-14 | 7/16-20 | |
| (*) 1 cu.-in./rev. = 16.4 cu.-cm (cc). | ||||||||
| 2-Bolt SAE “AA” Mount w/ 2.0” Pilot, 1/2” Straight Keyed Shaft, SAE Side Ports | ||||||||
| 1300308 | 0.388 | 2.4 | 5.0 | 1600 | 7/8-14 | 7/8-14 | 7/16-20 | |
Concentric (1.0 to 11.6 cc) GC Pumps
