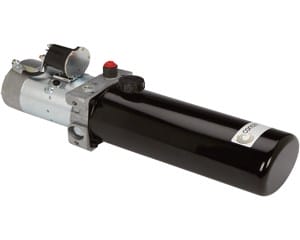

Concentric DC Power Hydraulic Power Units

Description

Our hydraulic power units are designed specifically to operate on DC electric power. Each power unit is a custom selected assembly consisting of a high performance hydraulic pump, reservoir, motor, internal relief valve, and load holding check valve. They can be controlled with remote valving, integral directional control or manual valves. The power units can be coupled via suitable hydraulic lines to a wide range of operating mechanisms. They normally operate hydraulic cylinders, but can be used with any other hydraulic actuating device.

Specifications

DC HYDRAULIC POWER UNIT DIMENSIONS
Stock No.	Length	Width	Height
1300754	20.4˝	6.7˝	10.5˝
1300751	20.2˝	6.0˝	7.3˝
1300757	20.4˝	6.0˝	7.3˝

All units have:

• 12 or 24 VDC motors
• Adjustable relief valve preset at factory
• Load holding check valve
• Reservoirs plumbed for horizontal / vertical mount
• Various size cylindrical/rectangular reservoirs
• 9/16˝-18 SAE outlet and return ports, 1303835 = 1/4˝-18 NPTF ports
• 140 x 170 mesh inlet strainer
• See HE Power Packs catalog for complete options available

See HE Power Packs catalog for complete options available:

• Adaptor Kit 1303650 allows for 4-way, 2 & 3-Position circuits, stacked manifolds with D03 as an option.
• W300 high performance, pressure balance pumps are now available.
• Two-Stage, 5gpm High/low pump 1303698 is now available. 5 gpm @ 3600 rpm.

DC HYDRAULIC POWER UNIT PERFORMANCE
Distributor Stock No.	Nom. GPM	Oper. PSI	Motor Voltage	Nominal ON-TIME	Model Code / Description (Adapter) See following pages for Adapter details
1300754	2.4 1.4	500 2000	12 12	66 secs on/234 off 36 secs on/264 off	HE2-BE000-72-173-A-80-AD-0-K-4-AE-0-B-00-00 Manual Lift-Hold-Lower
1300751	2.4 1.4	500 2000	12 12	66 secs on/234 off 36 secs on/264 off	HE2-BB012-72-173-A-80-AD-0-K-2-AE-0-B-00-00 12 VDC Electric Lift-Hold-Lower
1300757	2.4 1.4	500 2000	12 12	66 secs on/234 off 36 secs on/264 off	HE2-BA000-72-173-A-80-AD-0-K-2-AE-0-N-00-00 Base Unit

To order a complete power pack, simply work through the options below,
creating a model number as shown in the example.
DO NOT LEAVE ANY BLANK FIELDS.

STANDARD POWER PACK
I	II	III	IV	V	VI
ADAPTER SIZE	ADAPTER OPTIONS	PUMP TYPE / SIZE	RELIEF VALVE SETTING	FLOW CONTROL VALVE	MOTOR
Example	HE2	BH012	26	150	E	82
Your Options	HE2
VII	VIII	IX	X	XI	XII
RESERVOIR	MOTOR POSITION	START SWITCH	START SWITCH POSITION	TUBE KIT	BREATHER POSITION
Example	AF	6	H	2	KC	0
Your Options
XIII	XIV	XV	XVI
COIL / LEVER POSITION	ACCESSORY	ACCESSORY	DESIGN SERIES
Example	N	00	00	A3
Your Options	A3
THE HE 2000 POWER PACK EXAMPLE SHOWN ABOVE consists of a 3-position / 4-way valve, dual pilot-operated check valves, a 2.6 cc/rev. pressure-balanced pump, a 12 volt two terminal DC motor with start switch, and a 1.3 quart plastic reservoir. The relief valve has been set at 150 BAR (2175 PSI) and the power pack has a 1 gallon per minute (GPM) / 4 liter per minute (LPM) flow control valve incorporated into the return line circuit. The power pack is intended to be mounted in a vertical position with the motor terminals and breather cap opposite to PAD A.

I. ADAPTER SIZE
HE2 = HE 2000
II. ADAPTER OPTIONS Pick a valve type and corresponding coil voltage, if applicable.
VALVE TYPE	KIT #		+ COIL VOLTAGE		KIT #
BA	Adapter, P & T Ports, Relief Valve & Check Valve	Adapter Port Plug	1303649 1300191	BA000
CA	Adapter, P & T Ports, Relief Valve & Check Valve	Adapter Port Plug AC Motor Adapte	1303649 1300191 1303549	CA000
BB	Solenoid Lowering Adapter	Adapter Solenoid Release Valve	1303649 1303534	BB012* BB024*	12 Volt DC 24 Volt DC	1300914 1300915
CB	Solenoid Lowering Adapter	Adapter Solenoid Release Valve AC Motor Adapter	1303649 1303534 1303549	CB115* CB230* CB012* CB024*	115 Volt AC 230 Volt AC 12 Volt DC 24 Volt DC	1303576 1303577 1300914 1300915
BE	Manual Lowering Adapter w/DC Contactor	Adapter Manual Release Valve w/Pilot Contactor	1303649 1300192	BE000
CE	AC Manual Lowering Valve Adapter	Adapter Manual Release Valve AC Motor Adapter	1303649 1303533 1303549	CE000
Motor Spool (DC Version, AC Version and DC Version w/Double P.O. Check)
BF	Manifold Adapter w/3-Pos. 4-Way Valve (Motor Spool) DC Version	Adapter Manifold Motor Spool Valve Cavity Plug	1303650 1300866 1303382 1303540	BF012+ BF024+	12 Volt DC 24 Volt DC	1300914 1300915
BH	Manifold Adapter w/3-Pos. 4-Way Valve (Motor Spool) DC Version w/Double P.O.	Adapter Manifold Motor Spool Valve Double P.O.Check	1303650 1300866 1303382 1303538	BH012+ BH024+	12 Volt DC 24 Volt DC	1300914 1300915
CF	Manifold Adapter w/3-Pos. 4-Way Valve (Motor Spool) AC Version	Adapter Manifold Motor Spool Valve Cavity Plug Riser Block AC Motor Adapte	1303650 1300866 1303382 1303540 1300855 1303549	CF115+ CF230+ CF012+ CF024+	115 Volt AC 230 Volt AC 12 Volt DC 24 Volt DC	1303576 1303577 1300914 1300915
Tandem Center Spool (DC and AC Versions)
BJ	Manifold Adapter w/3-Pos. 4-Way Valve (Tandem Center Spool) DC Version	Adapter Manifold Tandem Center Valve Cavity Plug	1303650 1300856 1303530 1303540	BJ012+ BJ024+	12 Volt DC 24 Volt DC	1300914 1300915
CJ	Manifold Adapter w/3-Pos. 4-Way Valve (Tandem Center Spool) AC Version	Adapter Manifold Tandem Center Valve Cavity Plug Riser Block AC Motor Adapter	1303650 1300856 1303530 1303540 1300855 1303549	CJ115+ CJ230+ CJ012+ CJ024+	115 Volt AC 230 Volt AC 12 Volt DC 24 Volt DC	1303576 1303577 1300914 1300915
Solenoid Operated, 2-Position, 4-Way Normally Open Valve (DC and AC Versions)
BR	Manifold Adapter w/Sol. Operated, 2-Pos., 4-Way Valve DC Version	Adapter Manifold Normally Open Valve Cavity Plug	1303650 1300856 1303529 1303540	BR012* BR024*	12 Volt DC 24 Volt DC	1300914 1300915
CR	Manifold Adapter w/Sol. Operated, 2-Pos., 4-Way Valve AC Version	Adapter Manifold Normally Open Valve Cavity Plug Riser Block AC Motor Adapter	1303650 1300856 1303529 1303540 1300855 1303549	CR115* CR230* CR012* CR024*	115 Volt AC 230 Volt AC 12 Volt DC 24 Volt DC	1303576 1303577 1300914 1300915
BS	Manifold Adapter w/Sol. Operated, 2-Pos., 4-Way Valve DC Version w/P.O. Check	Adapter Manifold Normally Open Valve Single P.O. Check	1303650 1300856 1303529 1303539	BS012* BS024*	12 Volt DC 24 Volt DC	1300914 1300915
Single D03 Valve Manifold (DC and AC Versions) / Double D03 Valve Manifold (AC Version Only)
DA	Manifold Adapter w/ Single D03 Valve Manifold DC Version	Adapter D03 Manifold Bolts	1303650 1300854 1300865	DA000
DB	Manifold Adapter w/ Single D03 Valve Manifold AC Version	Adapter D03 Manifold Bolts Riser Block AC Motor Adapter	1303650 1300854 1300857 1300855 1303549	DB000
DC	Manifold Adapter w/ Double D03 Valve Manifold AC Version Only	Adapter D03 Manifolds (2) Bolts Riser Block AC Motor Adapter	1303650 1300854 (2) 1300858 1300855 1303549	DC000
DM	Manifold Adapter (DC Version)	Adapter	1303650	DM000
AM	Manifold Adapter (AC Version)	Adapter AC Motor Adapter	1303650 1303549	AM000
* Quantity of 1 needed. + Quantity of 2 needed. NOTE: AC coils have 36 inch cables. All DC coils have dual spades.

III. PUMP TYPE/SIZE (/REV.				MAX. PRESSURES
Order Code	Cm.	In.	Kit #	Continuous		Intermittent
W Series Pumps				PSI	BAR	PSI	BAR
08	0.8	.049	1303435	3335	230	3698	255
12	1.2	.073	1303436	3335	230	3698	255
16	1.6	.098	1303437	3335	230	3698	255
20	2.0	.122	1303438	3335	230	3698	255
26	2.6	.153	1303439	3335	230	3698	255
32	3.2	.195	1303440	3335	230	3698	255
38	3.8	.232	1303441	3045	210	3335	230
43	4.3	.262	1303442	2755	190	3045	210
48	4.8	.293	1303443	2465	170	2712	187
57	5.7	.348	1303444	2103	145	2320	160
GC Series Pumps				PSI	BAR	PSI	BAR
70	1.06	.065	1300174	3000	207	4000	276
71	1.59	.097	1300176	3000	207	4000	276
72	2.12	.129	1300171	3000	207	4000	276
73	2.65	.162	1300625	3000	207	4000	276
74	3.18	.194	1300169	3000	207	4000	276
76	4.24	.259	1300172	2300	159	4000	276
77	5.30	.323	1300931	1900	131	3000	207
78	6.36	.388	1300932	1600	110	2500	172

IV. RELIEF VALVE SETTINGS			V. FLOW CONTROL VALVE
Bar	Setting Ranges	Kit #	Description		Kit #
***	014 – 033 BAR (200 – 500 PSI)	1303659	A	None	N/A
034 – 103 BAR (501 – 1500 PSI)	1303660	E	4 LPM (1 GPM)	1303448
104 – 173 BAR (1501 – 2500 PSI)	1303661	K	8 LPM (2 GPM	1303450
174 – 276 BAR (2501 – 4000 PSI)	1303662	M	10 LPM (2.5 GPM)	1303453
Eg.	150 Bar (2175 PSI)	N	11 LPM (3 GPM)	1303451
R	15 LPM (4 GPM)	1303452

VI. MOTOR
Kit #
54	EXTENDED SHAFT ADAPTER	1300335
55	AC FLANGE “NEMA C” ADAPTER	1303543
60	1/2 HP (30 min.), 3 PH, 50/60 Hz, 208-230/460 VAC, TENV, 1425/1725	1300916
62	1 HP (30 min.), 3 PH, 50/60 Hz, 208-230/460 VAC, TENV, 2850/3450	1300918
63	1 HP (30 min.), 3 PH, 50/60 Hz, 208-230/460 VAC, TEFC, 2850/3450	1300919
64	1 HP, 1 PH, 60 Hz, 115/208-230 VAC, TENV, 3450	1300920
65	1 HP, 1 PH, 50/60 Hz, 115/208-230 VAC, TEFC, 2850/3450	1300921
66	1 HP, 3 PH, 50/60 Hz, 208-230/460 VAC, TENV, 1425/1725	1300922
67	1 HP (30 min.), 1 PH, 60 Hz, 115/208-230 VAC, TENV, 1725	1300923
68	2 HP (30 min.), 1 PH, 60 Hz, 115/208-230 VAC, TENV, 3450	1300924
69	2 HP, 1 PH, 50/60 Hz, 115/208-230 VAC, TEFC, 2850/3450	1300925
70	2 HP (30 min.), 3 PH, 50/60 Hz, 208-230/460 VAC, TENV, 1425/1725	1300926
71	2 HP (30 min.), 1 PH, 60 Hz, 115/208-230 VAC, TENV, 1725	1300927
72	3 HP (30 min.), 3 PH, 50/60 Hz, 208-230/460 VAC, TENV, 2850/3450	1300928
73	3 HP, 3 PH, 50/60 Hz, 208-230/460 VAC, TEFC, 2850/3450	1300929
74	3 HP, 3 PH, 50/60 Hz, 208-230/460 VAC, TEFC, 2850/3450	1300930
80	12 VDC Single Term. – Standard Duty	1300027
82	12 VDC Double Term. – Medium Duty	1300618
83	24 VDC Single Term. – Medium Duty w/Ground Strap	1300912
84	24 VDC Double Term. – Medium Duty	1300619
85	24 VDC Double Term. – Med. Duty – Low Speed Compound	1300913
86	24 VDC Double Term. – Heavy Duty	1303551

VII. RESERVOIR
Kit #
AA	0.7 LTR (1 QT) STEEL	1300897
AB	1.2 LTR (1.5 QT) STEEL	1300898
AC	1.9 LTR (2 QT) STEEL	1300899
AD	2.9 LTR (3 QT) STEEL	1300900
AE	0.9 LTR (1.0 QT) PLASTIC*	1300901
AF	1.4 LTR (1.5 QT) PLASTIC*	1300902
AG	1.9 LTR (2.0 QT) PLASTIC*	1300903
AJ	3.8 LTR (1 GAL) STEEL	1300904
AK	5.7 LTR (1.5 GAL) STEEL	1300905
AL	7.6 LTR (2 GAL) STEEL	1300906
AM	11.4 LTR (3 GAL) STEEL	1300907
AN	9.5 LTR (2.5 GAL) STEEL, RECTANGULAR	1300908
AP	5.2 LTR (4 GAL) STEEL, RECTANGULAR	1300909
*Maximum allowable fluid temperature for plastic reservoirs is 175ºF (79ºC).

VIII. MOTOR TERMINAL POSITION
A	No Motor
0	12 O’Clock
3	3 O’Clock
6	6 O’Clock
9	9 O’Clock
NOTE: Location relative to Pad “A” as viewed from reservoir end.

IX. START SWITCH			X. START SWITCH POSITION
Kit #
A	None	N/A	A	No Switch or Push Button
H	12 VDC – UL RECOGNIZED, 4-POLE	1300937	DC Units (Relative to Motor Terminals)
J	24 VDC – UL RECOGNIZED, 4-POLE	1300938	1	10 O’Clock
K	12 VDC, 3-POLE	1300939	2	12 O’Clock
L	24 VDC, 3-POLE	1300940	4	11 O’Clock
M	12 V, HEAVY DUTY, 4-POLE	1300941	5	1 O’Clock
N	24 V, HEAVY DUTY, 4-POLE	1300942	7	2 O’Clock
P	1 PH, 115 VAC (only for motors: 64, 65, 67, 68, 69 & 71)	1303546	AC Units Push Button (Reservoir End Down-Pad “A”
Q	1 PH, 230 VAC (only for motors: 64, 65, 67, 68, 69 & 71)	1303545	0	12 O’Clock
R	1 PH, 230 VAC (only for motor: 74)	1303544	3	3 O’Clock
S	3 PH, 230 VAC (only for motors: 60, 62, 63, 66, 70, 72 & 73)	1303548	9	9 O’Clock
T	3 PH, 460 VAC (only for motors 60, 62, 63, 66, 70, 72 & 73)	1303547

XI. TUBE KITS
Order Code	LTR	QTS	MOUNT	SERIES	PAD “A”	Kit #	Material
AB	0.7	1	Horizontal	GC	Down	1300867	Steel
BB	0.7	1	Horizontal	GC/W	@ 9:00	1300868	Steel
CB	0.7	1	Horizontal	W	Down	1300943	Steel
DB	0.7	1	Vertical	GC	N/A	1300875	Steel
EB	0.7	1	Vertical	W	N/A	1300953	Steel
FB	0.76	0.8	Horizontal	GC	Down	1300961	Plastic
GB	0.76	0.8	Horizontal	GC/W	@ 9:00	1300963	Plastic
HB	0.76	0.8	Horizontal	W	Down	1300962	Plastic
JB	0.76	0.8	Vertical	GC	N/A	1300973	Plastic
KB	0.76	0.8	Vertical	W	N/A	1300974	Plastic
AC	1.2	1.5	Horizontal	GC	Down	1300867	Steel
BC	1.2	1.5	Horizontal	GC/W	@ 9:00	1300868	Steel
CC	1.2	1.5	Horizontal	W	Down	1300943	Steel
DC	1.2	1.5	Vertical	GC	N/A	1300876	Steel
EC	1.2	1.5	Vertical	W	N/A	1300954	Steel
FC	1.2	1.3	Horizontal	GC	Down	1300961	Plastic
GC	1.2	1.3	Horizontal	GC/W	@ 9:00	1300963	Plastic
HC	1.2	1.3	Horizontal	W	Down	1300962	Plastic
JC	1.2	1.3	Vertical	GC	N/A	1300975	Plastic
KC	1.2	1.3	Vertical	W	N/A	1300976	Plastic
AD	1.9	2	Horizontal	GC	Down	1300867	Steel
BD	1.9	2	Horizontal	GC/W	@ 9:00	1300868	Steel
CD	1.9	2	Horizontal	W	Down	1300943	Steel
DD	1.9	2	Vertical	GC	N/A	1300876	Steel
ED	1.9	2	Vertical	W	N/A	1300954	Steel
FD	1.6	1.7	Horizontal	GC	Down	1300961	Plastic
GD	1.6	1.7	Horizontal	GC/W	@ 9:00	1300963	Plastic
HD	1.6	1.7	Horizontal	W	Down	1300962	Plastic
JD	1.6	1.7	Vertical	GC	N/A	1300975	Plastic
KD	1.6	1.7	Vertical	W	N/A	1300976	Plastic
AE	2.9	3	Horizontal	GC	Down	1300873	Steel
BE	2.9	3	Horizontal	GC/W	@ 9:00	1300874	Steel
CE	2.9	3	Horizontal	W	Down	1300946	Steel
DE	2.9	3	Vertical	GC	N/A	1300878	Steel
EE	2.9	3	Vertical	W	N/A	1300878	Steel
AF	3.8	1	Horizontal	GC	Down	1300867	Steel
BF	3.8	1	Horizontal	GC/W	@ 9:00	1300868	Steel
CF	3.8	1	Horizontal	W	Down	1300943	Steel
DF	3.8	1	Vertical	GC	N/A	1300891	Steel
EF	3.8	1	Vertical	W	N/A	1300957	Steel
AG	5.7	1.5	Horizontal	GC	Down	1300873	Steel
BG	5.7	1.5	Horizontal	GC/W	@ 9:00	1300874	Steel
CG	5.7	1.5	Horizontal	W	Down	1300946	Steel
DG	5.7	1.5	Vertical	GC	N/A	1300892	Steel
EG	5.7	1.5	Vertical	W	N/A	1300958	Steel
AH	7.6	2	Horizontal	GC	Down	1300873	Steel
BH	7.6	2	Horizontal	GC/W	@ 9:00	1300874	Steel
CH	7.6	2	Horizontal	W	Down	1300946	Steel
DH	7.6	2	Vertical	GC	N/A	1300893	Steel
EH	7.6	2	Vertical	W	N/A	1300959	Steel
AJ	11.4	3	Horizontal	GC	Down	1300873	Steel
BJ	11.4	3	Horizontal	GC/W	@ 9:00	1300874	Steel
CJ	11.4	3	Horizontal	W	Down	1300946	Steel
DJ	11.4	3	Vertical	GC	N/A	1300894	Steel
EJ	11.4	3	Vertical	W	N/A	1300960	Steel
AK	9.5	2.5	Horizontal	GC	Down	1300873	Rectangle
BK	9.5	2.5	Horizontal	GC/W	@ 9:00	1300874	Rectangle
CK	9.5	2.5	Horizontal	W	Down	1300946	Rectangle
AL	15.2	4	Horizontal	GC	Down	1300873	Rectangle
BL	15.2	4	Horizontal	GC/W	@ 9:00	1300874	Rectangle
CL	15.2	4	Horizontal	W	Down	1300946	Rectangle

XII. BREATHER POSITION		XIII. COIL TERM./LEVER POSITION
0	12 O’Clock	A	12 O’Clock = Toward Motor
3	3 O’Clock	B	3 O’Clock = Away from Center
6	6 O’Clock	C	6 O’Clock = Toward Reservoir
9	9 O’Clock	D	9 O’Clock = Toward Center
NOTE: Location relative to Pad “A” as viewed from reservoir face.		N	None
		NOTE: Location relative to motor as viewed from top of coil or top of manual release switch box.

XiV & XV. ACCESSORy (Maximum of 2 can be specified.)
00	No Accessories	N/A
10	DC – Rubber Terminal Boots (Qty of 4)	1303553
11	AC – Plain Pigtail (Exits box from orientation “3”)	1303554
12	AC – Plain Pigtail (Exits box from orientation “0”)	1303554
13	AC – Plain Pigtail (Exits box from orientation “9”)	1303554
14	AC – Pigtail w/115 VAC Male Wall Plug (Exits box from orientation “3”)	1303557
15	AC – Pigtail w/115 VAC Male Wall Plug (Exits box from orientation “0”)	1303557
16	AC – Pigtail w/115 VAC Male Wall Plug (Exits box from orientation “9”)	1303557
17	AC – Pigtail w/115 VAC Male Twist Lock Plug (Exits box from orientation “3”)	1303560
18	AC – Pigtail w/115 VAC Male Twist Lock Plug (Exits box from orientation “0”)	1303560
19	AC – Pigtail w/115 VAC Male Twist Lock Plug (Exits box from orientation “9”)	1303560
20	AC – Pigtail w/115 VAC Male/Female Twist Lock Plug (Exits box from orientation “3”)	1303563
21	AC – Pigtail w/115 VAC Male/Female Twist Lock Plug (Exits box from orientation “0”)	1303563
22	AC – Pigtail w/115 VAC Male/Female Twist Lock Plug (Exits box from orientation “9”)	1303563
23	AC – Single Acting Pendant (Exits box from orientation “3”)	1303566
24	AC – Single Acting Pendant (Exits box from orientation “0”)	1303566
25	AC – Single Acting Pendant (Exits box from orientation “9”)	1303566
26	DC – Single Acting Pendant	1303569
27	DC – Double Acting Pendant	1303570
NOTE: “Box” refers to conduit box.

XVI. DESIGN SERIES
A	Major Change to form, fit or function
3	Minor Design Change
NOTE: Design Series is assigned by the factory at the current level.

TOOLS AVAILABLE
W300 Stud Driver	1303583
Relief Valve Seat Installation Socket	1303584
NOTE: Location relative to motor as viewed from top of coil or top of manual release switch box.

HE 2000 Adapter/Circuit Options

Each of the adapter options shown below provide the complete circuit indicated by the corresponding schematic. The order codes at the rear of this catalog provide the vehicle for specifying the coil voltage, flow control settings, relief valve settings and a number of other options. The manifold adapters shown come with the manifold for the circuit indicated. All adapters, manifolds, coils, etc. are also available as stand alone kits which are easily assembled.

BA (DC Version) or CA (AC Version)
Adapter, P & T Ports,
Relief Valve and Check Valve

Adapter Kit	1303649
Port Plug	1300191
AC Motor Adapter Kit (CA only)	1303549

BB (DC Version)
Adapter, Normally Closed,
Solenoid Lowering Valve

Adapter Kit	1303649
Solenoid Release Valve Kit	1303534
BB012 12 VDC Solenoid Kit	1300914*
BB024 24 VDC Solenoid Kit	1300915*
*Must order (1) 12 VDC or (1) 24 VDC.

CB (AC Version)
Adapter, Normally Closed,
Solenoid Lowering Valve

Adapter Kit	1303649
Solenoid Release Valve Kit	1303534
CF115 110 VAC Solenoid Kit	1303576*
CF230 230 VAC Solenoid Kit	1303577*
AC Motor Adapter Kit	1303549
*Must order (1) 115 VAC or (1) 230 VAC.

BE
Manual Normally Closed,
Lowering Adapter with
DC Contactor

Adapter Kit	1303649
Manual Release Valve Kit with Pilot Solenoid Contactor	1300192
NOTE: Motor solenoid start switch still required.

CE
AC Manual Normally Closed
Lowering Valve Adapter

Adapter Kit	1303649
Manual Release Valve Kit	1303533
AC Motor Adapter Kit	1303549

BF
Manual Adapter with 3-Position, 4-Way Valve
(Motor Spool)
(DC Version)

Adapter Kit	1303650
Manifold Kit	1300866
Motor Spool Valve	1303382
Plug (P.O. Check Cavity)	1303540
BF012 12 VDC Solenoid Kit BF024 24 VDC Solenoid Kit	1300914* 1300915*
*Must order (2) 12 VDC or (2) 24 VDC.

BH
Manifold Adapter with 3-Position, 4-Way Valve
(Motor Spool)
(DC Version with Double P.O. Check)

Adapter Kit	1303650
Manifold Kit	1300866
Motor Spool Valve	1303382
Double P.O. Check Valve	1303538
BH012 12 VDC Solenoid Kit BH024 24 VDC Solenoid Kit	1300914* 1300915*
*Must order (2) 12 VDC or (2) 24 VDC.

CF
Manifold Adapter with 3-Position, 4-Way Valve
(Motor Spool)
(AC Version)

Adapter Kit	1303650
Manifold Kit	1300866
Motor Spool Valve	1303382
Plug (P.O. Check Cavity)	1303540
CF115 115 VAC Solenoid Kit CF230 230 VAC Solenoid Kit	1303576* 1303577*
Riser Block (Required for AC Units with Manifolds)	1300855
AC Motor Adapter Kit	1303549
*Must order (2) 115 VAC or (2) 230 VAC.

BJ
Manifold Adapter with 3-Position, 4-Way Valve
(Tandem Center Spool)
(DC Version)

Adapter Kit	1303650
Manifold Kit	1300865
Tandem Center Valve	1303530
Plug (P.O. Check Cavity)	1303540
BJ012 12 VDC Solenoid Kit BJ024 24 VDC Solenoid Kit	1300914* 1300915*
*Must order (2) 12 VDC or (2) 24 VDC.

CJ
Manifold Adapter with 3-Position, 4-Way Valve
(Tandem Center Spool)
(AC Version)

Adapter Kit	1303650
Manifold Kit	1300866
Tandem Center Valve	1303530
Plug (P.O. Check Cavity)	1303540
CJ115 115 VAC Solenoid Kit CJ230 230 VAC Solenoid Kit	1303576* 1303577*
Riser Block (Required for AC Units with Manifolds)	1300855
AC Motor Adapter Kit	1303549
*Must order (2) 115 VAC or (2) 230 VAC.

BR
Manifold Adapter with Solenoid Operated,
2-Position, 4-Way Valve
(DC Version)

Adapter Kit	1303650
Manifold Kit	1300865
Normally Open Valve	1303529
Plug (P.O. Check Cavity)	1303540
BR012 12 VDC Solenoid Kit BR024 24 VDC Solenoid Kit	1300914* 1300915*
*Must order (1) 12 VDC or (1) 24 VDC.

CR
Manifold Adapter with Solenoid Operated,
2-Position, 4-Way Valve
(AC Version)

Adapter Kit	1303650
Manifold Kit	1300865
Normally Open Valve	1303529
Plug (P.O. Check Cavity)	1303540
CR115 115 VAC Solenoid Kit CR230 230 VAC Solenoid Kit	1303576* 1303577*
Riser Block (Required for AC Units with Manifolds)	1300855
AC Motor Adapter Kit	1303549
*Must order (1) 115 VAC or (1) 230 VAC.

BS
Manifold Adapter with Solenoid Operated,
2-Position, 4-Way Valve
(DC Version with P.O. Check)

Adapter Kit	1303650
Manifold Kit	1300866
Normally Open Valve	1303529
BS012 12 VDC Solenoid Kit BS024 24 VDC Solenoid Kit	1300914* 1300915*
Single P.O. Check Valve	1303539
*Must order (1) 12 VDC or (1 24 VDC.

DA
Manifold Adapter with Single DO3 Valve

Adapter Kit	1303650
DO3 Manifold Kit	1300854
Bolt Kit	1300865

DB
Manifold Adapter with Single D03 Valve

Adapter Kit	1303650
Primary D03 Manifold Kit	1300854
Bolt Kit	1303857
Riser Block (Required for AC Units with Manifolds)	1300855
AC Motor Adapter Kit	1303549

DC
Manifold Adapter with Double D03 Valve

Adapter Kit	1303650
Primary D03 Manifold Kit	1300854
Bolt Kit	1300858
Riser Block (Required for AC Units with Manifolds)	1300855
AC Motor Adapter Kit	1303549

DM
Manifold Adapter
(DC Version)

Adapter Kit

1303650

AM
Manifold Adapter
(AC Version)

Adapter Kit	1303650
AC Motor Adapter Kit	1303549

HE 2000 Pump and AC Motor Selection/ Combinations

The following charts provide all the information required to specify a pump and AC motor for the HE 2000. The nominal rated horsepower for TENV motors is based on a 30 minute duty cycle. The nominal rated horsepower for TEFC motors is based on continuous duty. For 50 Hz operation, pump flow and horsepower shown below need to be derated by approximately 20%.

Model Code	Catalog P/N	HP	Phase	Hz	Voltage	Encl.	RPM	60 Hertz Ratings
								HP 5 min. Rated	HP 15 min. Rated	HP 30 min. Rated
60	1300916	0.5	Three	50/60	208-230/460	TENV	1425/1725	1	0.75	0.5
62	1300918	1	Three	50/60	208-230/460	TENV	2850/3450	2.5	1.8	1
63	1300919	1	Three	50/60	208-230/460	TEFC*	2850/3450	2.5	1.8	1
64	1300920	1	Single	60	115/208-230	TENV	3450	2.5	1.8	1
65	1300921	1	Single	50/60	115/208-230	TEFC*	2850/3450	2.5	1.8	1
66	1300922	1	Three	50/60	208-230/460	TENV	1425/1725	3	2	1
67	1300923	1	Single	60	115/208-230	TENV	1725	2	1.5	1
68	1300924	2	Single	60	115/208-230	TENV	3450	4	3	2
69	1300925	2	Single	50/60	115/208-230	TEFC*	2850/3450	3	2.5	2
70	1300926	2	Three	50/60	208-230/460	TENV	1425/1725	4	3.5	2
71	1300927	2	Single	60	115/208-230	TENV	1725	3	2.5	2
72	1300928	3	Three	50/60	208-230/460	TENV	2850/3450	4.9	3.8	3
73	1300929	3	Three	50/60	208-230/460	TEFC*	2850/3450	4.9	3.8	3
74	1300930	2.5	Single	50/60	208-230	TENV	2850/3450	3.5	3	2.5

Model Code	60 Hertz Ratings						Dimensions
	Line Voltage	Low Voltage	Max. cc/rev. Starting at 2500 psi Low Voltage	Pullup Torque at Line Voltage Ft-lbs.	Breakdown Torque at Line Voltage Ft-lbs.	5 Min. Duty HP Nominal Amp Draw	L	H	K
60	230	188	1.6	6.2	9.0	3.5 A @ 230 V	5.8	6.8	4.0
62	230	188	1.6	6.4	6.7	8.4 A @ 230 V	5.8	6.8	4.0
63	230	188	1.6	6.4	6.7	8.4 A @ 230 V	7.5	7.3	4.0
64	115	99	1.6	5.7	6.9	28.6 A @ 115V	7.8	8.8	4.3
65	115	99	1.6	5.1	6.0	28.6 A @ 115V	9.5	8.8	4.3
66	230	188	3.2	12.3	17.1	8.4 A @ 230 V	6.8	6.8	5.0
67	115	99	3.2	9.1	10.8	8.5 A @ 230 V	9.3	9.0	5.8
68	115	99	2.1	7.4	7.7	27 A @115 V	9.8	8.8	6.2
69	115	99	2.1	5.4	8.0	30.2 A @ 115V	11.0	8.8	5.8
70	230	188	6.4	24.0	26.5	5.7 A @ 230V	8.8	6.8	5.3
71	115	99	4.8	17	19	35 A @ 115 V	9.8	8.6	6.3
72	230	188	3.2	12.6	14.6	13.7 A @ 230 V	6.8	6.8	3.3
73	230	188	3.2	12.6	14.6	13.7 A @ 230 V	9.5	6.8	4.3
74	230	188	3.7	9.3	10.7	20.1 A @ 230 V	9.8	9.1	6.2
*NOTE: For TEFC motors the 30 minute rated horsepower is a continuous rating. See Concentric (Haldex) HE Power Packs catalog, page 28, for performance curves @ 1725 rpm and 3450 rpm. Once horsepower required is determined (see bottom of page 20 of HE Power Packs), refer to the above chart to determine the appropriate motor for the required duty cycle.
