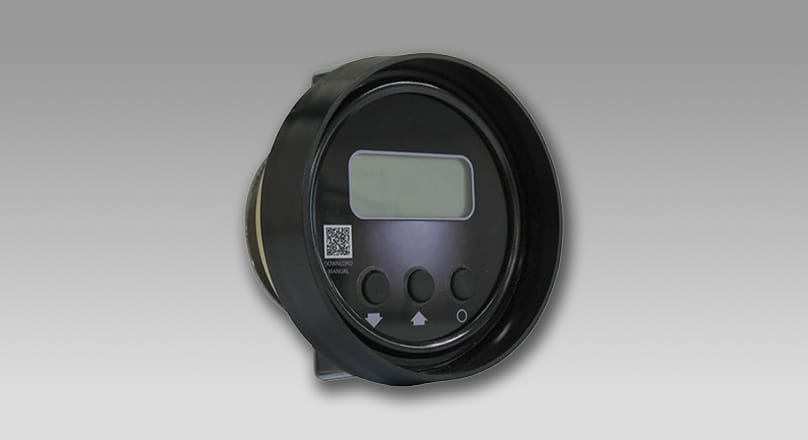

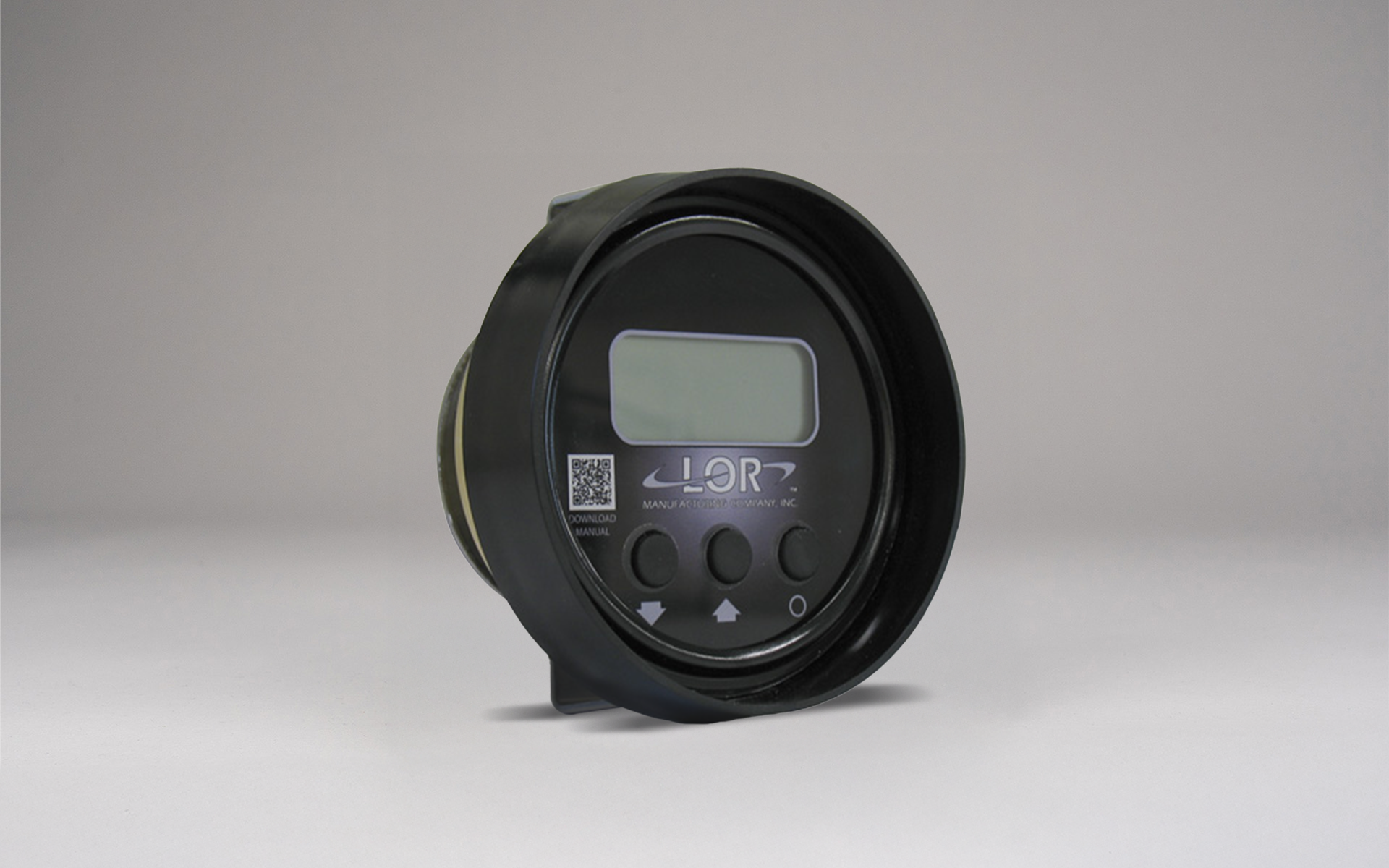

The PDC-X digital tachometer/hour meter offers a wide range of possibilities for RPM-based control solutions. From standard tachometer/hour meter functionality to reading J1939 traffic directly from the engine. Operating on 9 to 36 VDC these units can fit into most applications. The combination of a custom connection harness and an easy-to-use Deutsch connector allows an operator to be set up and running within a matter of minutes. The PDC-X also has the ability to monitor J1939 traffic. This unit combines the traditional functionality of a tach/hour Meter along with the ability to display engine parameters such as:
Details
Specs
Documentation
Related Products
Model #:
- Includes Autofeed technology
- Two Programmable Outputs
- Easy-to-use push button switches
- Reads directly from the J1939 CAN Bus
- IP-68 (30-minute submersion at one (1) meter with no leaks)
- 9 – 30 VDC
+
–
Technical Specifications
Engine Compatibility
Gas or Diesel with J1939 CAN Bus
Mechanical Gas or Diesel
Tachometer Range
0–9999 RPM
Tachometer Accuracy
± 10 RPM
Display Readout Type
Four fully active LCD Digits
Character Height
Approximately ¼″ − ½″
Input Voltage
9 to 30 VDC
Outputs
Two Mosfet outputs (7.5 A per output)
Connector
8-pin Deutsch “B” Key
Housing Construction
Passivated aluminum, non-magnetic
Face Plate
Acrylic
Humidity Vent
Gortex
Bezel
Black Anodized Aluminium
Mounting Bracket
Steel
Trim Ring
Plastic (optional)
LED Feedback
CAN Bus Warning
Output #1 Active
Output #2 Active
CAN Bus Fault Shutdown
Lockable Settings
OEM Only
Operating Temperature
-10° to 80° C (14° to 176° F)
Storage Temperature
-55° to 82° C (-67° to 180° F)
Water Resistance
IP-68−30 minute submersion at 1 meter with no leaks
