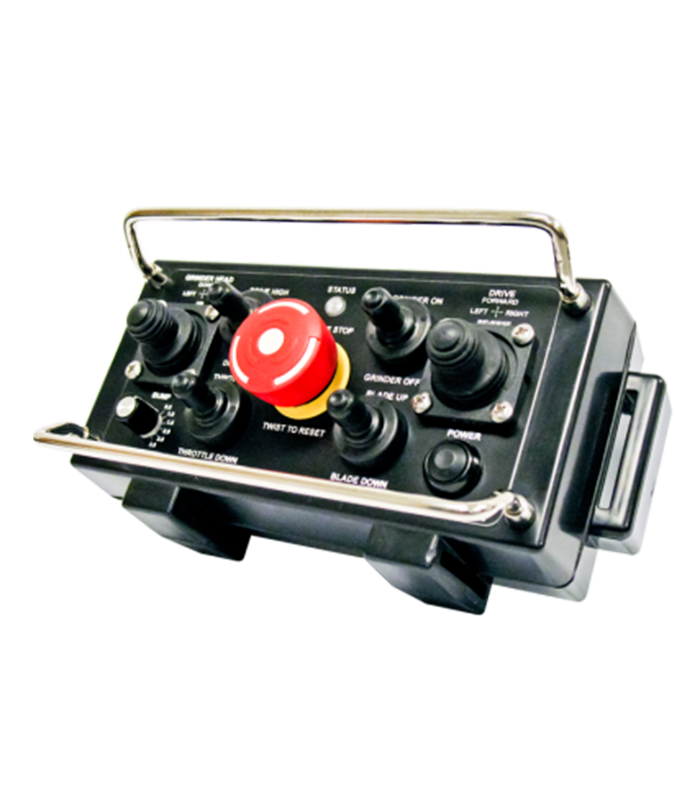

20 Channel Transmitter
The LDA-Tx Transmitter features 20 digital channels and 8 analog functions. Configurable in either 900 MHz or 2.4 GHz with internal processing capabilities, this Transmitter offers a wide range of possibilities when it comes to applications.
Details
Specs
Documentation
Related Products
Model #: LDA-Tx
- Inputs: 18
- 4 × Voltage
- 12 × Digital
- 2 × Frequency
- Outputs: 18
- 8 × PWM
- 4 × Digital
- 6 × Ground
- Weatherproof
- Output Protection: Over Load Shutdown; Open Load Detection
- Maximum Load: 6 amps
- Operating Temp: –40°– 170°F
- Protocol: SAE J1939

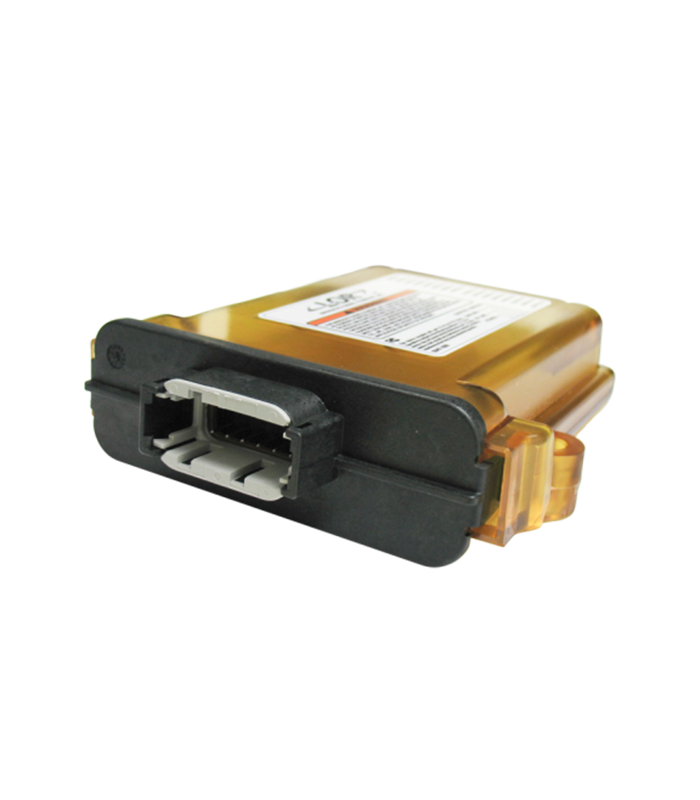

- LDA-Rx Series
- LXM Series
- LGR Series
* Internal is standard, but external antenna is available upon request
** Operating range is based on the use of an internal antenna; an external antenna may increase the range significantly depending on the application
+
–
General Specifications (900 MHz)
Frequency Range
ISM 902MHz–928MHz
Frequency Control
7 Frequency hopping channels ( Software Selectable )
Modulation
DSSS ( Direct Sequence Spread Spectrum)
Error Correction
Automatic Error Detection and Automatic Retransmission
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
Up to 90% RH, non-condensing
Operating Range
Approx. 1,500Ft. ** (Line of Sight)
+
–
General Specifications ( 2.4GHz )
Frequency Range
2403.328MHz – 2480.128MHz ( ARIB STD-T66 ) 2473.984 – 2493.440MHz (RCR STD-33)
Frequency Control
7 Frequency hopping channels ( Software Selectable )
Modulation
DSSS ( Direct Sequence Spread Spectrum)
Error Correction
Automatic Error Detection and Automatic Retransmission
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
Up to 90% RH, non-condensing
Operating Range
Approx. 600Ft. ** (Line of Sight)
+
–
Transmitter Specifications
Supply Voltage
4.8 VDC Min.; 10 VDC Max; Typical ~6VDC (4AA Alkaline Batteries)
Max. Current Consumption
less than 180 mA (RF Active); less than 10 mA (Idle Mode)
Digital Inputs
20 Available
Analog Inputs
8 Available – 0-5 VDC (configurable as Digital Inputs)
LED Outputs
2 (Battery Status)
CAN Connection
J1939 (2-wire)
Power Saving Features
RF Emissions Off Delay less than 1s; Sleep Mode after 3 min (less than 1 mA)
Antenna
Internal*
Dimensions
Approx. 8″ x 4″ x 3.25″
Weight
Approx. 2 Lbs.
Enclosure
Weatherproof
