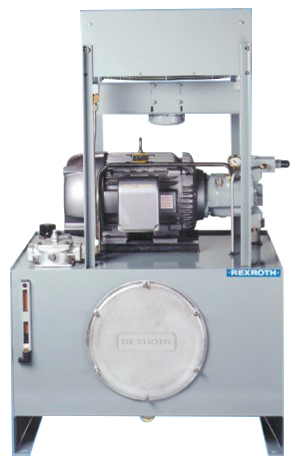

Designed for industrial applications, with models delivering a variety of displacement options and tank sizes of 20-, 40-, 60-, and 100-gallons, Bosch Rexroth standard PPV power units can be employed in a wide range of situations.
Bosch Rexroth PPV units save space. By using a special electric motor, we can save you 10 to 15 inches of space. The secret is in the motor’s specific bolt pattern. This close-coupled motor group requires no pump/motor adapter.
Bosch Rexroth’s standard power units incorporate variable displacement piston pumps and valve options. They can be customized to fit your needs with the complete line of accessories we offer, such as heat exchangers, heaters, and temperature and level indicators. These accessories include Bosch Rexroth’s factory-built warranty and can be serviced internationally.
Bosch Rexroth has invested the time and effort needed in order to ensure that all of their hydraulic components and accessories are standardized and are built to industrial-grade quality. By doing so, they have made it easy for you to maintain your units and to obtain replacement parts for them when needed. They also rely on their latest technology to develop their power units. For example, they utilize the close-coupled motor pump group, which eliminates couplings and bell housings. This, in turn, produces a quieter, more cost-efficient assembly.
Engineering Partners from Concept to Completion
As an Engineering Partner, Systems Integrator, and Value-added Distributor, ESV, Evolution partners with your team from concept to completion. We leverage our experienced product managers and engineering team’s industry and application knowledge to ensure we design the best power unit for your application. Our team evaluates each component variation to find the perfect combination to meet your performance needs. We also provide startup and troubleshooting support for all of our power unit systems.
Availability
Rexroth power units meet the rigid standards set by ISO 9001. Moreover, since they are pre-engineered they represent the best of both worlds: They allow us to offer a competitively priced unit with a minimal delivery time while at the same time maintaining our high standards of quality, workmanship and dependability.
PPV Features
- Pressures up to 3000 psi
- Flow: 4.2 to 31 gpm
- Variable displacement pumps
- Electric motor: 2–50 hp @ 1750 rpms
- System relief valve and gauge
- 20 μ absolute in-tank return filter/filler/breather
- In-tank return down line
PPV Options
- D03 and D05 bar manifold up to six stations
- Heat exchangers/water regulator valve
- Heater/temperature switch
- Level/temperature switch
