Vane-Type Wide Speed Range Hydraulic Motor

2-speed versions Double motors for higher torque and high speed Through hole shafts High load radial and thrust bearings available Drill motor versions with API threads Displacement choices beyond catalog listings High performance series for increased pressure (to 5000 PSI) and speeds

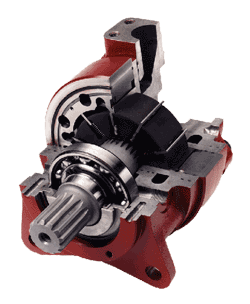

A series of fixed displacement motors with nominal ratings of 50 to 400 HP, and a speed range up to 2000 RPM depending on model. Larger models operate at full power from 150 to 400 RPM down to less than 1 RPM. “Vane-crossing-vane” principle gives them high starting torque, high efficiency, and envelope size and weight about half that of other motors. They are radially balanced for maximum bearing life and they can accept moderate side loads.

Rated 3000 PSI continuous, 3500 intermittent, all models. Intermittent is defined as no more than 10% every minute. Required filtration 25 µm. Start and stall torque are very nearly equal to running torque shown in chart. Efficiency 90 to 92% under optimum conditions.

Straight shafts are standard, spline shafts are optional.

15 Series Wide Speed Range Hydraulic Motor Features: Eight fixed displacements from 6 to 15 cu. in. Envelope dimensions constant regardless of displacement Speed up to 2,500 RPM Up to 50 horsepower SAE “C” mounting and shaft Weighs 43 lbs. (all displacements

The 15 series is Rineer’s smallest displacement size range motor. It features displacements of 6, 7, 8, 9.5, 10.5, 11.5, 13, and 15 and operates at 3000 PSI continuous, 3500 intermittent. The mounting position is unrestricted. There are many field-proven uses of the 15 series including winch drives, conveyor drives, saw drives, drill, pump drives, and compressor drives. The motor fits well into many auxiliary drive positions on larger equipment.

37 and 57 Series Wide Speed Range Hydraulic Motor Features: Six fixed displacements from 12 to 37 cu. in. Envelope dimensions constant regardless of displacement Speed up to 1,000 RPM Up to 100 horsepower SAE “D” mounting and shaft Weighs 106 lbs. (all displacements)

The 37, 57 series is Rineer’s medium displacement size range motor. It features displacements of 12, 16, 20, 26, 32, and 37 in the 37 Series and 48 and 55.5 cu. in. in the 57 Series. These motors operate at 3000 PSI continuous, 3500 intermittent and the mounting position is unrestricted. There are many field-proven uses of the 37 & 57 series including fan drives, injector drives, drilling, horizontal boring, roller and actuator drives. The motor is a workhorse as a primary mover on mid-size equipment.

125 Series Wide Speed Range Hydraulic Motor Features: Variety of fixed displacements from 60 to 250 cu. in. Speed up to 350 RPM Up to 240 horsepower continuous SAE “C” mounting and shaft Operational port and shaft configurations Drill motors available

The 125 series is Rineer’s largest displacement size range motor. It features displacements of 60, 68, 82, 98, 113, and 125 in single, double, and 4-port envelopes and operates at 3000 PSI continuous, 3500 intermittent. The mounting position is unrestricted. There are many field proven uses of the 125 series including top head drives, rock crushing equipment, shredders, horizontal boring, blast hole drilling, and core drilling to name a few. The 125 Series is your answer for powerful main drive motors, replacing larger, heavier lower performance motors.

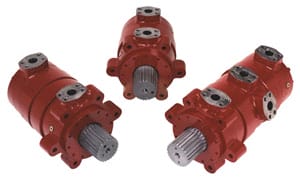

High Pressure 125 Series (Code 62) Features: Variety of fixed displacements from 60 to 250 cu. in. Speed up to 350 RPM Up to 240 horsepower continuous SAE “C” mounting and shaft Operational port and shaft configurations Drill motors available

The 125 series is Rineer’s largest displacement size range motor. It features displacements of 60, 68, 82, 98, 113, and 125 in single, double, and 4-port envelopes and operates at 3000 PSI continuous, 3500 intermittent. The mounting position is unrestricted. There are many field proven uses of the 125 series including top head drives, rock crushing equipment, shredders, horizontal boring, blast hole drilling, and core drilling to name a few. The 125 Series is your answer for powerful main drive motors, replacing larger, heavier lower performance motors.
