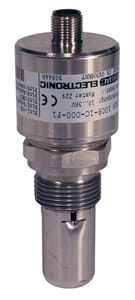

HYDAC Lab Flow Rate Sensors
HYDACLab sensors are compact, multi-functional sensors for determining the condition of fluids in real-time. Operators are kept informed of changes in fluid condition as they occur and can immediately change the operating conditions accordingly. Changes in fluid condition that might occur due to ageing or mixing with other fluids, for example, are indicated by measuring fluid temperature, relative moisture content and relative changes in fluid viscosity and fluid dielectric constant. Those measurements are available as analog signals or switching signals at the electrical output of the HYDACLab for activating warning devices or alarms.
CS 1000
Block Manifold with AS1000
The CS 1000 Contamination Sensor with or without the manifold is the newest HYDAC development for continuous measurement of solid contamination of fluids on the market. Using the latest technology and materials, the CS 1000 is a reliable measuring instrument that is permanently mounted on your mobile or industrial equipment.
The attractive cost-to-performance ratio makes it especially interesting for OEM applications. Online, real-time condition monitoring allows you to have total predictive maintenance.

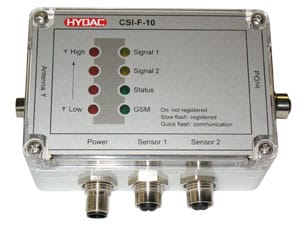

CSI-F-10
GSM Radio Module
The GSM radio module CSI-F-10 is an all purpose electronic unit for transferring data and digital signals via the GSM mobile radio network. As part of the HYDAC Condition Monitoring concept, among other functions, the CSI-F-10 links the sensor level with the interpretation level.
The unit is designed both for stand alone operation and for use as a GSM modem on a CMU 1000 (HYDAC Condition Monitoring Unit).
Up to two HYDAC SMART sensors such as HYDACLab®, AS 1000 or CS 1000 can be connected to its input sockets. In addition it is also possible to monitor various different system conditions via the four integrated digital inputs and to relay the data in binary form with the aid of the two integrated digital outputs. Through these digital outputs the device can also access the monitored machine / system directly.
The CSI-F-10 processes and monitors the input signals using the application program stored in it. Which data are to be monitored, and how, and at what point a particular message is sent, is defined in detail in this program.
This application program can be created easily and conveniently (in accordance with IEC 61131) using the CM Editor, which forms part of the HYDAC PC software CMWIN Version V03 or higher.
Depending on the application, the user can choose independently between two operating modes of the CSI-F-10 and hence define the type and content of the communication.
AS 1000 Series
AquaSensor
The AS 1000 series AquaSensor is a stationary, microprocessor based measurement unit for the continuous monitoring of the water saturation level and temperature in hydraulic and lubrication systems. The sensor measures the water content relative to the saturation concentration (saturation point) and output the degree of saturation (saturation level) in the range of 0 to 100% as a 4 – 20 mA signal. A reading of 0% would indicate fluid that is free of water, while a reading of 100% would indicate a fluid that is saturated with water.

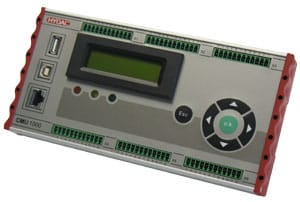

CMU 1000
Condition Monitoring Unit
The CMU 1000 is an electronic evaluation unit for permanent online condition monitoring of machines and systems.
In order to achieve this, the device must be supplied with relevant data which is recorded by the sensors connected to it.
This recorded data (processed or unprocessed) can be transferred by the CMU 1000 via different ports or as an analog value to other devices and/or monitoring levels.
The CMU 1000 processes the application program stored in it continuously and cyclically like a PLC. The user creates this program simply and conveniently using the CM Editor developed for this purpose and then uploads it to the CMU 1000.
The CM Editor is part of the HYDAC PC software CMWIN Version V03 or higher and it provides the various tools and functions in accordance with IEC 61131 for designing, integrating and testing the user program using “drag and drop” operations.
For status indication and for displaying messages and values on the device itself, there is a back-lit LCD and three different colored LEDs.
The CMU 1000 is operated and data are input on site using a built-in keypad within the menu structure of the device.
It is possible to connect easily to higher level control systems, monitoring systems and bus systems using the built-in interfaces or in combination with an additional coupling module.

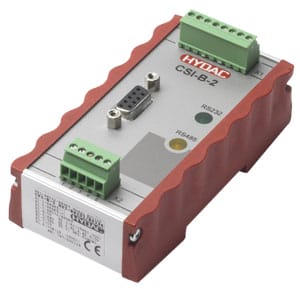

CSI-B-2
Condition Monitoring Interface Module
The Condition Monitoring Interface Module CSI-B-2 is another element in the HYDAC Condition Monitoring concept which connects the sensor level with the interpretation level.
It is an all-purpose electronic unit for converting the HSI signal from HYDAC SMART sensors into a standardized PC signal.
Using the HYDAC “CMWIN” PC software, it is possible to read the data and measured values of the connected SMART sensors directly.
The long-term memory can also be read, as well as making adjustments and setting parameters directly on the connected sensor (the setting options depend on the particular sensor).
The HSI signal can be converted either into an RS 232 or an RS 485 signal. The CSI-B-2 can be connected to any PC via the RS 232 interface (and possibly an additional standard RS 232-USB adapter*).
The RS 485 interface and appropriate additional coupling modules can also be used to connect to higher-level control and/ or bus systems.
