HYDAC offers a wide range of Flow Control Cartridge Valves:
Adjustable Flow Controls with and without free reverse flow check feature positive shut-off, 6000 psi (420 bar) operating pressure, hand knob and protective cap adjustment options. Models are available for flows up to 42 gpm (160 l/min).
Adjustable, Pressure Compensated Flow Regulators offer flow maintenance with high accuracy, 5000 psi (350 bar) operating pressure. Models are available for flows up to 10 gpm (38 l/min)
Adjustable, Priority Type, Pressure Compensated Flow Regulators offer flow maintenance with high accuracy, 5000 psi (350 bar) operating pressure. Models are available for flows up to 8 gpm (30 l/min).
Flow Divider/Combiner cartridges maintain flow per specified flow ratio regardless of system operating pressure conditions. They are rated to 5000 psi (350 bar) operating pressure. Models are available for flows up to 40 gpm (150 l/min). These valves have a special feature of providing synchronizing flow to either port 4 or port 2 when the other is blocked.
Features
- Variety of adjustment mechanism options
- Zinc-plated external surfaces
- One-piece body to maximize reliability and minimize effect of eccentricity
- Hardened parts to ensure minimal wear and extend service life
- Industry common cavity-compact size
SD08-01
Needle, Poppet Type
Up to 16 gpm (60 l/min) • 6000 psi (420 bar)
Description
A screw-in cartridge, adjustable variable orifice, hydraulic flow restrictor valve, non-pressure compensated.
Operation
The SD08-01 controls flow in either direction from fully open to leaktight shut-off by turning the adjustment feature clock-wise. Flow is non-pressure compensated.
Features
- All external surfaces zinc plated
- Adjustment needle cannot be backed out of the valve
- Complete shut-off
- Desired setting may be locked down
- Hardened parts to ensure minimal wear and extend service life
- Aluminum knob option for ease of adjustment
- Industry common cavity
SD10-01
Needle, Poppet Type
Up to 42 gpm (160 l/min) • 6000 psi (420 bar)
Description
A screw-in cartridge, adjustable variable orifice, hydraulic flow restrictor valve, non-pressure compensated.
Operation
The SD10-01 controls flow in either direction from fully open to leaktight shut-off by turning the adjustment feature clock-wise. Flow is non-pressure compensated.
Features
- Adjustment needle cannot be backed out of the valve
- Desired setting may be locked down
- Aluminum knob option for ease of adjustment
- Complete shut-off
- Hardened parts to ensure minimal wear and extend service life
- All external surfaces zinc-plated
- Industry common cavity
SDR10A-01
Needle, Free Reverse Flow
Up to 42 gpm (160 l/min) • 5000 psi (350 bar)
Description
A screw-in cartridge, adjustable variable orifice, hydraulic flow restrictor valve with free reverse flow check, non-pressure compensated.
Operation
The SDR10A-01 controls flow from port 2 to port 1 from fully open to leaktight shut-off by turning the adjustment feature clock-wise. Flow is non-pressure compensated. The flow from port 1 to port 2 is free.
Features
- All external surfaces zinc-plated
- Adjustment needle cannot be backed out of the valve
- Desired setting may be locked down
- Complete shut-off
- Hardened parts to ensure minimal wear and extend service life
- Aluminum knob option for ease of adjustment
- Industry common cavity
SR06-01
Flow Regulator, Pressure Compensated, Restrictive Type
Up to 4 gpm (15 l/min) • 5000 psi (350 bar)
Description
A screw-in cartridge, adjustable, pressure compensated, hydraulic flow regulating valve (restrictive type).
Operation
The SR06-01 maintains a constant flow from port 1 to port 2 based on the setting adjustment, regardless of pressure changes downstream of port 2. The flow rate is determined by a fixed control orifice and could be adjusted within a limited range. Reverse flow from port 2 to port 1 is at the value of the fixed control orifice and is non-pressure compensated.
Features
- Excellent stability throughout flow range
- Desired setting may be locked down
- Adjustment screw cannot be backed out of the valve
- All external surfaces zinc-plated
- Hardened parts to ensure minimal wear and extend service life
SR08-01
Flow Regulator, Pressure Compensated, Restrictive Type
Up to 7 gpm (27 l/min) • 6000 psi (420 bar)
Description
A screw-in cartridge, adjustable, pressure compensated, hydraulic flow regulating valve (restrictive type).
Operation
The SR08-01 maintains a constant flow from port 1 to port 2 based on the setting adjustment, regardless of pressure changes downstream of port 2. The flow rate is determined by a fixed control orifice and could be adjusted within a limited range. Reverse flow from port 2 to port 1 is at the value of the fixed control orifice and is non-pressure compensated.
Features
- All external surfaces zinc plated
- Adjustment screw cannot be backed out of the valve
- Excellent stability throughout flow range
- Reverse flow capability
- Desired setting may be locked down
- Hardened parts to ensure minimal wear and extend service life
- One-piece body maximizes reliability and minimizes the effect of eccentricity
- Aluminum knob option for ease of adjustment
- Industry common cavity
SR10-01
Flow Regulator, Pressure Compensated, Restrictive Type
Up to 10 gpm (38 l/min) • 5000 psi (350 bar)
Description
A screw-in cartridge, adjustable, pressure compensated, hydraulic flow regulating valve (restrictive type).
Operation
The SR10-01 maintains a constant flow from port 1 to port 2 based on the setting adjustment, regardless of pressure changes downstream of port 2. The flow rate is determined by a fixed control orifice and could be adjusted within a limited range. Reverse flow from port 2 to port 1 is at the value of the fixed control orifice and is non-pressure compensated.
Features
- Excellent stability throughout flow range
- Reverse flow capability
- Desired setting may be locked down
- Adjustment screw cannot be backed out of the valve
- All external surfaces zinc-plated
- Aluminum knob option for ease of adjustment
- Hardened parts to ensure minimal wear and extend service life
- One-piece body maximizes reliability and minimizes the effect of eccentricity
- Industry common cavity
SRP08-01
Flow Regulator, Pressure Compensated, Priority Type
Up to 8 gpm (30 l/min) • 5000 psi (350 bar)
Description
A screw-in cartridge, adjustable, pressure compensated, priority type hydraulic flow regulating valve.
Operation
The SRP08-01 maintains a constant priority flow from port 1 to port 3 based on the setting adjustment, regardless of pressure changes downstream of port 3 or in the bypass line at port 2. The flow rate is determined by a fixed control orifice and could be adjusted within a limited range. Flow in excess of the priority setting is directed to port 2. If the priority flow at port 3 is blocked, the spool will shift, thereby closing off flow to port 2.
Features
- Excellent stability throughout flow range
- Reverse flow capability
- Desired setting may be locked down
- Adjustment screw cannot be backed out of the valve
- Bypass port 2 may be fully pressurized
- All external surfaces zinc-plated
- Aluminum knob option for ease of adjustment
- Hardened parts to ensure minimal wear and extend service life
- Industry common cavity

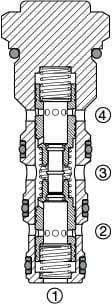

ST10-01
Flow Divider/Combiner, Spool Type
Up to 12 gpm (45 l/min) • 5000 psi (350 bar)
Description
A screw-in cartridge, spool type, pressure compensated flow divider/combiner.
Operation
In the dividing mode, ST10-01 divides the input flow on port 3 between ports 2 and 4, based on the specified ratio, regardless of the operating pressure. In the combining mode, the flow from ports 2 and 4 will be combined into port 3. The division or combining will be maintained even if unequal loads are placed on ports 2 and 4.
The ST10-01 provides synchronizing flow in both combining and dividing modes at bottomed conditions in cylinder applications and at stalled conditions in motor applications. This feature is useful in hydraulic circuits that require cylinders to move at the same time. If one cylinder bottoms out first, the opposite cylinder is provided with a synchronizing flow to allow that cylinder to bottom before both cylinders start moving in the opposite direction.
Features
- All external surfaces zinc-plated
- Hardened parts to ensure minimal wear and extend service life
- One piece body maximizes reliability and minimizes the effects of eccentricity
- High accuracy operation
- Wide flow range down to 25% of nominal flow rating
- Low pressure drop
- Provides re-synchronizing flow after completion of the actuator cycle
- Industry common cavity
ST16-01
Flow Divider/Combiner, Spool Type
Up to 40 gpm (150 l/min) • 5000 psi (350 bar)
Description
A screw-in cartridge, spool type, pressure compensated flow divider/combiner.
Operation
In the dividing mode, ST16-01 divides the input flow on port 3 between ports 2 and 4, based on the specified ratio, regardless of the operating pressure. In the combining mode, the flow from ports 2 and 4 will be combined into port 3. The division or combining will be maintained even if unequal loads are placed on ports 2 and 4.
The ST16-01 provides synchronizing flow in both combining and dividing modes at bottomed conditions in cylinder applications and at stalled conditions in motor applications. This feature is useful in hydraulic circuits that require cylinders to move at the same time. If one cylinder bottoms out first, the opposite cylinder is provided with the synchronizing flow to allow that cylinder to bottom before both cylinders start moving in the opposite direction.
Features
- High accuracy operation
- Low pressure drop
- Wide flow range down to 25% of nominal flow rating
- Provides re-synchronizing flow after completion of the actuator cycle
- All external surfaces zinc-plated
- Hardened parts to ensure minimal wear and extend service life
- One-piece body maximizes reliability and minimizes the effect of eccentricity
- Industry common cavity
