8-Button Digital Controller

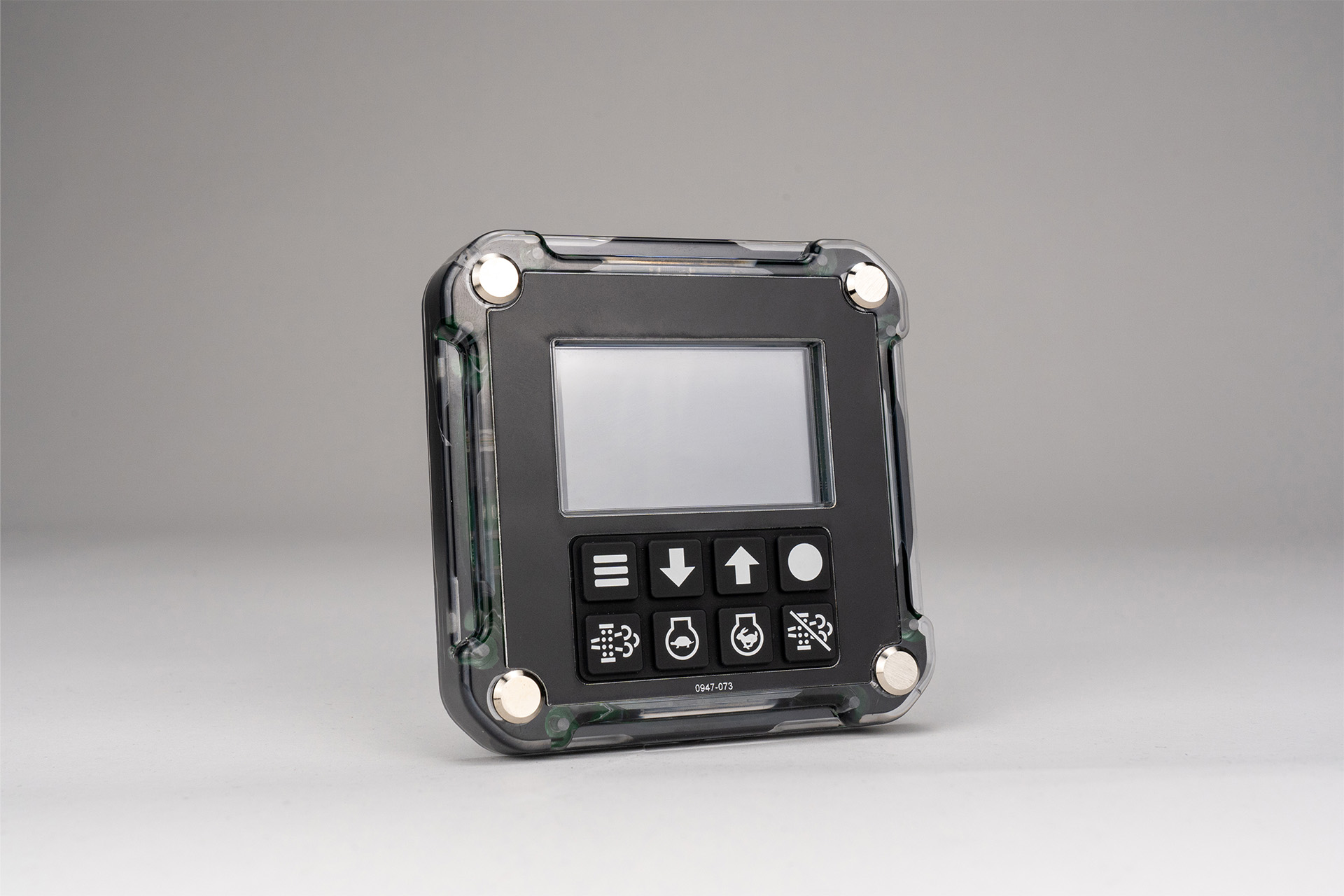

The Nexus Elite is an 8-button digital controller featuring advanced autofeed technology and full SAEJ1939 compatibility. It provides the same functionality as the standard Nexus Digital Controller but enhances usability with external keypad buttons designed for SAEJ1939 throttle adjustment and diesel engine particulate regeneration. In addition to these features, the Nexus Elite offers a comprehensive set of I/O options, including up to 16 voltage inputs, 2 frequency inputs, 1 resistive input, 6 PWM outputs, and 1 low-side relay output. These extensive I/O capabilities make it perfectly suited for Tier 4 Final and Stage V engine applications, offering precise control over hydraulic valves and other machine operations.
Details
Specs
Documentation
Related Products
Model #: LDCJ1939-8BT-AF
- Inputs: Up to 18
- 16 Voltage Inputs: 7 × Wide Band; 9 × Narrow Band*
- 2 Frequency Inputs
- 1 Resistive Input
- Outputs: Up to 7
- 6 × PWM
- 1 × Low Side Relay
-
- 1 low side relay output
- Remote Diagnostics Capable
- 400×240px; Sunlight Readable Display
- Programmable to fit any application
- Includes Autofeed technology
Optional Accessories:
- 8255: Receiver harness with 4’ flying leads
- 6195: Diode suppression kit
* Inputs & Outputs may share pin assignments
+
–
Voltage Inputs
Number
Up To 16* (7 × Wide Band; 9 × Narrow Band)
Signal Range
Wide: 0–27 VDC
Narrow: 0–10 VDC
Max Voltage
32 VDC
Resolution
Wide: 6.7 mV/bit
Narrow: 2.44 mV/bit
+
–
Frequency Inputs
Number
2
Frequency Range
2–20,000 Hz
Min. Signal Voltage
2 VAC
Resolution
Wide: 6.7 mV/bit
Narrow: 2.44 mV/bit
+
–
Resistive Inputs
Number
1
Signal Range
0–1,000 Ω
+
–
Relay Output
Number
1
Type
Low Side
Max Load
500 mA
+
–
PWM Outputs
Number
Up to 6*
Type
High Side Switching (Hydraulic Solenoids, Horns, Lights, Relays, etc.)
Max Load
5 Amps per output
PWM Frequency
31–500 Hz
Duty Cycle Resolution
0.10%
Protection
Over Load Shutdown
Open Load Detection
Industries We Serve
Forestry | Utilities | Agriculture
The Nexus Elite Digital Controller enhances control for forestry machinery, utility vehicles and advanced agricultural equipment.
Concrete | Construction | Municipal
The Nexus Elite Digital Controller provides precise operation for construction equipment, hydraulic control systems and municipal maintenance vehicles.
Mining | Metals | Oil & Gas
The Nexus Elite Digital Controller ensures robust control for mining machinery, metal processing equipment and oil field operations.
Defense & Aerospace
The Nexus Elite Digital Controller delivers precise operation for machine control, military support vehicles and hydraulic systems.
