Bosch Production Air Tools for Industry Applications
Bosch Rexroth offers a full line of lightweight and robust air tools for everyday use in all industrial applications in high-production locations. These Bsoch Rexroth tools are driven by compressed air, which provides several advantages over handheld. The pneumatic rotary vane motor in these air tools enables the tools to spin and conduct mechanical work without risking burnout, which can occur with electric motors. Bosch Rexroth air tools also reduce maintenance and overhead costs with their modular design, and they share many of the same air motors, housings, and clutches that other Bosch Rexroth tools have.

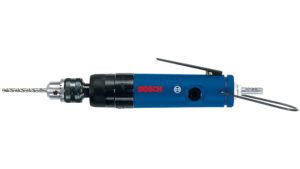

Drills
- Rotate in forward direction only
- Polyamide housing reduces weight and provides operator comfort
- Excellent performance/weight ratio
- Air motor provides long run times without overheating

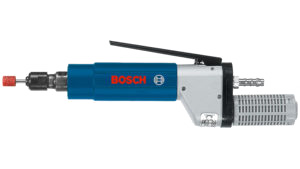

Straight Grinders
- Powerful 3/4 hp speed regulated motor
- External silencer
- Narrow housing provides comfortable grip
- Narrow nose allows good clearance in tight areas
- 1/4″ or 6 mm collet available
Tapper & Lockover Wrenches
- Controllable tightening torque makes them suitable for every application
- Can be switches from left-hand rotation to right-hand rotation with one hand
- Exceptional lifetime and performance

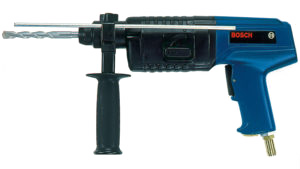

Rotary Hammers
- Impact and abrasion-resistant polyamide housing
- SDS Plus tool holder
- Depth gauge
- Auxiliary handle
- Drill capacity of 3/4″ in concrete
- Powerful 0.93 hp motor
- Variable speed switch
- Perfect for wet locations where electric tools cannot be used

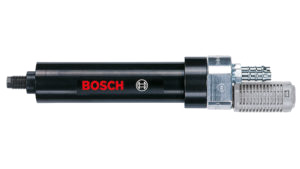

Motors
- Modular design suitable for many applications
- CLEAN motors require no oil and provide extremely long run times in harsh environments
- Able to provide constant speed
- Unlimited application due to wide range of accessories
Accessories
- Perfectly coordinated with Bosch production air tools and applications
- Cable balancers
- Hose pull balances
- Accessories for drills, straight grinders, screwdrivers, wrenches and motors
CLEAN Technology
This Bosch air tool line includes air motors with CLEAN technology and accessories for a complete solution to your application requirements. CLEAN is an acronym for several technical features of Bosch’s air tools and motors:
Consumption Optimized
Lubrication Free
Ergonomic
Air Tool
Noise Reduction
CLEAN technology protects the tool, user, and environment by removing the need for automatic oilers and reducing air consumption and tool noise. Save costs and time with CLEAN motors, as they never need oil. In addition to lowering tool air consumption by up to 30 percent, CLEAN technology also reduces overhead energy costs, and it reduces tool noise by several decibels (depending on application). CLEAN technology saves you money, energy, and repair time while also improving employee-working environments by reducing noise and air pollution.
Benefits of Bosch Ergonomic Design
Bosch tools run smooth, are lightweight and quiet. Their polyamide housing, made from fiberglass-reinforced plastic, provides a number of benefits, including:
- Insulation against extreme temperatures
- Maximum grip comfort
- Light, rigid and virtually unbreakable
- Saves up to 40% in total tool weight

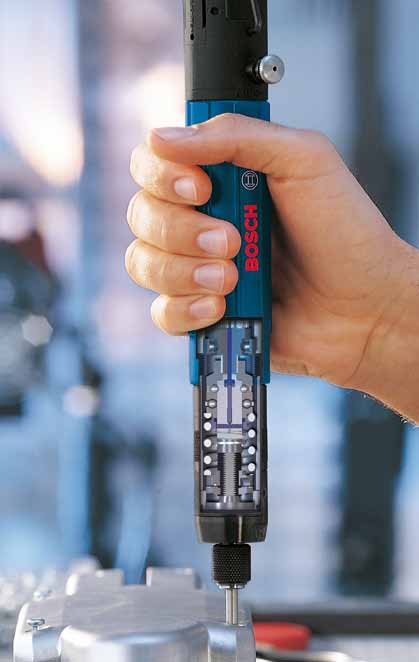

Bosch Shut-off Clutch Advantage
Precision shut-off clutch:
- Cmk rating above 1.67 at Tolerance +/- 10%
- Accuracy rivals DC nutrunners, which cost 10 times more
- Quality conforms to ISO 5393
- Most accurate clutch in the industry
Excellent torque control:
- Easy external torque adjustment
- Reverse torque is higher than in forward rotation, which helps in the removal of a tightened fastener
- Broad torque range from 0.6 to 15 Nm (0.44 – 11 Ft. – Lbs.)
Service-friendly:
- Clutch has few parts for easy service
- Modular design minimizes spare part inventory
- Clutch is shared by many air and cordless tools
- Patented design is virtually wear-free; lasts for millions of cycles before wear occurs
Bosch provides a 10-year guarantee for all spare parts for years of customer maintenance concerns.
For more technical information on Bosch’s Production Air Tools, visit Bosch’s online resources here.
