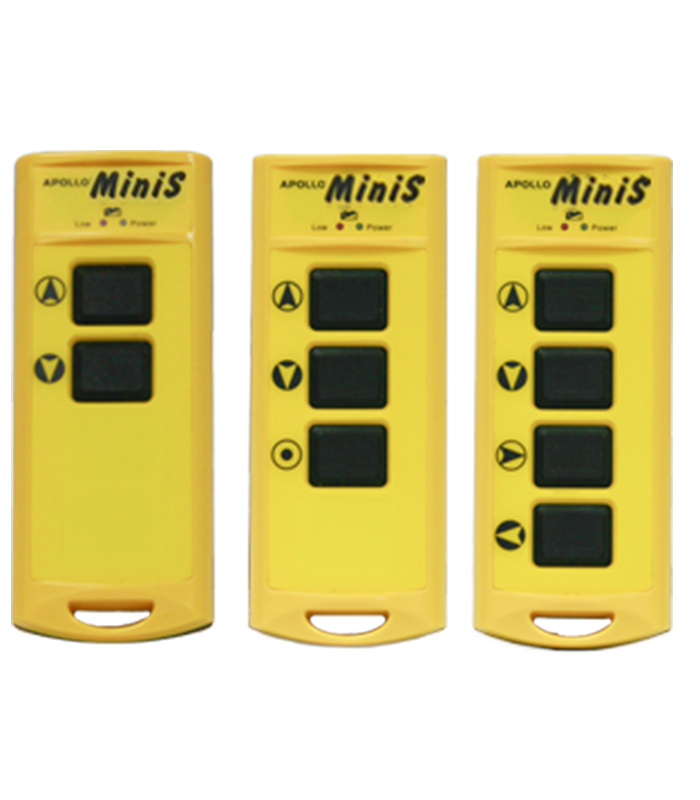

The Mini-S is the next generation of the popular Mini series of Apollo industrial radio remote controls. This kit is best suited for environments where there is a saturation of radio frequencies, like when it’s necessary to install multiple systems in a small area. The Mini-S retains its compact, lightweight design and is still available in 2, 3 or 4 functions. The Mini-S has a rechargeable transmitter with overcharge protection, allowing the user approximately 40 hours of operation between charges. The Mini-S functions in the 2.4 GHz frequency band and utilizes an auto-scanning feature to select the optimum frequency for signal stability and reduced interference. All of this, plus a 30-meter range and an IP65 enclosure, makes the Apollo Mini-S an ideal choice for simple industrial control applications.
Details
Specs
Documentation
Related Products
Model #: LDA
u003culu003ern tu003cli style=u0022font-weight: 400;u0022 aria-level=u00221u0022u003eu003cspan style=u0022font-weight: 400;u0022u003eFunctions: 2–4u003c/spanu003eu003c/liu003ern tu003cli style=u0022font-weight: 400;u0022 aria-level=u00221u0022u003eu003cspan style=u0022font-weight: 400;u0022u003eFrequency: FSK 2.4 GHz (auto scan)u003c/spanu003eu003c/liu003ern tu003cli style=u0022font-weight: 400;u0022 aria-level=u00221u0022u003eu003cspan style=u0022font-weight: 400;u0022u003eOperating Range: 30 m (LOS)u003c/spanu003eu003c/liu003ern tu003cli style=u0022font-weight: 400;u0022 aria-level=u00221u0022u003eu003cspan style=u0022font-weight: 400;u0022u003eIngress Protection: IP65u003c/spanu003eu003c/liu003ern tu003cli style=u0022font-weight: 400;u0022 aria-level=u00221u0022u003eu003cspan style=u0022font-weight: 400;u0022u003eOperating Temperature: -10°–75° C (14°–167° F)u003c/spanu003eu003c/liu003ern tu003cli style=u0022font-weight: 400;u0022 aria-level=u00221u0022u003eu003cspan style=u0022font-weight: 400;u0022u003eRx Source Voltage: 12/24 VDC or 110–440 VAC 50/60 Hzu003c/spanu003eu003c/liu003ern tu003cli style=u0022font-weight: 400;u0022 aria-level=u00221u0022u003eu003cspan style=u0022font-weight: 400;u0022u003eProtection: Short Protectionu003c/spanu003eu003c/liu003ernu003c/ulu003e
u003cspan style=u0022font-weight: 400;u0022u003eIncludesu003c/spanu003ernu003culu003ern tu003cli style=u0022font-weight: 400;u0022 aria-level=u00221u0022u003eu003cspan style=u0022font-weight: 400;u0022u003eTransmitter: MINI S 20 or MINI S 30 or MINI S 40u003c/spanu003eu003c/liu003ern tu003cli style=u0022font-weight: 400;u0022 aria-level=u00221u0022u003eu003cspan style=u0022font-weight: 400;u0022u003eReceiver: AC or DC Power Receiveru003c/spanu003eu003c/liu003ernu003c/ulu003e
+
–
Transmitter Specifications
Operating Range
30 M (LOS)
Frequency
FSK 2.4 GHz (auto scan)
Response Time
u003c 100 ms
Output Power
u003c 10 mW
Operating Temperature
-10°–75° C (14°–167° F)
Antenna
Internal
Power Supply
3.7V LiPo Rechargeable Battery
Ingress Protection
IP65
Material
Industrial ABS + PC
Address Codes
42 sets
Weight
100 g (Excluding Batteries)
Dimensions
126 × 50 × 29mm
+
–
Receiver Specifications
Frequency
FSK 2.4 GHz (auto scan)
RF Sensitivity
-94 dBm
Antenna
External
Operating Temperature
−10°–75° C (14°–167° F)
Power Supply
12–24VDC or 110–440VAC 50/60 Hz
Ingress Protection
IP67
Security Codes
256 sets
Weight
280 g (Including 2 meters of 8 conductor cable)
Power Consumption
u003c2.76W
Frequency
FSK 2.4 GHz (auto scan)
No file found in this row.
No file found in this row.
Industries We Serve
Forestry | Utilities | Agriculture
The Apollo Mini-S Kit enhances control for conveyor systems, utility gates and irrigation pumps.
Concrete | Construction | Municipal
The Apollo Mini-S Kit provides precise operation for construction hoists, crane controls and street sweeper doors.
Mining | Metals | Oil u0026 Gas
The Apollo Mini-S Kit ensures reliable control for conveyor belts, metal press doors and oil rig pump systems.
Defense u0026 Aerospace
The Apollo Mini-S Kit delivers precise operation for military vehicle lifts and aerospace hangar doors.
