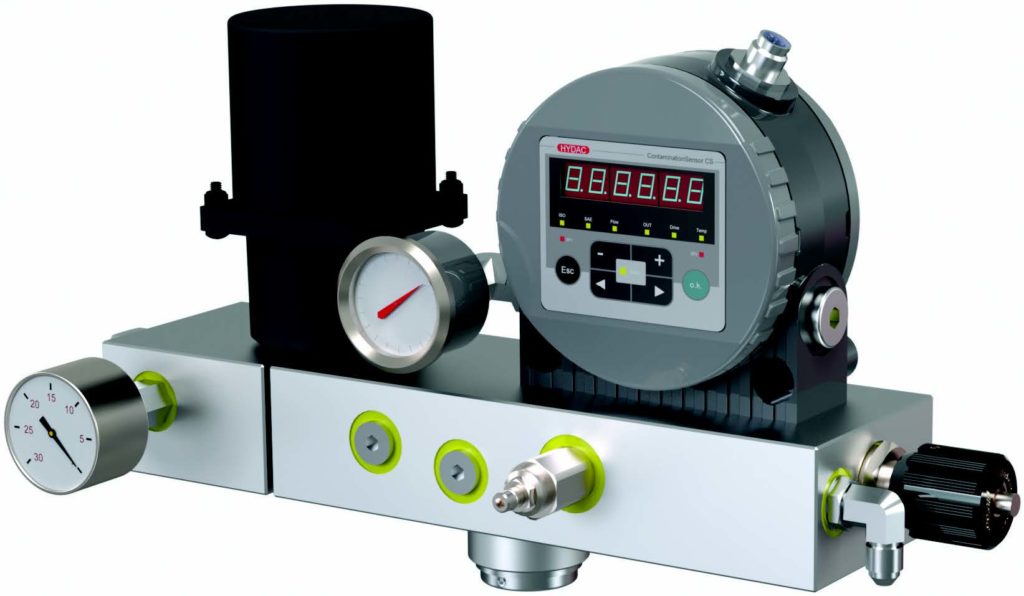

HYDAC just released the newest addition to the Hy-Trax Series, a High Viscosity Fluid Sampling System. The Fluid Sampling System provides local visibility to the fluid condition of critical systems. It is ideal for applications including industrial gearboxes, wind turbine gearboxes, bulk fluid storage vessels and industrial hydraulics in cooler climates.
Features and Benefits
- Integrated micro variable speed driven pump-motor provides optimal flow for accurate sensor readings in variable conditions
- The HY-TRAX High Viscosity Fluid Sampling System allows a user to monitor fluid condition from a reservoir tank or low-pressure sampling point
- Compact design allows for installations with tight space constraints
- The potentiometer-based pump controller is housed in a compact IP40 enclosure
- Optional AC adapter available for converting 115V AC/60 Hz to 24V DC
- Fluorocarbon elastomer (FKM) seals
- Fluid viscosities up to 3,250 SUS (700 cSt)
- Adjustable flow control valve providing optimal pressure for accurate sensor readings
What’s Included
- HY-TRAX High Viscosity Fluid Sampling System according to model code
- Sensor cables for integration with control module according to mode code (pass-through communication cables ordered separately)
- Operation and maintenance manual
Technical Specifications
| Contamination measurement range according to ISO 4406:1999 | Full-scale: 9/8/7 to 25/24/23 Calibrated: 13/11/10 to 23/21/18 |
| Contamination output code | Standard: ISO 4406:1999 and SAE AS 4059(D) Optional: ISO 4406:1987, NAS 1638 and ISO 4406:1999 |
| Self-diagnostics | Continuous with error indication via status LED on CS1000 |
| Permissible inlet pressure range | -9.8 to 50 psig (-0.7 to 3.5 bar) |
| Maximum permissible operating pressure | 160 psig |
| Inlet port thread type | SAE J1926-1: 3/4-16 – Female |
| Outlet port thread type | SAE J514: 7/16-20 37 – Male |
| Seal material | FKM (Viton®) |
| Permissible fluid temperature range | 32˚F to 185˚F (0˚C to 85˚C) |
| Permissible ambient temperature range | 32˚F to 104˚F (0˚C to 40˚C) |
| Maximum permissible fluid viscosity | 3,250 SUS (700 cSt) |
| Pump type | External gear |
| Power supply voltage | 24V DC |
| Maximum power consumption | 100W |
| Contamination sensor analog output signal | Standard: 4-20mA (time-coded) Optional: 2-10V (time-coded) |
| Water sensor (AS1000 & AS3000) analog output signal | 4-20mA |
| Oil aging sensor (HLB) analog output signal | 4-20mA (time-coded) |
| Ingress protection rating | IP 40 (control enclosure), IP 34 (pump motor) |
| Weight | Control enclosure: 5 lbs. Fluid sampling and condition monitoring unit: 10 lbs. |
