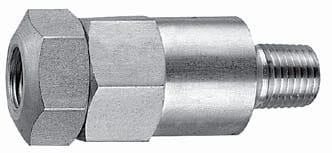

F01 Series
Port Size 1/4; Flows to 17 SCFM
About
This small, aluminum in-line filter is designed to provide protection for portable pneumatic hand tools. It weighs only 2 ounces with a throw-away filter element rated at 5 microns. Either port may be used as the inlet port. Flow is 17 SCFM (8 dm3/s) at 90 PSIG (6.2 bar) inlet pressure with 5 PSIG (0.3 bar) pressure drop.

F03 Series
Port Sizes 1/8, 1/4; Flows to 24 SCFM
Features
- Excellent Water Removal Efficiency
- Easily Disassembled for Servicing Without the Use of Tools
- Unique Deflector Plate that Creates Swirling of the Air Stream Ensuring Maximum Water and Dirt Separation

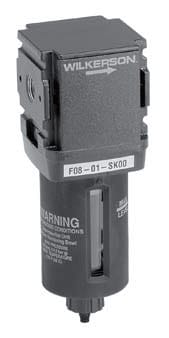

F08 Series
MODULAR
Port Sizes 1/8, 1/4; Flows to 50 SCFM
Features
- Standard 5 Micron Filtration
- Quick-disconnect Bowl
- Bowl Guard
- High Flow Capacity

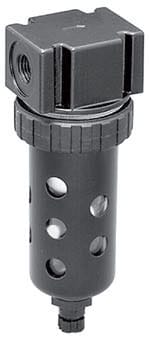

F12 Series
MODULAR
Port Sizes 1/4, 3/8; Flows to 58 SCFM
Features
- Excellent Water Removal Efficiency
- Unique Deflector Plate and Shroud Creates a Swirling of the Air Stream Ensuring Maximum Water and Dirt Separation
- Large Filter Element Surface Guarantees Lot Pressure Drop and Increased Element Life
- 5 Micron Standard and Activated Carbon Element Available

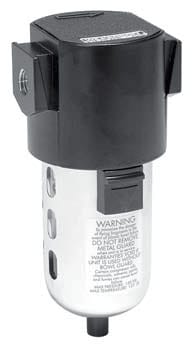

F16 Series
MODULAR
Port SIzes 1/4, 3/8, 1/2; Flows to 80.4 SCFM
Features
- Manual Drain
- 5 Micron Rated Element
- Quick-disconnect Bowl Guard with Integral Plastic Bowl and Safety Latch

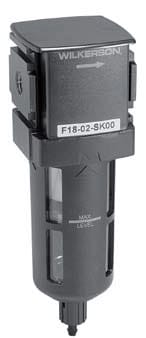

F18 Series
MODULAR
Port sizes 1/4, 3/8, 1/2; Flows to 145 SCFM
Features
- Standard 5 Micron Filtration
- High Flow Capacities
- 1/2″ NPT / BSPP-G Over-port
- Quick-disconnect Bowl
- Bowl Guard
- Light Weight
- Barbed Manual Drain Connection with Pipe-away

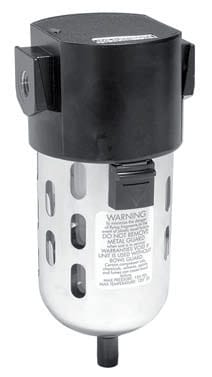

F26 Series
MODULAR
Port Sizes 1/4, 3/8, 1/2; Flows to 149.8 SCFM
Features
- Manual Drain
- 5 Micron Rated Element
- Quick-disconnect Bowl Guard with Integral Plastic
- Bowl and Safety Latch

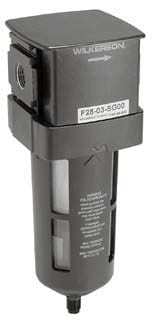

F28 Series
MODULAR
Port Sixes 3/8, 1/2, 3/4; Flows to 165 SCFM
Features
- Standard 5 Micron Filtration
- High Flow Capacities
- 3/4″ NPT / BSPP-G Over-port
- Quick-disconnect Bowl
- Bowl Guard
- Light Weight
- Barbed Manual Drain Connection with Pipe-away

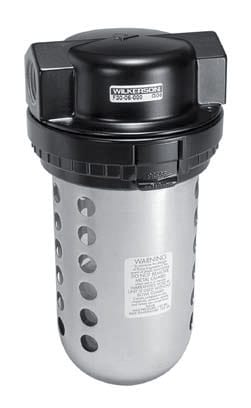

F30 Series
Port Sizes 3/4, 1; Flows to 323 SCFM
Features
- Standard Manual Drain
- Standard 5 Micron Rated Element
- Quick-disconnect Clamp Ring for Easy Bowl Removal
- Bowl Guard

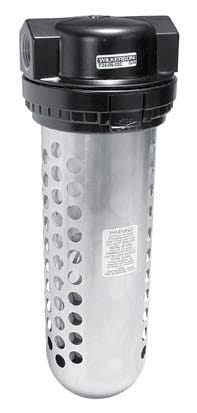

F34 Series
Port Sizes 1/2, 3/4, 1; Flows up to 362 SCFM
Features
- Standard Auto. Drain
- Standard 5 Micron Rated Element
- Quick-disconnect Clamp Ring for Easy Bowl Removal
- Bowl Guard

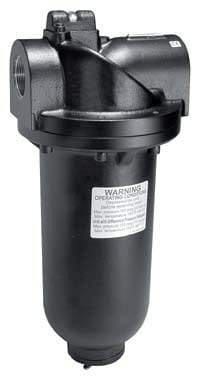

F35 Series
Port Sizes 1-1/4, 1-1/2, 2; Flows to 1400 SCFM
Features
- Heavy-duty Cast Aluminum Housings to Withstand Operating Pressures Up to 250 PSIG
- Differential Pressure Indicator to Eliminate the Guesswork of Element Replacement
- Differential pressure gauge available, order separately, Kit DP3-01-000
- Unique Drain Mounting Plate Design Offers a Troublefree Method for Interchanging and Installing External Drains

F36 Series
Port Size 2; Flows to 1400 SCFM
Features
- Heavy-duty Cast Aluminum Housings to Withstand Operating Pressures Up to 300 PSIG
- Differential Pressure Indicator to Eliminate the Guesswork of Element Replacement
- Unique Drain Mounting Plate Design Offers a Troublefree Method for Interchanging and Installing External Drains
- 5 Micron High Flow Particulate Element

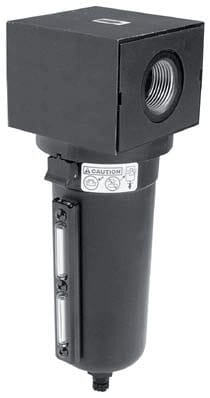

F39 Series
MODULAR
Port Sizes 3/4, 1; Flows to 280 SCFM
Features
- Standard 5 Micron Filtration
- High Flow Capacities
- 3/4″ and 1″ NPT Ports
- Port Blocks for BSPP Thread and 1-1/2″ Ports
- Quick-disconnect Bowl

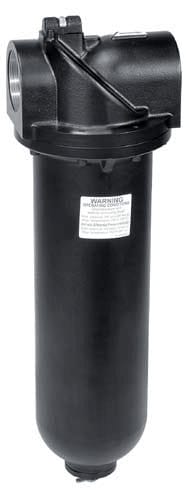

F43 Series
Port Size 3; 2900 SCFM
Features
- Heavy-duty Cast Aluminum Housings to Withstand Operating Pressures Up to 250 PSIG*
- Differential Pressure Indicator to Eliminate the Guesswork of Element Replacement
- 5 Micron High Flow Particulate Element
- Differential pressure gauge available, order separately, Kit DP3-01-000Unique Drain Mounting Plate
- Design Offers a Trouble-free Method for Interchanging and Installing External Drains

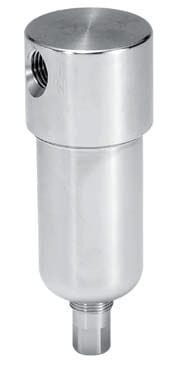

SF1 Series
STAINLESS STEEL
Port Size 1/4; Flows to 23 SCFM
Features
- Stainless Steel Construction Handles Most Corrosive Environments
- Fluorocarbon Seals Standard
- Meets NACE Specifications MR-01-75/ISO 15156
- 1/8″ Female Threaded Drain
- High Flow: 1/4″ – 23 SCFM

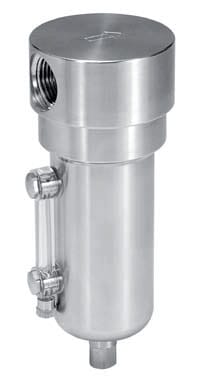

SF2 Series
STAINLESS STEEL
Port Size 1/2; Flows to 70 SCFM
Features
- Stainless Steel Construction Handles Most Corrosive Environments
- Meets NACE Specifications MR-01-75/ISO 15156
- 1/8″ Female Threaded Drain
- High Flow: 1/2″ – 70 SCFM
