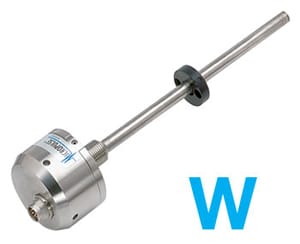

Compact, rugged, and built to last, the all stainless steel “W” housing can withstand the rigors of harsh, realworld applications. With its compact size and “built like a tank” ruggedness, the “W” housing is the logical choice for demanding applications.
Applications:
- Hydraulic cylinder
- Primary wood (lumber)
- Valve control
- Food processing
- Waste water plants
- Pulp and paper
- Gate position
- Hydro/Civil engineering
Features:
- Rugged all stainless steel housing
- Designed for demanding applications
- Eliminates need for protective covers
- Pressure rated 8700 psi
- 3/4″x16- UNF threads (W housing)
- Metric M18 thread version available (H housing)
- Outputs
- Analog (voltage or current)
- Digital start/stop
- Pulse width Modulation (PWM)
- SSI
- Stroke length
- 1″ to 200″
- Quick disconnect or integral cable
