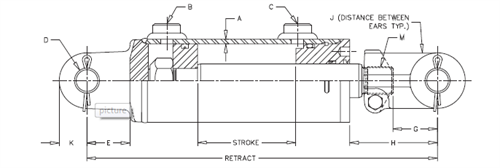

3000 psi Welded Cylinder – Double Acting – Heavy Duty

STANDARD FEATURES

3000 PSI – All purpose line
Bore sizes 1.5″ to 4″
Skived/honed tubing
Heavy duty welded construction
Chromed, ground & polished piston rod
Ductile iron piston & gland
Ductile clevis & cast steel base end
Urethane u-cup & urethane wiper in gland, crown seal on piston
Square ring gland retainer provides positive lock
Pins, clips & cotters included
Standard color is white
Stroke control may be installed on 8″ strokes

SAE-19408

1 1/2 x 8

Full PSI

20 1/4

3/4

3/16

#6 SAE

0.765

2 5/8

5 1/4

5/8

3/4

–

SAE-19410

1 1/2 x 10

4,600 LBS

20 1/4

3/4

3/16

#6 SAE

0.765

2 5/8

3 1/4

5/8

3/4

–

SAE-19412

1 1/2 x 12

3,525 LBS

22 1/4

3/4

3/16

#6 SAE

0.765

2 5/8

3 1/4

5/8

3/4

–

SAE-19416

1 1/2 x 16

1,525 LBS

31 1/2

3/4

3/16

#6 SAE

0.765

2 5/8

8 1/2

5/8

3/4

–

SAE-42008

2 x 8

Full PSI

20 1/4

1 1/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

5 9/16

1 1/16

1 1/8-12

SAE-42010

2 x 10

Full PSI

20 1/4

1 1/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8-12

SAE-42012

2 x 12

Full PSI

22 1/4

1 1/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8-12

SAE-42016

2 x 16

Full PSI

31 1/2

1 1/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

8 13/16

1 1/16

1 1/8-12

SAE-42020

2 x 20

7,575 LBS

30 1/4

1 1/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8-12

SAE-42024

2 x 24

5,600 LBS

34 1/4

1 1/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8-12

SAE-42508

2 1/2 x 8

Full PSI

20 1/4

1 1/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

5 9/16

1 1/16

1 1/8-12

SAE-42510

2 1/2 x 10

Full PSI

20 1/4

1 1/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8-12

SAE-42512

2 1/2 x 12

Full PSI

22 1/4

1 1/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8-12

SAE-42516

2 1/2 x 16

10,800 LBS

31 1/2

1 1/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

8 13/16

1 1/16

1 1/8-12

SAE-42520

2 1/2 x 20

11,700 LBS

30 1/4

1 1/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8-12

SAE-42524

2 1/2 x 24

8,600 LBS

34 1/4

1 1/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8-12

SAE-43008

3 x 8

Full PSI

20 1/4

1 3/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

5 9/16

1 1/16

1 1/8

1 1/8-12

SAE-43010

3 x 10

Full PSI

20 1/4

1 3/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8

1 1/8-12

SAE-43012

3 x 12

Full PSI

22 1/4

1 3/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8

1 1/8-12

SAE-43016

3 x 16

16,900 LBS

31 1/2

1 3/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

8 13/16

1 1/16

1 1/8

1 1/8-12

SAE-43020

3 x 20

17,300 LBS

30 1/4

1 3/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8

1 1/8-12

SAE-43024

3 x 24

12,800 LBS

34 1/4

1 3/8

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 9/16

1 1/16

1 1/8

1 1/8-12

SAE-43508

3 1/2 x 8

Full PSI

20 1/4

1 1/2

3/16

#8 SAE

1.015

1 3/4

1 13/16

5 3/8

1 1/8

1 1/4

1 1/2-12

SAE-43510

3 1/2 x 10

Full PSI

20 1/4

1 1/2

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 3/8

1 1/8

1 1/4

1 1/2-12

SAE-43512

3 1/2 x 12

Full PSI

22 1/4

1 1/2

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 3/8

1 1/8

1 1/4

1 1/2-12

SAE-43516

3 1/2 x 16

24,200 LBS

31 1/2

1 1/2

3/16

#8 SAE

1.015

1 3/4

1 13/16

8 3/8

1 1/8

1 1/4

1 1/2-12

SAE-43520

3 1/2 x 20

24,700 LBS

30 1/4

1 1/2

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 3/8

1 1/8

1 1/4

1 1/2-12

SAE-43524

3 1/2 x 24

18,250 LBS

34 1/4

1 1/2

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 3/8

1 1/8

1 1/4

1 1/2-12

SAE-44008

4 x 8

Full PSI

20 1/4

1 3/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

5 3/8

1 1/8

1 1/4

1 1/2-12

SAE-44010

4 x 10

Full PSI

20 1/4

1 3/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 3/8

1 1/8

1 1/4

1 1/2-12

SAE-44012

4 x 12

Full PSI

22 1/4

1 3/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 3/8

1 1/8

1 1/4

1 1/2-12

SAE-44016

4 x 16

Full PSI

31 1/2

1 3/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

8 3/8

1 1/8

1 1/4

1 1/2-12

SAE-44020

4 x 20

Full PSI

30 1/4

1 3/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 3/8

1 1/8

1 1/4

1 1/2-12

SAE-44024

4 x 24

33,525 LBS

34 1/4

1 3/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 3/8

1 1/8

1 1/4

1 1/2-12

SAE-44030

4 x 30

22,900 LBS

40 1/4

1 3/4

3/16

#8 SAE

1.015

1 3/4

1 13/16

3 3/8

1 1/8

1 1/4

1 1/2-12
