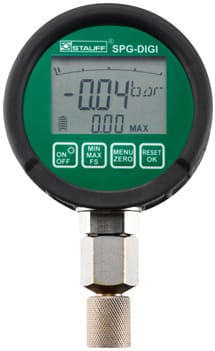

Digital Pressure Gauge
SPG-DIGI Series

Product Description
The STAUFF SPG-DIGI digital pressure gauges are intended to measure and display pressures in hydraulic systems, particularly for oils, lubricants and water. They can display the current measured values, as well as minimum and maximum values, with an accuracy of 0,5% of full scale. The STAUFF SPG-DIGI digital pressure gauges are available individually, or as part of a complete pressure test kit. They are very sturdy, reliable, easy to use and come with the CE mark (evidence of conformity compliance).
Display
- Text display 4-1/2-digit / Size: 1.97 x 1.34 (50 x 34)
- Actual value display: 0.59 (15)
- MIN-/MAX or full scale display: 0.31 (8)
- Units: bar, PSI, Mpa, kPa, mbar
- Bar graph display (drag indicator)
- Background lighting
- Zero correction
- Battery charge display
Dimensions
- Diameter: 3.11 (79)
- Depth: 1.3 (33)
- Weight: 1.19 Ibs. (540 g)
SPECIFICATIONS
- Output of the current measured value
- Accuracy: ± 0,5 % full scale typ., ± 0,5 % full scale max.
- Resolution: 4.096 steps
- Peak pressure measurement with 10 ms sampling rate
- Ambient temperature: 14°F … 122°F (-10°C … 50°C)
- Media temperature: -4°F … 176°F (-20°C … 80°C)
- Storage temperature: -4°F … 140°F (-20°C … 60°C)
- Relative humidity: <85%
- Battery life: Max. 1,500 hours (operating without lighting, 2 x 1.5 VDC AA (LR6-AA) Alkaline Mignon)
- Lighted measured value display
- Pressure connection: -4 SAE made of 1.4404 stainless steel
- Housing made of die-cast zinc with TPE rubber protective covering
- Adaptor made of steel, zinc-nickel coated
- Gaskets: NBR (Buna-N); FKM (Viton) or EPDM upon request
- Safety class: EN 60529 – IP 67
- Vibration: IEC 60068-2-6 / 10 … 500 Hz 5 g
- Shock: IEC 60068-2-27 25 g
- Load cycles (106): 100

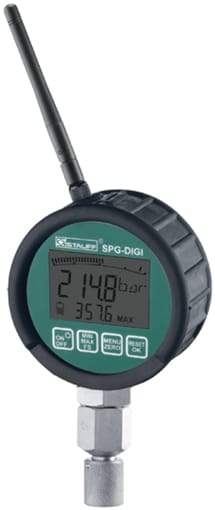

Wireless Digital Pressure Gauge
SPG-DIGI-W Series

Product Description
In addition to the existing STAUFF product range in the field of digital pressure measuring, the new wireless digital pressure gauge (SPG-DIGI-W) is now available, allowing a most precise determination and wireless transmission of measured values to a PC. With its compact design and the ease of operation, the SPG-DIGI-W is actually a wireless single-channel data logger. With just a single PC adaptor, you can simultaneously transmit measured values of up to 16 digital pressure gauges over a distance of up to 160 ft. (50 m) to your computer. The configuration of the gauges and the inspection of your machinery and equipment can be easily accomplished from your desk, thus allowing the direct evaluation and storage of the measured values. Please note that measured values cannot be displayed in real time.
TECHNICAL DATA
Display
- Text display 4 1/2-digit / Size: 1.97 x 1.34 (50 x 34)
- Actual value display: 0.59 (15)
- MIN-/MAX or fullscale display: 0.31 (8)
- Units: bar, PSI, Mpa, kPa, mbar
- Bar graph display (drag indicator)
- Background lighting
- Zero correction
- Battery charge display
Dimensions
- Diameter: 3.11 (79)
- Depth: 1.3 (33)
- Weight: 1.19 Ibs. (540 g)
SPECIFICATIONS
- Output of the current measured value
- Accuracy: ± 0,25 % FS* typ., ± 0,5 % full scale max.
- Resolution: 4.096 steps
- Peak pressure measurement with 10 ms sampling rate
- Ambient temperature: 14°F … 122°F (-10°C … 50°C)
- Media temperature: -4°F … 176°F (-20°C … 80°C)
- Storage temperature: -4°F … 140°F (-20°C … 60°C)
- Relative humidity: <85%
- Battery life: Max. 800 hours (operating without lighting, 2 x 1.5 VDC AA (LR6-AA) Alkaline Mignon)
- Lighted measured value display
- Pressure connection: 1.4404 stainless steel
- Housing made of die-cast zinc with TPE rubber protective covering
- Adaptor made of steel, zinc-nickel coated
- Gaskets: NBR (Buna-N); FKM (Viton) or EPDM upon request
- Safety class: EN60529-IP54
- Vibration: IEC 60068-2-6 / 10 … 500 Hz 5 g
- Shock: IEC 60068-2-27 25 g
- Load cycles (106): 100
PC Functions:
- Read-out data from measured data memory via a radio interface (2.4 GHz)
- Measuring over a distance of max. 160 ft. (50 m)
- Remote configuration of the gauges
Memory Functions:
- 5.000 measurement values (MAX pressure peaks)
- Setup of storage interval
- Time based recording
- Pressure spike monitoring
