SRV Series
Specifications
- Reduces Fluid Aeration and Noise in Oil Tanks
- Aluminum End Cap – Other Metal Parts are Zinc Plated
- Operating Temperature: -25°C (-13°F) to 100°C (212°F)
- NPT Thread
- Flow Range to 950 lpm (250 GPM)
- Maximum Working Pressure 20 bar (300 PSI)
Options
- Available in BSP on Request
- Custom Designs Available on Request

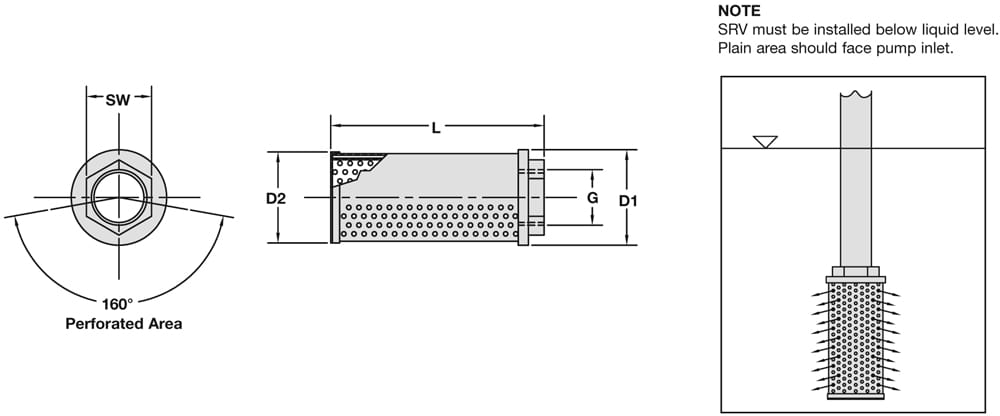

Dimensions
Ordering Code and Dimensions Table
| Part No. | Thread Size G | Max. Flow | Length L | Dia. D1 | Dia. D2 | Hex SW |
| gpm (lpm) | in (mm) | in (mm) | in (mm) | in (mm) | ||
| SRV-050-N12 | 3/4″ NPT | 50 (13) | 4.3 (109) | 2.5 (64) | 2.4 (60) | 1.4 (36) |
| SRV-114-N16 | 1″ NPT | 114 (30) | 5.5 (139) | 2.5 (64) | 2.4 (60) | 1.9 (46) |
| SRV-200-N20 | 1-1/4″ NPT | 200 (53) | 5.5 (139) | 3.4 (86) | 3.2 (82) | 2.4 (60) |
| SRV-227-N24 | 1-1/2″ NPT | 227 (60) | 7.9 (200) | 3.4 (86) | 3.2 (82) | 2.4 (60) |
| SRV-454-N32 | 2″ NPT | 454 (120) | 10.2 (260) | 3.4 (86) | 3.2 (82) | 2.8 (70) |
| SRV-650-N40 | 2-1/2″ NPT | 680 (180) | 8.3 (211) | 5.7 (150) | 5.7 (145) | 3.5 (90) |
| SRV-950-N48 | 3″ NPT | 950 (250) | 10.7 (272) | 5.7 (150) | 5.7 (145) | 3.9 (100) |
