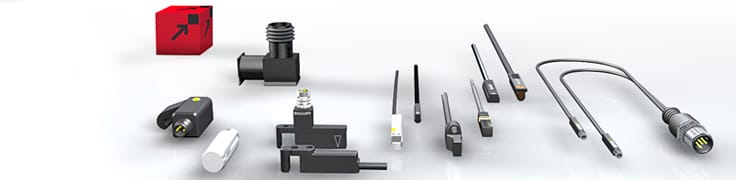

Balluff BMF Magnetic Field Sensors
- Proven magnetoresistive (MR) and giant magnetoresistive (GMR) technologies
- Compact size, perfect for short stroke cylinders and mini grippers
- Low hysteresis, precise switch points
- Shock and vibration resistant
- High noise immunity
- Reliable position detection, even at high speeds
- LIFETIME warranty
Substantial savings when using two sensors on one cylinder
- One, four-conductor cable verses two, three-conductor cables
- Less installation hardware
- Fewer wiring terminations
- Less installation time
- Lower initial costs compared to two separate sensors
- Double the number of sensors into a multiple interface block or sensor hub
Global

Features:
- Local service and support from Balluff authorized distributors
- Multiple housing styles
- C-slot and T-slot single sensors
- C-slot and T-slot V-Twin sensors
- Mounting brackets for T-slot sensor for tie rod and round body cylinders
- Quick-disconnect or cable out styles
C-Slot& T-Slot
Bracketless


BMF 204 – Designed for 3.8 mm C-slot
BMF 214 – Designed for 4 mm C-slot
- Slides into the C-slot from the end
- Superior holding strength
- Miniature design for short stoke cylinders and grippers
- Precise accurate positioning
BMF 273 – Easy installation for C-slots
- Installs from above into the slot-drop-in installation
- Installs with standard screwdriver or 1.3 mm Allen wrench
- Clutched mounting screw prevents over-tightening
- Precise, accurate positioning
C-Slot& T-Slot
Bracket Required


BMF 103 – Optimized for short stroke cylinders and grippers
- Perpendicular mounting for very short linear footprint
- Extremely compact size-shortest housing on the market
- Schunk gripper versions available (tuned for Schunk magnets)
- Two sensors can be installed as close together as 5 mm
BMF 303 – Miniature, flush mounting
- Flush mounting-disappears into the slot
- Precise, accurate positioning
- Schunk gripper versions available (tuned for Schunk magnets)
