Hedland offers a complete line of over 15,000 variable area flow meters to measure oil, phosphate esters, water and water-based fluids, as well as air and other compressed gases. In addition to the basic in-line model, these variable area flow meters are available in high temperature models and test kits with pressure gauge.
Petroleum Fluids

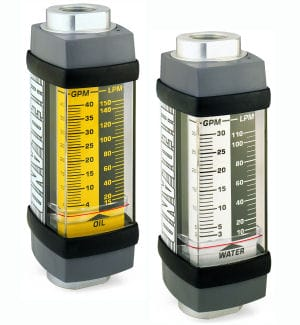

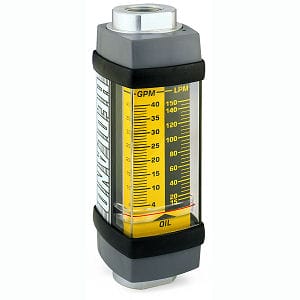

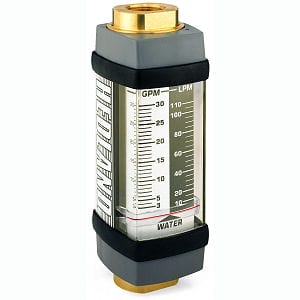

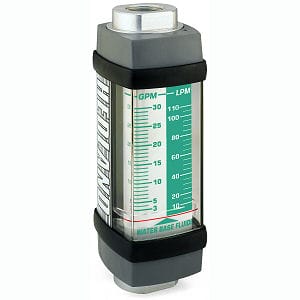

Basic Flow Meter
- Flow ranges: 0.02 – 0.2 GPM (0.1 – 0.75 LPM) up to 20 – 300 GPM (100 – 1100 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 3 inch ports
- Ports: SAE, NPTF, BSPP, Code 61 and Code 62, 4-bolt flanged
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: .876 specific gravity, 140 SUS (32 cSt) hydraulic oil
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt)
- Optional: Special scales available & Reverse flow by-pass

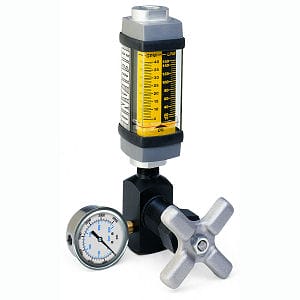

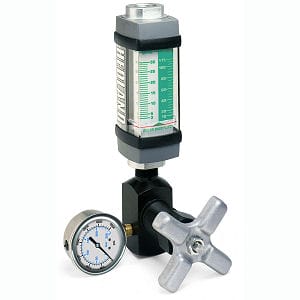

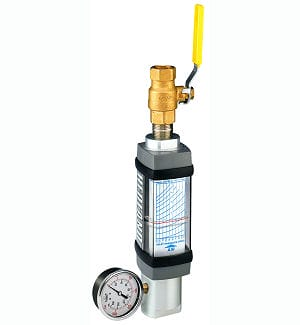

Test Kit
- Flow ranges: 0.1 – 1.0 GPM (0.5 – 3.75 LPM) up to 10 – 150 GPM (50 to 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: NPTF and BSPP
- Pressure up to 6000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: .876 specific gravity, 140 SUS (32 cSt) hydraulic oil
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt)
- No flow straighteners or special piping required
- Valve: 1/2, 3/4 and 1 inch series – needle valve; 1-1/4 and 1-1/2 inch series – ball valve
- Pressure gauge, glycerin dampened: 0 – 3500 psi (0 – 240 bar) for aluminum & brass meters; 0 – 6000 psi (0 – 400 bar) for stainless steel meters
- Includes: Basic flow meter, Control valve & Pressure gauge
- Optional: Special scales available & Reverse flow by-pass

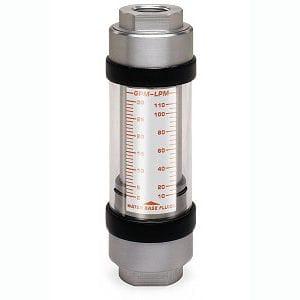

High Temperature
- Flow ranges: 0.1 – 1.0 GPM (0.5 – 3.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 500 °F (260 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: .876 specific gravity, 140 SUS (32 cSt) hydraulic oil
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt)
- Optional: Special scales available & Reverse flow by-pass

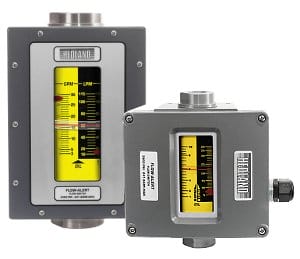

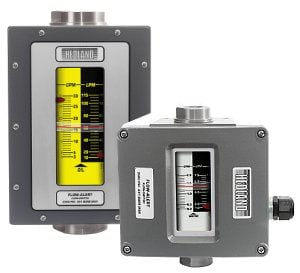

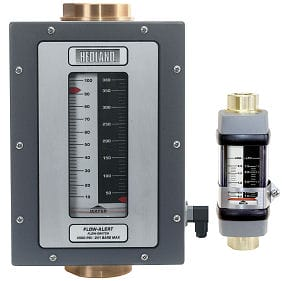

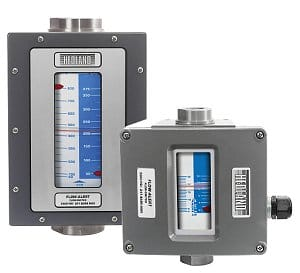

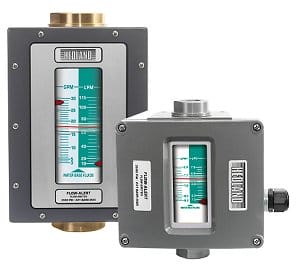

Flow-Alert™ Micro Switch
- Automatically signals alarm if flow is too high or too low
- Automatically opens or closes electrical circuits
- Triggers warning lights, buzzers and other devices
- Shuts down pumps and/or other equipment to protect your operation against permanent damage
- Flow ranges: 0.02 – 0.2 (0.1 – 0.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: .876 specific gravity
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Micro Switch: Single (1) or Double (2) prewired single-pole, double-throw (SPDT)
- Connection: Pig-tail conductor (standard) with water-tight strain relief
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Optional: Special scales available

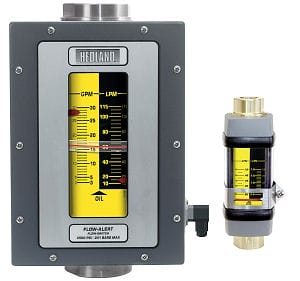

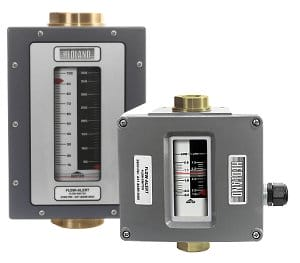

Flow-Alert™ Reed Switch
- No mechanical linkage
- Provides output to signal alarm if flow is too high or too low
- Flow ranges: 0.02 – 0.2 GPM (0.1 – 0.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: .876 specific gravity
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Reed Sitch: Single(1) or Double(2) prewired single-pole, single-throw (SPST-NO) normally open or single-pole, single-throw (SPST-NC) normally closed
- Connection: 4 pin (Protection Class IP65)
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Optional: Special scales available

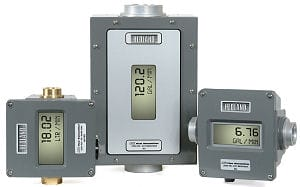

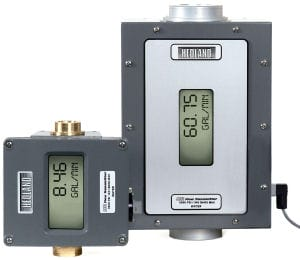

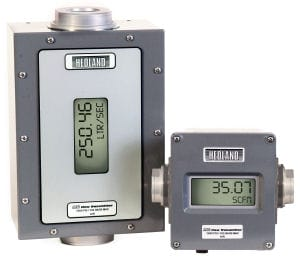

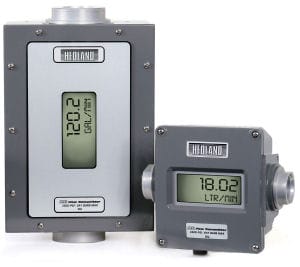

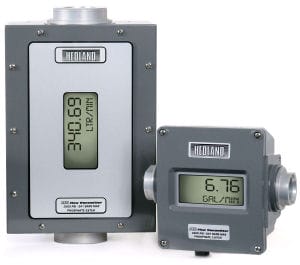

MR Flow Transmitter
- Operate as part of a totally integrated electronic process control/data acquisition system
- Digital flow rate and total flow indication
- Proportional analog outputs for electronic integration
- Non-contact sensor electronics
- In-field compensation for specific gravity and viscosity
- Flow ranges: 0.1 – 1.0 (0.5 – 3.75 LPM) up to 10 – 150 GPM (5 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: .876 specific gravity
- Install in any position
- No flow straighteners or special piping required
- Insensitive to shock and vibration
- Good viscosity stability
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP 52/54)
- Connection: 4-pin
- Electrical: 10-30 Vdc power supply or loop-powered on 4-20 mA current
- Outputs: Factory calibrated, field selectable 4-20 mA, 0-5 Vdc and 0-10 Vdc
- CE compliant – exceeds US and meets European standards for EMI/EMC
- US Patent 7,130,750
- Includes: Basic flow meter with flow transmitter output

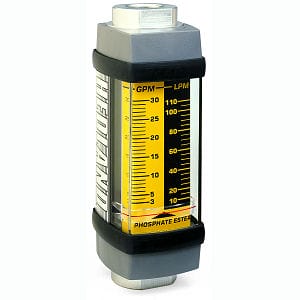

Phosphate Ester Fluids

Basic Flow Meter
- Flow ranges: 0.02 – 0.2 GPM (0.1 – 0.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF, BSPP, Code 62, 4-bolt flanged
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.18 specific gravity, 140 SUS (32 cSt) hydraulic oil
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt)
- Consult factory for other viscosities
- Optional:Special scales available & Reverse flow by-pass
- CAUTION: Skydrol® & Fyrquel® oil may require a Pyrex® guard.

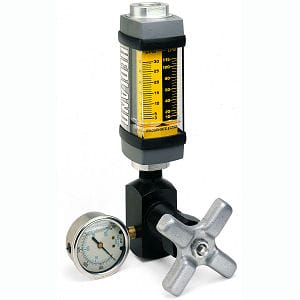

Test Kit
- Flow ranges: 0.1 – 1.0 GPM (0.5 – 3.75 LPM) up to 10 – 150 GPM (50 to 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: NPTF and BSPP
- Pressure up to 6000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: .876 specific gravity, 140 SUS (32 cSt) hydraulic oil
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt)
- No flow straighteners or special piping required
- Valve: 1/2, 3/4 and 1 inch series – needle valve; 1-1/4 and 1-1/2 inch series – ball valve
- Pressure gauge, glycerin dampened: 0 – 3500 psi (0 – 240 bar) for aluminum & brass meters; 0 – 6000 psi (0 – 400 bar) for stainless steel meters
- Includes: Basic flow meter, Control valve & Pressure gauge
- Optional: Special scales available & Reverse flow by-pass

High Temperature
- Flow ranges: 0.1 – 1.0 GPM (0.5 – 3.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 500 °F (260 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.18 specific gravity, 140 SUS (32 cSt) hydraulic oil
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt)
- Consult factory for other viscosities
- Optional: Special scales available & Reverse flow by-pass

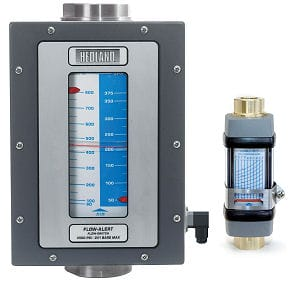

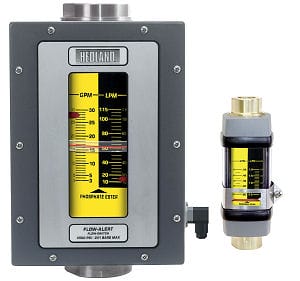

Flow-Alert™ Micro Switch
- Automatically signal alarm if flow is too high or too low
- Automatically opens or closes electrical circuits
- Triggers warning lights, buzzers and other devices
- Shuts down pumps and/or other equipment to protect your operation against permanent damage
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Temperature up to 240 °F (116 °C)
- Pressure up to 6,000 psi (414 bar) maximum
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.18 specific gravity
- Construction: Aluminum, brass and T303 stainless steel
- Flow ranges: 0.02 – 0.2 GPM (0.1 – 0.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF, and BSPP
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Micro Switch: Single (1) or Double (2) prewired single-pole, double-throw (SPDT)
- Connection: Pig-tail conductor (standard) with water-tight strain relief
- Includes: Basic flow meter with Flow-Alert™ flow switches
- Optional: Special scales available

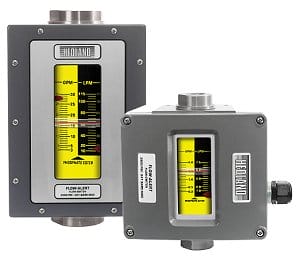

Flow-Alert™ Reed Switch
- No mechanical linkage
- Provides output to signal alarm if flow is too high or too low
- Flow ranges: 0.02 – 0.2 GPM (0.1 – 0.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF, and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.18 specific gravity
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Reed Switch: Single(1) or Double(2) prewired single-pole, single-throw (SPST-NO) normally open or single-pole, single-throw (SPST-NC) normally closed
- Connection: 4 pin (Protection Class IP65)
- Includes: Basic flow meter with Flow-Alert™ flow switches
- Optional: Special scales available

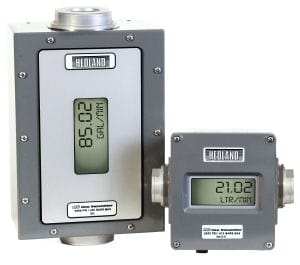

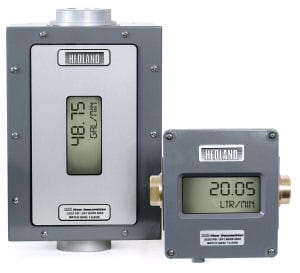

MR Flow Transmitter
- Operate as part of a totally integrated electronic process control/data acquisition system
- Digital flow rate and total flow indication
- Proportional analog outputs for electronic integration
- Non-contact sensor electronics
- In-field compensation for specific gravity and viscosity
- Flow ranges: 0.1 – 1.0 GPM (0.5 – 3.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.18 specific gravity
- Install in any position
- No flow straighteners or special piping required
- Insensitive to shock and vibration
- Good viscosity stability
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP 52/54)
- Connection: 4-pin
- Electrical: 10-30 Vdc power supply or loop-powered on 4-20 mA current
- Outputs: Factory calibrated, field selectable 4-20 mA, 0-5 Vdc and 0-10 Vdc
- CE compliant – exceeds US and meets European standards for EMI/EMC
- US Patent 7,130,750
- Includes: Basic flow meter with flow transmitter output
Water-Based Fluids

Basic Flow Meter
- Flow ranges: 0.02 – 0.2 GPM (0.1 – 3.75 LPM) up to 20 – 275 GPM (100 – 1000 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 3 inch ports
- Ports: SAE, NPTF, BSPP, Code 61 and Code 62, 4-bolt flanged
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity for water-based emulsions
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt)
- Consult factory for other viscosities
- Optional: Special scales available & Reverse flow by-pass
- CAUTION: Not recommended for water only applications

Test Kit
- Flow ranges: 0.1 – 1.0 GPM (0.5 – 3.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity for water-based emulsions
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt)
- Consult factory for other viscosities
- Valve: 1/2, 3/4 and 1 inch series – needle valve & 1-1/4 and 1-1/2 inch series – ball valve
- Pressure gauge, glycerin dampened: 0 – 3500 psi (0 – 240 bar) for aluminum and brass meters; 0 – 6000 psi (0 – 400 bar) for stainless steel meters
- Includes: Basic flow meter, Control valve & Pressure gauge
- Optional: Special scales available & Reverse flow by-pass
- CAUTION: Not recommended for water only applicationsa

High Temperature
- Flow ranges: 0.1 – 1.0 GPM (0.5 – 3.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 500 °F (260 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity for water-based emulsions
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt)
- Consult factory for other viscosities
- Optional: Special scales available & Reverse flow by-pass
- CAUTION: Not recommended for water only applications

Flow-Alert™ Micro Switch
- Automatically signals alarm if flow is too high or too low
- Automatically opens or closes electrical circuits
- Triggers warning lights, buzzers and other devices
- Shuts down pumps and/or other equipment to protect your operation against permanent damage
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Temperature up to 240 °F (116 °C)
- Pressure up to 6,000 psi (414 bar) maximum
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Construction: Aluminum, brass and T303 stainless steel
- Flow ranges: 0.02 – 0.2 GPM (0.1 – 0.75 LPM); up to 10 – 150 GPM (50 – 560 LPM)
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Micro Switch: Single(1) or Double(2) prewired single-pole, double-throw (SPDT
- Connection: Pig-tail conductor (standard) with water-tight strain relief
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Optional: Special scales available

Flow-Alert™ Reed Switch
- No mechanical linkage
- Provides output to signal alarm if flow is too high or too low
- Flow ranges: 0.02 – 0.2 GPM (0.1 – 0.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Reed Switch: Single(1) or Double(2) prewired single-pole, single-throw (SPST-NO) normally open or single-pole, single-throw (SPST-NC) normally closed
- Connection: 4 pin (Protection Class 65)
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Optional: Special scales available

MR Flow Transmitter
- Operate as part of a totally integrated electronic process control/data acquisition system
- Digital flow rate and total flow indication
- Proportional analog outputs for electronic integration
- Non-contact sensor electronics
- In-field compensation for specific gravity
- Flow ranges: 0.1 – 1.0 GPM (0.5 – 3.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Install in any position
- No flow straighteners or special piping required
- Insensitive to shock and vibration
- Good viscosity stability
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP 52/54)
- Connection: 4-pin
- Electrical: 10-30 Vdc power supply or loop-powered on 4-20 mA current
- Output: Factory calibrated, field selectable 4-20 mA, 0-5 Vdc and 0-10 Vdc
- CE compliant – exceeds US and meets European standards for EMI/EMC
- US Patent 7,130,750
- Includes: Basic flow meter with flow transmitter output
Water and Other Fluids

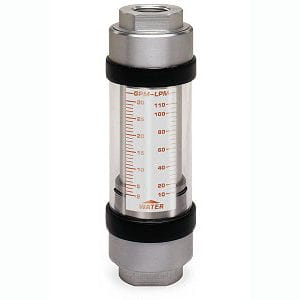

Basic Flow Meter
- Flow ranges: 0.02 – 0.2 GPM (0.1 – 0.75 LPM) up to 20 – 275 GPM (100 to 1000 LPM)
- Construction: Brass and T303 stainless steel
- Sizes: 1/4 to 3 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Optional: Special scales available

MR Flow Transmitter
The NEW Hedland MR Flow Transmitter is a microprocessor-based, variable area flow meter that provides a digital display of both flow rate and total accumulated flow. The flow rate and total flow can be displayed in any of the user selectable measurement units.
All MR Flow Transmitters come pre-calibrated from the factory. However, the unit may be adjusted to meet specific system requirements via the user configurable soft switches. Calibration parameters for specific gravity compensation in water or petroleum based fluids and for specific gravity, pressure and temperature compensation for pneumatic applications are included. All meters provide both voltage (0-5 Vdc and 0-10 Vdc) and current loop (4-20 mA) outputs allowing for easy electronic integration.
- Digital display of rate and total flow
- 10 point linearization
- 4-20 mA loop-powered
- 0-5 or 0-10 Vdc outputs
- In-field compensation for
- Specific gravity and viscosity for petroleum-based fluids
- Specific gravity for water-based fluids
- Pressure, temperature, and specific gravity compensation for air/gas applications
- Software configured
- No magnetic coupling or mechanical linkages
- Absolute linear positioning sensing
- High reliability and accuracy
- Suitable for rugged environments
- Insensitive to shock and vibration
- US Patent 7,130,750

High Temperature
- Flow ranges: 0.1 – 1.0 GPM (0.5 – 3.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 500 °F (260 °C)
- Accuracy ±2% full scale
- Repeatability ± 1%
- Standard calibration: 1.0 specific gravity
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt)
- Consult factory for other viscosities
- Optional: Special scales available

Flow-Alert™ Micro Switch
- Automatically signals alarm if flow is too high or too low
- Automatically opens or closes electrical circuits
- Triggers warning lights, buzzers and other devices
- Shuts down pumps and/or other equipment to protect your operation against permanent damage
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Temperature up to 240 °F (116 °C)
- Pressure up to 6,000 psi (414 bar) maximum
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Flow ranges: 0.02 – 0.2 GPM (0.1 – 0.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Construction: Brass and T303 stainless steel
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Micro Switch: Single(1) or Double(2) prewired single-pole, double-throw (SPDT
- Connection: Pig-tail conductor (standard) with water-tight strain relief
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Options: Special scales available

Flow-Alert™ Reed Switch
- No mechanical linkage
- Provides output to signal alarm if flow is too high or too low
- Flow ranges: 0.02 – 0.2 GPM (0.1 – 0.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Reed switch options: Single(1) or Double(2) prewired single-pole, single-throw (SPST-NO) normally open or single-pole, single-throw (SPST-NC) normally closed
- Connection: 4 pin (Protection Class IP65)
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Options: Special scales available

MR Flow Transmitter
- Operate as part of a totally integrated electronic process control/data acquisition system
- Digital flow rate and total flow indication
- Proportional analog outputs for electronic integration
- Non-contact sensor electronics
- In-field compensation for specific gravity
- Flow ranges: 0.1 – 1.0 GPM (0.5 – 3.75 LPM) up to 10 – 150 GPM (50 – 560 LPM)
- Construction: Brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ± 1%
- Standard calibration: 1.0 specific gravity
- Install in any position
- No flow straighteners or special piping required
- Insensitive to shock and vibration
- Good viscosity stability
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP 52/54)
- Connection: 4-pin
- Electrical: 10-30 Vdc power supply or loop-powered on 4-20 mA current
- Output: Factory calibrated, field selectable 4-20 mA, 0-5 Vdc and 0-10 Vdc
- CE compliant – exceeds US and meets European standards for EMI/EMC
- US Patent 7,130,750
- Includes: Basic flow meter with flow transmitter output
API Oil/Caustic & Corrosive Liquids

Basic Flow Meter
- Flow ranges: 0.1 – 1.0 GPM (0.5 – 3.75 LPM) up to 10 – 100 GPM (50 – 380 LPM)
- Construction: T316 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ± 1%
- Standard calibration:
- 0.876 specific gravity for oil
- 1.0 specific gravity for water
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Optional: Special scales available & Hostile environment kit for corrosive vapors and high temp

Flow-Alert™ Micro Switch
- Automatically signals alarm if flow is too high or too low
- Automatically opens or closes electrical circuits
- Triggers warning lights, buzzers and other devices
- Shuts down pumps and/or other equipment to protect your operation against permanent damage
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Temperature up to 240 °F (116 °C)
- Pressure up to 6,000 psi (414 bar) maximum
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: .876 specific gravity for oil; 1.0 specific gravity for water
- Construction: T316 stainless steel
- Flow ranges: 0.2 – 2.0 GPM (1.0 – 7.5 LPM) up to 10 – 100 GPM (50 – 380 LPM)
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Micro Switch: Single(1) or Double(2) prewired single-pole, double-throw (SPDT
- Connection: Pig-tail conductor (standard) with water-tight strain relief
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Optional: Special scales available

Flow-Alert™ Reed Switch
- No mechanical linkage
- Provides output to signal alarm if flow is too high or too low
- Flow ranges: 0.2 – 2.0 GPM (1.0 – 7.5 LPM) up to 10 – 100 GPM (50 – 380 LPM)
- Construction: T316 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: .876 specific gravity for oil; 1.0 specific gravity for water
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Good viscosity stability
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Reed switch options: Single(1) or Double(2) prewired single-pole, single-throw (SPST-NO) normally open or single-pole, single-throw (SPST-NC) normally closed
- Connection: 4 pin (Protection Class IP65)
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Optional: Special scales available

MR Flow Transmitter
- Operate as part of a totally integrated electronic process control/data acquisition system
- Digital flow rate and total flow indication
- Proportional analog outputs for electronic integration
- Non-contact sensor electronics
- In-field compensation for – Specific gravity and viscosity for petroleum-based fluids; Specific gravity for water-based fluids
- Flow ranges: 0.2 – 2.0 GPM (1.0 – 7.5 LPM) up to 10 – 100 GPM (50 – 380 LPM)
- Construction: T316 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 6,000 psi (414 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: .876 specific gravity for oil; 1.0 specific gravity for water
- Install in any position
- No flow straighteners or special piping required
- Insensitive to shock and vibration
- Good viscosity stability
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP 52/54)
- Connection: 4-pin
- Electrical: 10-30 Vdc power supply or loop-powered on 4-20 mA current
- Output: Factory calibrated, field selectable 4-20 mA, 0-5 Vdc and 0-10 Vdc
- CE compliant – exceeds US and meets European standards for EMI/EMC
- US Patent 7,130,750
- Includes: Basic flow meter with flow transmitter output
Air/Caustic & Corrosive Gases

Basic Flow Meter
- Flow ranges: 2 – 20 SCFM (1 – 9 L/SEC) up to 80 – 800 SCFM (50 – 350 L/SEC)
- Construction: T316 stainless steel
- Sizes: 1/4 to 1/12 inch ports
- Ports: NPTF and BSPP
- Pressure up to 1,500 psi (103 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Optional: Special scales available & Hostile environment kit for corrosive vapors and high temp

Flow-Alert™ Micro Switch
- Automatically signals alarm if flow is too high or too low
- Automatically opens or closes electrical circuits
- Triggers warning lights, buzzers and other devices
- Shuts down pumps and/or other equipment to protect your operation against permanent damage
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Temperature up to 240 °F (116 °C)
- Pressure up to 1,500 psi (103 bar) maximum
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Construction: T316 stainless steel
- Flow ranges: 3 – 25 SCFM (2 – 12 L/SEC) up to 80 – 800 SCFM (50 – 350 L/SEC)
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Micro Switch: Single(1) or Double(2) prewired single-pole, double-throw (SPDT)
- Connection: Pig-tail conductor (standard) with water-tight strain relief
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Optional: Special scales available

Flow-Alert™ Reed Switch
- No mechanical linkage
- Provides output to signal alarm if flow is too high or too low
- Flow ranges: 3 – 25 SCFM (2 – 12 L/SEC) up to 80 – 800 SCFM (50 – 350 L/SEC)
- Construction: T316 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 1,500 psi (103 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Reed switch options: Single(1) or Double(2) prewired single-pole, single-throw (SPST-NO) normally open or single-pole, single-throw (SPST-NC) normally closed
- Connection: 4 pin (Protection Class IP65)
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Optional: Special scales available

MR Flow Transmitter
- Operate as part of a totally integrated electronic process control/data acquisition system
- Digital flow rate and total flow indication
- Proportional analog outputs for electronic integration
- Non-contact sensor electronics
- In-field compensation for – specific gravity, pressure and temperature
- Flow ranges: 3 – 25 SCFM (2 – 12 L/SEC) up to 80 – 800 SCFM (50 – 350 L/SEC)
- Construction: T316 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 1,500 psi (103 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Install in any position
- No flow straighteners or special piping required
- Insensitive to shock and vibration
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP 52/54)
- Connection: 4-pin
- Electrical: Loop powered on 4-20 mA current
- Output: Factory calibrated, field selectable 4-20 mA, 0-5 Vdc and 0-10 Vdc
- CE compliant – exceeds US and meets European standards for EMI/EMC
- US Patent 7,130,750
- Includes: Basic flow meter with flow transmitter output
Air and Compressed Gases

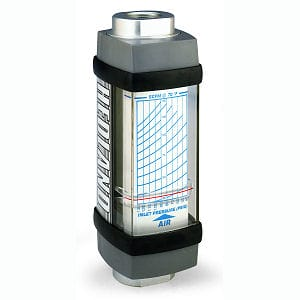

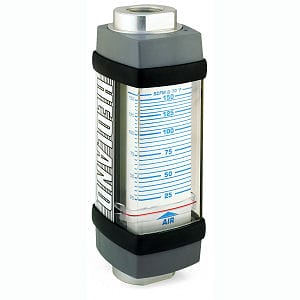

Basic Flow Meter
- Flow ranges: 0.5 – 5.0 SCFM (0.2 – 2.2 L/SEC) up to 200 – 2200 SCFM (75 – 1130 L/SEC)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 3 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 1,000 psi (69 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Optional: Special scales available; EP option, extended inlet cap with plugged pressure gauge port; EG option, extended inlet cap with pressure gauge installed

Test Kit
- Flow ranges: 0.5 – 5.0 SCFM (0.2 – 2.2 L/SEC) up to 100 – 1000 SCFM (50 – 475 L/SEC)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: NPTF and BSPP
- Pressure up to 600 psi (41 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Direct reading
- Install in any position
- 360° rotatable guard/scale
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Brass ball valve with chrome-plated brass ball and Teflon® seals
- Pressure gauge, glycerin dampened: 0 – 160 psi (0 – 10 bar)
- Includes: Basic flow meter, Control valve & Pressure gauge
- Optional: Special scales available; Silencer

Flow-Alert™ Micro Switch
- Automatically signals alarm if flow is too high or too low
- Automatically opens or closes electrical circuits
- Triggers warning lights, buzzers and other devices
- Shuts down pumps and/or other equipment to protect your operation against permanent damage
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Temperature up to 240 °F (116 °C)
- Pressure up to 1,000 psi (69 bar) maximum
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Construction: Aluminum, brass and T303 stainless steel
- Flow ranges: 0.5 – 5.0 SCFM (0.2 – 2.2 L/SEC) up to 100 – 1000 SCFM (50 – 475 L/SEC)
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Micro Switch: Single(1) or Double(2) prewired single-pole, double-throw (SPDT)
- Connection: Pig-tail conductor (standard) with water-tight strain relief
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Optional: Special scales available

Flow-Alert™ Reed Switch
- No mechanical linkage
- Provides output to signal alarm if flow is too high or too low
- Flow ranges: 0.5 – 5.0 SCFM (0.2 – 2.2 L/SEC) up to 100 – 1000 SCFM (50 – 475 L/SEC)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 1,000 psi (69 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Install in any position
- Easier to read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP65)
- Reed switch options: Single(1) or Double(2) prewired single-pole, single-throw (SPST-NO) normally open or single-pole, single-throw (SPST-NC) normally closed
- Connection: 4 pin (Protection Class IP65)
- Includes: Basic flow meter with Flow-Alert™ flow switch
- Optional: Special scales available

MR Flow Transmitter
- Operate as part of a totally integrated electronic process control/data acquisition system
- Digital flow rate and total flow indication
- Proportional analog outputs for electronic integration
- Non-contact sensor electronics
- In-field compensation for – specific gravity, pressure and temperature
- Flow ranges: 3 – 25 SCFM (2 – 12 L/SEC) up to 100 – 1000 SCFM (50 – 475 L/SEC)
- Construction: Aluminum, brass and T303 stainless steel
- Sizes: 1/4 to 1-1/2 inch ports
- Ports: SAE, NPTF and BSPP
- Pressure up to 1,000 psi (69 bar) maximum
- Temperature up to 240 °F (116 °C)
- Accuracy ±2% full scale
- Repeatability ±1%
- Standard calibration: 1.0 specific gravity
- Install in any position
- No flow straighteners or special piping required
- Insensitive to shock and vibration
- Temperature up to 240 °F (116 °C)
- Pressure up to 1,000 psi (69 bar) maximum
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens
- Rating: NEMA 12 and 13 (IP 52/54)
- Connection: 4-pin
- Electrical: Loop powered on 4-20 mA current
- Output: Factory calibrated, field selectable 4-20 mA, 0-5 Vdc and 0-10 Vdc
- CE compliant – exceeds US and meets European standards for EMI/EMC
- US Patent 7,130,750
- Includes: Basic flow meter with flow transmitter output
Digital Displays

Digital Display
The F6700/F6750 series digital display with integrated signal processor accepts a 4-20 mA or 0-10 VDC signal from Hedland’s Flow Transmitters. In addition to offering a remote digital display, optional plug-in cards are available to provide analog output, digital communications, and setpoint alarms. Each display will accept up to one card for each of these functions.
Applications:
- Remote flow meter monitoring
- Totalizing
- Alarm Processing
- Process Control
Features:
- 5-digit rate display
- 5-digit totalizer with 4-digit overcarry
- Dual inputs, 4-20 mA or 0-10 VDC
- Built-in transmitter power supply
- Three plug-in card slots
- Optional setpoint alarm cards
- AC and DC powered versions
- NEMA 4X/IP65 rated
New Products

MR Flow Transmitter

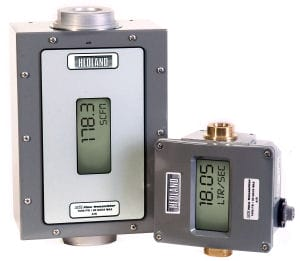

The NEW Hedland MR Flow Transmitter is a microprocessor-based, variable area flow meter that provides a digital display of both flow rate and total accumulated flow. The flow rate and total flow can be displayed in any of the user selectable measurement units.
All MR Flow Transmitters come pre-calibrated from the factory. However, the unit may be adjusted to meet specific system requirements via the user configurable soft switches. Calibration parameters for specific gravity compensation in water or petroleum based fluids and for specific gravity, pressure and temperature compensation for pneumatic applications are included. All meters provide both voltage (0-5 Vdc and 0-10 Vdc) and current loop (4-20 mA) outputs allowing for easy electronic integration.
- Digital display of rate and total flow
- 10 point linearization
- 4-20 mA loop-powered
- 0-5 or 0-10 Vdc outputs
- In-field compensation for
- Specific gravity and viscosity for petroleum-based fluids
- Specific gravity for water-based fluids
- Pressure, temperature, and specific gravity compensation for air/gas applications
- Software configured
- No magnetic coupling or mechanical linkages
- Absolute linear positioning sensing
- High reliability and accuracy
- Suitable for rugged environments
- Insensitive to shock and vibration
- US Patent 7,130,750
