Turbine Flow Meters (Water/Water-Based Fluids)
Turbine Meters
- Flow ranges: 0.6 – 3.0 GPM (2.27 – 11.36 LPM) up to 500 – 5000 GPM (1893 – 18927 LPM)
- Rugged contruction: Body: T316 Stainless steel; Rotor: T416 Stainless steel; Internal supports: Tungsten carbide; Bearings: Tungsten carbide journals; Retaining rings: T303 Stainless steel; Pick-up: Magnetic, Standard
- Meter bore sizes from 3/8 to 10 inch
- Ports: 1/2 to 2 inch NPT; 3 to 10 inch Victaulic® grooved ends
- Pressure: 5,000 psi (345 bar) maximum
- Temperature: Standard: 330 °F (165 °C) maximum; High Temp: 450 °F (232 °C) maximum
- Accuracy within ±1% of reading
- Standard calibration: 1.0 specific gravity for water and water-based liquids
- Magnetic pick-up output: 30 millivolts to 3 volts – peak-to-peak
Electronic Readouts

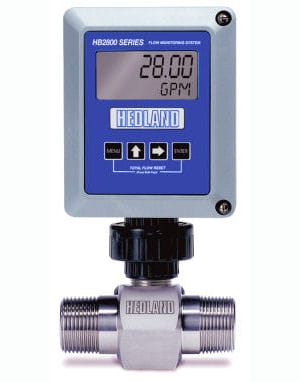

The Hedland Model HB2800 is a state-of-the-art flow monitor designed to be utilized with all Hedland HB Series turbine flow sensors. The HB2800 comes pre-calibrated by the factory when ordered with a Hedland HB Series turbine flow sensor, or the monitor may be configured in the field. The HB2800 may also be used with almost any flow sensor that outputs a low-amplitude AC signal.
Features Include:
- Microprocessor-based
- Battery (1.5 VDC) or loop-powered (4-20 mA) versions
- Extra large rate and total display
- Meter, remote, panel, or swivel mount options
- NEMA 4X/CSA Type 4 enclosure
- Intrinsically safe
- Explosion-proof model available

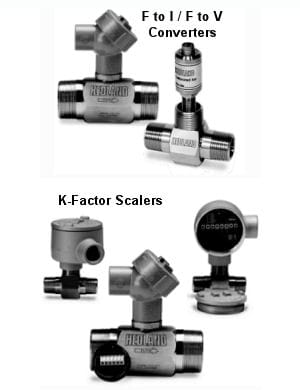

Electronic Accessories
F-I Analog Transmitter
- Converts frequency outputs to 4-20 mA output
- Cannister or condulet models available
F-V Analog Voltage Transmitter
- Converts frequency outputs to 0-5 Vdc output
- Cannister or condulet models available
- Requires 10-30 Vdc power supply
K-factor Scaler
- Scales turbine meter output to desired engineering unit
- Amplifies turbine meter pulse output
- Converts frequency outputs into recognizable units for PLCs and other devices
- NEMA 4X enclosure
- Requires 8.5-30 Vdc power supply
Cables
- Standard 10 foot cables
- Variety of connectors
