Strokemaster® Inductive Cylinder Sensors
Balluff’s Strokemaster® cylinder-position sensors provide precision end-of-stroke sensing for hydraulic cylinders. The sensor body allows 304° of rotation to eliminate the hassle of postinstallation cable management, which in some competitive designs requires unbolting the flange and breaking the hydraulic seal.
A high-pressure, inductive proximity sensor, the Strokemaster provides a 2mm (0.08″) sensing range to detect the “spud” of hydraulic/ pneumatic cylinders and indicate fully retracted or extended position. It mounts with two socket-head cap screws and seals with a Viton O-ring. Withstanding cylinder pressures up to 3000 PSI (207 bar), the embeddable design keeps most of the switch protected within the cylinder, with only a 0.62″ (16 mm) high housing exposed outside.

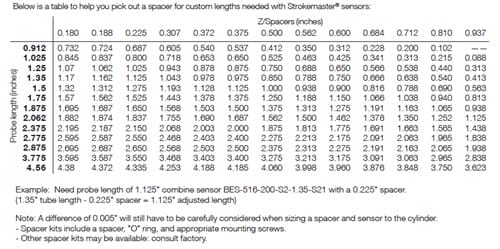

Strokemaster sensors are available in 3-wire DC and 2-wire AC/DC versions, both with mini or micro connectors. Switching frequency is 50 Hz for the AC/DC versions. All units are weld-field immune, short-circuit, and reverse polarity protected. They fit all popular cylinder designs, with standard available probe lengths of 0.912″ – 4.560″ (23.165mm – 115.8mm). Custom probe lengths can be achieved by using factory spacer kits. Probes are made of stainless steel with a high-strength ceramic face. Both DC and AC/DC sensors have all-metal housings. The Strokemaster sensor is CE-certified, and its housing is sealed to IP67 requirements.
Strokemaster® DC Sn 2 mm
Flush Mounting; Rated Operating Distance Sn: 2mm, Assured Operating Distance Sa: 0 to 1.6 mm
Strokemaster® AC/DC Sn 2 mm
Flush Mounting; Rated Operating Distance Sn: 2mm, Assured Operating Distance Sa: 0 to 1.6 mm

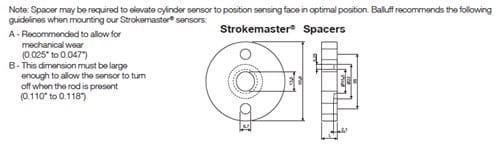

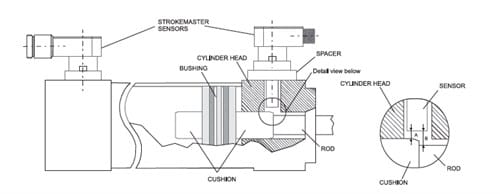

Strokemaster® Installation
