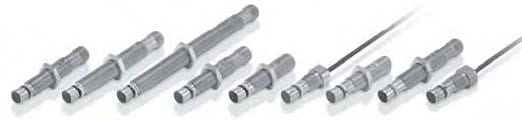

Balluff offers a world-class line of pressure-rated inductive cylinder sensors to service high-pressure applications. Designed to withstand severe duty, Balluff high-pressure sensors deliver reliable switching performance under demanding industrial conditions.
Corrosion-resistant housing materials, high-strength ceramic sensing faces, and special sealing techniques allow dependable service up to 350 bar or 500 bar according to the sensor type.
All Balluff high-pressure sensors are rated for continuous operation in ambient temperatures up to 90° C, and some versions are also high-temperature rated up to 120° C.
DC 3-Wire M8
Housing Size: M8x1, Mounting: Flush, Rated Operating Distance Sn: 1.5 mm, Assured Operating Distance Sa: 0 to 1.2 mm
DC 3-Wire M12
Housing Size: M12x1, Mounting: Flush, Rated Operating Distance Sn: 1.5 mm, Assured Operating Distance Sa: 0 to 1.2 mm
DC 3-Wire M16
Housing Size: M16x1, Mounting: Flush, Rated Operating Distance Sn: 1.5 mm, Assured Operating Distance Sa: 0 to 1.2 mm
DC 3-Wire M18
Housing Size: M18x1, Mounting: Flush, Rated Operating Distance Sn: 1.5 mm, Assured Operating Distance Sa: 0 to 1.2 mm
Housing Size: M18x1, Mounting: Flush, Rated Operating Distance Sn: 3 mm, Assured Operating Distance Sa: 0 to 2.4 mm
DC 3-Wire Ø 10 mm, Ø 36 mm
Housing Size: Ø 10 mm/Ø 36 mm, Mounting: Flush, Rated Operating Distance Sn: 1.5 mm, Assured Operating Distance Sa: 0 to 1.2 mm
Extended Temperature DC 3-Wire M12
Housing Size: M12x1, Mounting: Flush, Rated Operating Distance Sn: 1.5 mm, Assured Operating Distance Sa: 0 to 1.2 mm
Extended Temperature DC 3-Wire M18
Housing Size: M18x1, Mounting: Flush, Rated Operating Distance Sn: 1.5 mm, Assured Operating Distance Sa: 0 to 1.2 mm
Extended Range M12
Housing Size: M12x1, Mounting: Flush, Rated Operating Distance Sn: 2.5 mm, Assured Operating Distance Sa: 0 to 2 mm
